KDAE PISTON SEAL



DESCRIPTION

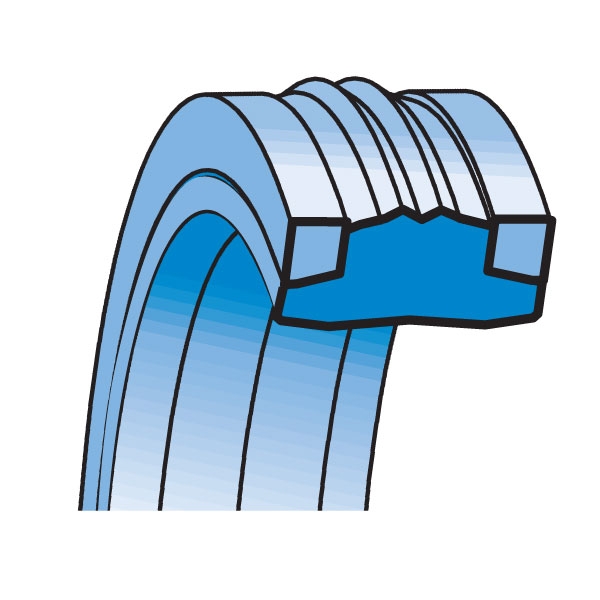

Amongst the compact piston seal series, the KDAE Piston Seal type is designed with a central polyurethane element and two side anti-extrusion rings. The assembly between the polyurethane element with high elastic modulus and the two elastomer rings with high hardness enhances stability of the sealing even at heavy duty applications. Compared to rubber, the abrasion is also reduced due to the use of polyurethane, therefore extending the service life of the seal in the system. Abrasion is also considerably reduced, thus facilitating the construction of the seat and bores, due to the special geometry of the seal itself better performing than NBR.



TECHNICAL DATA

Pressure: from 0 to 400 bar

Speed: <0.8 m/s

Temperature: from –30°C to +100°C with peaks up to +110°C

Fluids: mineral oils



MATERIAL

The materials used for the construction of this seal type are as follows: – polyurethane for the central element, hardness 93 Sh A (C0) – the backup rings in TPE elastomer 63 Shore D (L2). Compound reference: CR



ASSEMBLY

This seal can be assembled both in closed groove on a monobloc piston and in open groove on a two-part piston. The piston must not have machining scores which might damage the sealing during the installation. Recommended to grease the piston to facilitate mounting.

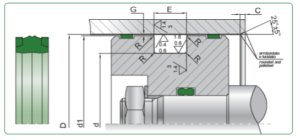

DRAWING KDAE PISTON SEAL

kdae piston seal artic seals



ARTICLES KDAE PISTON SEAL

Dh9 dh9 E+0,2 C ART  /  ITEM
50,0 36,0 9,0 4,0 KDAE 0500 0360 090 CR
50,0 38,0 10,0 4,0 KDAE 0500 0380 100 CR
55,0 41,0 9,0 4,0 KDAE 0550 0410 090 CR
60,0 46,0 9,0 4,0 KDAE 0600 0460 090 CR
63,0 48,0 11,0 4,0 KDAE 0630 0480 110 CR
63,0 51,0 10,0 4,0 KDAE 0630 0510 100 CR
65,0 50,0 11,0 4,0 KDAE 0650 0500 110 CR
70,0 53,0 14,0 4,0 KDAE 0700 0530 140 CR
70,0 55,0 11,0 4,0 KDAE 0700 0550 110 CR
75,0 60,0 11,0 4,0 KDAE 0750 0600 110 CR
80,0 63,0 14,0 4,0 KDAE 0800 0630 140 CR
80,0 65,0 11,0 4,0 KDAE 0800 0650 110 CR
85,0 70,0 11,0 4,0 KDAE 0850 0700 110 CR
90,0 73,0 14,0 5,0 KDAE 0900 0730 140 CR
90,0 75,0 11,0 5,0 KDAE 0900 0750 110 CR
95,0 80,0 11,0 5,0 KDAE 0950 0800 110 CR
100,0 83,0 14,0 5,0 KDAE 1000 0830 140 CR
100,0 85,0 12,5 5,0 KDAE 1000 0850 125 CR
105,0 88,0 14,0 5,0 KDAE 1050 0880 140 CR
105,0 90,0 12,5 5,0 KDAE 1050 0900 125 CR
110,0 93,0 14,0 5,0 KDAE 1100 0930 140 CR
110,0 95,0 12,5 5,0 KDAE 1100 0950 125 CR
115,0 98,0 14,0 5,0 KDAE 1150 0980 140 CR
115,0 100,0 12,5 5,0 KDAE 1150 1000 125 CR
120,0 103,0 14,0 5,0 KDAE 1200 1030 140 CR
120,0 105,0 12,5 5,0 KDAE 1200 1050 125 CR
125,0 108,0 14,0 5,0 KDAE 1250 1080 140 CR
