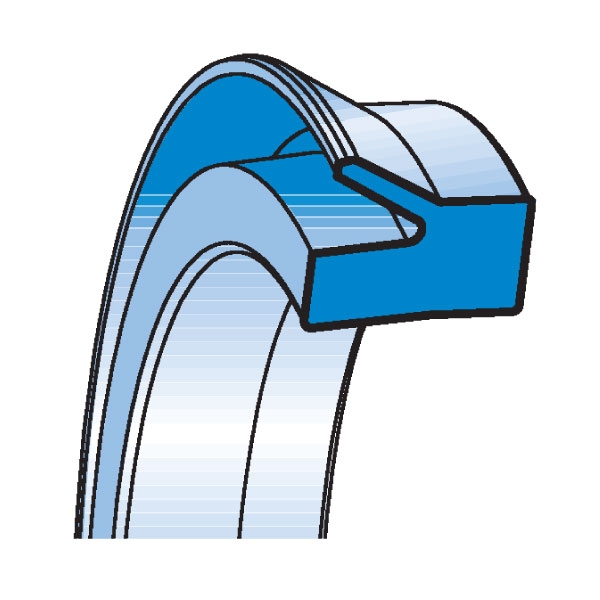

PSP PISTON SEAL



DESCRIPTION

The PSP piston seal has been designed for single and double action pneumatic cylinders. It has a deep groove between the dynamic and the static lip, together with the radii of back-to-back lips, enhances seal sliding, even where there is a lack of environmental lubrication. The reduced dimensions, together with the high flexibility of the material, also facilitate installation in closed grooves.



TECHNICAL DATA

Pressure: <20 bar

Speed: <1 m/s

Temperature: from -30°C up to +90°C

Fluids: air with or with out lubrication, mineral oils or grease



MATERIAL

Standard polyurethane 90 Sh A. Standard compound reference: B0
Alternative polyurethane 85 Sh A. Alternative compound reference: A0



ASSEMBLY

Eliminate any cutting edges and flash in the housing to permit assembly and prevent damage to seals during mounting.

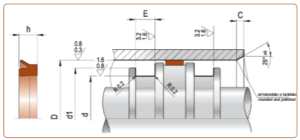

DRAWING PSP PISTON SEAL

psp psiton seal artic seals



ARTICLES PSP PISTON SEAL



Dh11 Dh10 toll h10 d1* h E+0,2 ART/ITEM
6,0 3,0 0/-0.048 5,0 2,00 2,50 PSP 0060 0030 020 B0
8,0 4,0 0/-0.048 7,0 2,55 3,00 PSP 0080 0040 025 B0
8,0 4,8 0/-0.048 7,0 2,30 2,70 PSP 0080 0048 023 B0
8,0 4,8 0/-0.048 7,0 2,55 3,00 PSP 0080 0048 025 B0
10,0 6,0 0/-0.048 9,0 2,55 3,00 PSP 0100 0060 025 B0
12,0 7,0 0/-0.058 11,0 2,55 3,00 PSP 0120 0070 025 B0
13,0 8,0 0/-0.058 12,0 2,55 3,00 PSP 0130 0080 025 B0
14,0 8,0 0/-0.058 13,0 2,55 3,00 PSP 0140 0080 025 B0
15,0 9,0 0/-0.058 14,0 2,55 3,00 PSP 0150 0090 025 B0
16,0 10,0 0/-0.058 15,0 2,55 3,00 PSP 0160 0100 025 B0
17,0 11,0 0/-0.070 16,0 2,55 3,00 PSP 0170 0110 025 B0
18,0 12,0 0/-0.070 17,0 2,55 3,00 PSP 0180 0120 025 B0
20,0 14,0 0/-0.070 19,0 2,55 3,00 PSP 0200 0140 025 B0
20,0 14,0 0/-0.070 19,0 4,00 4,50 PSP 0200 0140 040 B0
20,0 15,5 0/-0.070 19,0 4,00 4,50 PSP 0200 0155 040 BO
22,0 16,0 0/-0.070 21,0 2,55 3,00 PSP 0220 0160 025 B0
24,0 12,0 0/-0.070 23,0 6,50 7,50 PSP 0240 0120 065 BO
24,0 18,0 0/-0.070 23,0 2,55 3,00 PSP 0240 0180 025 B0
25,0 17,0 0/-0.070 24,0 5,50 6,00 PSP 0250 0170 055 B0
25,0 19,0 0/-0.084 24,0 3,25 3,50 PSP 0250 0190 032 B0
25,0 19,0 0/-0.084 24,0 4,00 4,50 PSP 0250 0190 040 B0
27,0 21,0 0/-0.084 26,0 3,25 4,00 PSP 0270 0210 032 BO
28,0 18,0 0/-0.084 27,0 7,00 7,50 PSP 0280 0180 070 B0
28,0 22,0 0/-0.084 27,0 3,25 3,50 PSP 0280 0220 032 B0
30,0 20,0 0/-0.084 29,0 5,00 6,00 PSP 0300 0200 050 BO
30,0 22,0 0/-0.084 29,0 3,25 3,50 PSP 0300 0220 032 B0
32,0 24,0 0/-0.084 31,0 3,25 3,50 PSP 0320 0240 032 B0
32,0 24,0 0/-0.084 31,0 5,50 6,00 PSP 0320 0240 055 B0
35,0 27,0 0/-0.084 34,0 3,25 3,50 PSP 0350 0270 032 B0
36,0 28,0 0/-0.084 35,0 3,25 3,50 PSP 0360 0280 032 B0
38,0 30,0 0/-0.084 37,0 3,25 3,50 PSP 0380 0300 032 B0
38,0 30,0 0/-0.084 37,0 5,50 6,00 PSP 0380 0300 055 B0
40,0 27,3 0/-0.084 39,0 6,40 7,50 PSP 0400 0273 064 BO
40,0 30,0 0/-0.084 39,0 7,00 7,50 PSP 0400 0300 070 B0
40,0 32,0 0/-0.100 39,0 3,25 3,50 PSP 0400 0320 032 B0
42,0 30,0 0/-0.100 41,0 6,00 6,50 PSP 0420 0300 060 B0
42,0 34,0 0/-0.100 41,0 3,25 3,50 PSP 0420 0340 032 B0
45,0 35,0 0/-0.100 44,0 10,00 11,00 PSP 0450 0350 100 BO
45,0 37,0 0/-0.100 44,0 3,25 3,50 PSP 0450 0370 032 B0
50,0 40,0 0/-0.100 49,0 5,00 6,00 PSP 0500 0400 050 BO
50,0 40,0 0/-0.100 49,0 7,00 7,50 PSP 0500 0400 070 B0
50,0 42,0 0/-0.100 49,0 3,25 3,50 PSP 0500 0420 032 B0
52,0 42,0 0/-0.100 51,0 4,25 4,50 PSP 0520 0420 042 B0
55,0 45,0 0/-0.100 54,0 7,00 7,50 PSP 0550 0450 070 B0
58,0 48,0 0/-0.100 57,0 4,25 4,50 PSP 0580 0480 042 B0
60,0 50,0 0/-0.120 59,0 5,00 5,70 PSP 0600 0500 050 B0
60,0 50,0 0/-0.120 59,0 7,00 7,50 PSP 0600 0500 070 B0
63,0 53,0 0/-0.120 62,0 4,25 4,50 PSP 0630 0530 042 B0
63,0 53,0 0/-0.120 62,0 7,00 7,50 PSP 0630 0530 070 B0
65,0 55,0 0/-0.120 64,0 5,00 6,00 PSP 0650 0550 050 BO
65,0 55,0 0/-0.120 64,0 7,00 7,50 PSP 0650 0550 070 B0
68,0 58,0 0/-0.120 67,0 4,70 5,50 PSP 0680 0580 047 B0
70,0 58,0 0/-0.120 69,0 8,50 9,50 PSP 0700 0580 085 B0
75,0 63,0 0/-0.120 74,0 8,50 9,50 PSP 0750 0630 085 B0
80,0 67,3 0/-0.120 79,0 6,35 7,00 PSP 0800 0673 063 B0
80,0 68,0 0/-0.120 79,0 8,50 9,50 PSP 0800 0680 085 B0
80,0 70,0 0/-0.120 79,0 4,25 4,50 PSP 0800 0700 042 B0
85,0 73,0 0/-0.120 84,0 8,50 9,50 PSP 0850 0730 085 B0
90,0 78,0 0/-0.120 89,0 8,50 9,50 PSP 0900 0780 085 B0
90,0 80,0 0/-0.120 89,0 4,25 4,50 PSP 0900 0800 042 B0
100,0 88,0 0/-0.140 99,0 8,50 9,50 PSP 1000 0880 085 B0
100,0 90,0 0/-0.140 99,0 4,25 4,50 PSP 1000 0900 042 B0
110,0 95,0 0/-0.140 109,0 10,00 11,00 PSP 1100 0950 100 B0
120,0 105,0 0/-0.140 119,0 10,00 11,00 PSP 1200 1050 100 B0
125,0 105,0 0/-0.140 124,0 8,25 8,50 PSP 1250 1050 082 B0
125,0 110,0 0/-0.140 124,0 10,00 11,00 PSP 1250 1100 100 B0
140,0 120,0 0/-0.140 139,0 8,25 8,50 PSP 1400 1200 082 B0
160,0 140,0 0/-0.160 159,0 8,25 8,50 PSP 1600 1400 082 B0
160,0 145,0 0/-0.160 159,0 10,00 11,00 PSP 1600 1450 100 B0
180,0 160,0 0/-0.160 179,0 14,00 15,00 PSP 1800 1600 140 B0
200,0 180,0 0/-0.160 199,0 8,25 8,50 PSP 2000 1800 082 B0
200,0 180,0 0/-0.160 199,0 14,00 15,00 PSP 2000 1800 140 B0
250,0 230,0 0/-0.185 249,0 14,00 15,00 PSP 2500 2300 140 B0

* Recommended hook diameter wich could be modified accordingly to mounting demand
