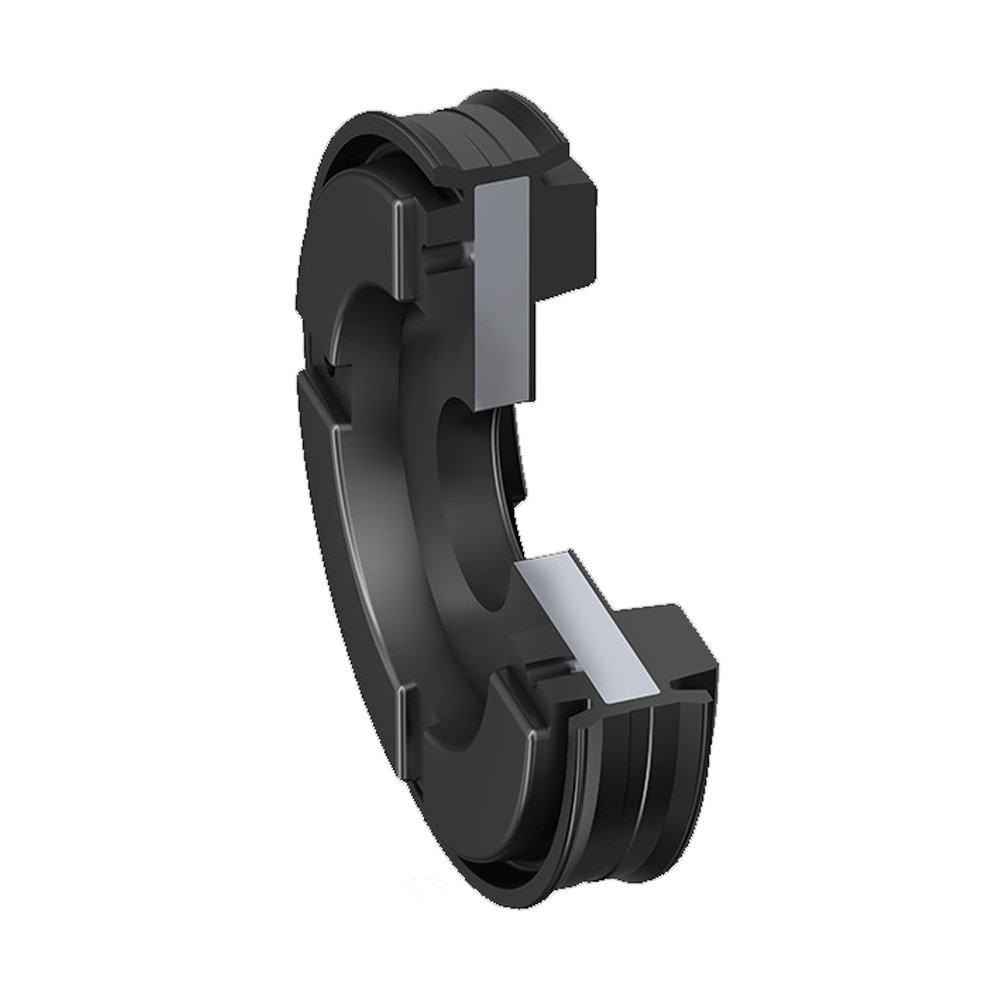

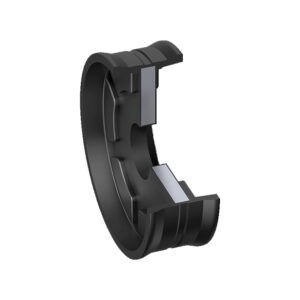

The double-acting Parker Prädifa DP pneumatic piston is a two-component seal design consisting of a metallic supporting element with a vulcanized guiding ridge and sealing lips. The complete piston performs three functions: sealing, guiding, and end-position cushioning.
- Due to application-optimized geometry and compounds suitable for use in oiled as well as in oil-free air (after initial lubrication on assembly).
- Cushioning buffers on the piston´s front faces with integrated ventilation ducts provide for mechanical cushioning of the cylinders.
- Multi-functional element: seal, guiding, and cushioning element.
- Immediate response (full pressure load) thanks to incorporated venting channels.
- Good wear resistance.
- Ideal corrosion protection thanks to complete elastomer covering.
- Smooth running due to optimum adjustment of the functional lips.
- Easy attachment to the piston rod without additional sealing elements.
- Easy installation due to integrated static sealing function.
- Excellent media resistance in case of suitable compound selections.
- The low assembly height of the complete piston enables the short cylinder designs.
- Versatile complete piston for nearly all cylinder designs.
Range of application
Complete piston with end cushioning for double-acting pneumatic cylinders provided that no excessive lateral guidance loads will occur (long strokes and buckling).
Operating pressure | ≤ 12 bar |
Operating temperature | -30 °C to +80 °C |
Sliding speed | ≤ 1 m/s |
Media | Compressed air, both lubricated and oil-free (after greasing for fitting) |
Compounds
The standard compound is an NBR-based elastomer with a hardness of approx. 71 Shore A and vulcanized to a metal disc.
Installation
The Parker Praedifa profile DP pneumatic complete piston should be fixed to the piston rod with a locknut to avoid loosening. For use with dry and oil-free air, the piston and cylinder tube must be relubricated with a suitable long-life lubricant.
D | d | H | Order code |
6 | 2 | 3.8 | DP0602Z5051 |
8 | 3 | 5 | DP0803Z5051 |
10 | 3 | 5 | DP1003Z5051 |
12 | 4.5 | 6 | DP1203Z5051 |
12 | 4.5 | 6 | DP1204Z5058 |
16 | 4.5 | 6.5 | DP1603Z5051 |
16 | 4.5 | 6.5 | DP1604Z5067 |
20 | 6 | 7.5 | DP2005Z5051 |
20 | 6 | 7.5 | DP2006Z5051 |
25 | 7 | 8.8 | DP2506Z5051 |
25 | 7 | 8.8 | DP2507Z5058 |
32 | 8 | 11 | DP3208Z5051 |
40 | 8 | 11.8 | DP4008Z5051 |
50 | 10 | 14 | DP5010Z5051 |
63 | 12 | 14 | DP6312Z5051 |
80 | 16 | 16 | DP8016Z5051 |
100 | 20 | 18 | DPA020Z5051 |
