Turcon Glyd Ring T
Description
Turcon Glyd Ring T is a further technical development of the Turcon Glyd Ring seal which has been successfully used for decades. It is fully interchangeable with the earlier Glyd Ring seals in all new applications. Glyd Ring T meets all the market demands for a function-specific seal solution, observing economic and ecological aspects.

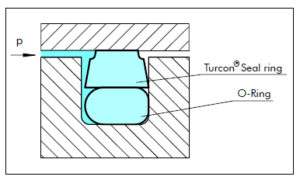

The benefits of the patented seal concept are provided by the innovative functional principle of the trapezoidal profile cross-section. Both lateral profile flanks are inclined so that the seal profile tapers towards the seal surface. The profile can thus retain the robust and compact form typical of piston seals without losing any of the flexibility required to achieve a pressure-related maximum compression.
buskan Shamban
edge angle created by the special Glyd Ring T crosssectional form permits an additional degree of freedom and enables a slight tilting movement of the seal. The maximum compression is thus always shifted towards the area of the seal edge directly exposed to the pressure. On the low-pressure edge of the seal, on the other hand, the Glyd Ring T exhibits only zones with neutral strains without compressive or shearing loads, thus effectively reducing the danger of gap extrusion. The resulting benefits for the user can be seen in the following list.
Patent-No.:
DE 41 40833 C3
EP 0 582 593
Japan 2 799 367
USA 5,433,452
Advantages

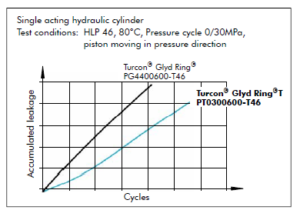

The benefits offered to date by the Glyd Ring are still retained in full, and are now complemented by a number
of further important advantages:
– Very good static leak-tightness
– Increased clearance possible (approx. +50%),
depending on the operating conditions
– Due to the larger extrusion gap, safe use even with
soiled media
– Low friction, no stick-slip effect
– Simple groove design, one-piece pistons possible
– Installation grooves to ISO 7425/1
– Adaptable to the operating conditions due to a wide
range of possible materials (TurconR, ZurconR)
– Suitable for new environmentally safe hydraulic fluids
– Available for all cylinder diameters up to 2.700 mm.
Application Examples
TURCON GLYD RING T is the recommended sealing element for double acting pistons of hydraulic components such as:
- Injection moulding machines
- Machine tools
- Presses
- Excavators
- Forklifts & handling machinery
- Agriculture
- Valves for hydraulic & pneumatic circuits.
It is particularly recommended for heavy duty and large diameter applications.
Technical Data
Operating conditions
pressure: Up to 80 MPa
Speed: Up to 15 m/s
Temperature: -45qC to +200qC *)
(depending on O-Ring material).
Media: Mineral oil-based hydraulic fluids,
barely flammable hydraulic fluids,
environmentally safe hydraulic fluids
(bio-oils), water, air and others,
depending on the O-Ring material
(see Table XI)
Clearance: The maximum permissible radial
clearance smax is shown in Table XII,
as a function of the operating
pressure and functional diameter.
Important Note:
The above data are maximum values and cannot be used at the same time. e.g. the maximum operating speed depends on material type, pressure, temperature and gap value. Temperature range also dependent on medium.
In the case of unpressurized applications in
temperatures below 0°C please contact our
application engineers for assistance !
Materials
Standard Application:
For hydraulic components with reciprocating movement in mineral oils containing zinc or medium with good lubricating performance.
Turcon Seal: Turcon T46
Energiser: O-Ring NBR 70 shore A or FKM 70
Shore A depending on the temperature
Set reference: T46N or T46V
Special Application:
Non-lubricating fluids or pneumatic applications require self-lubricating sealing materials. Therefore we recommend:
Turcon Seal: TurconR T40
Energiser: O-Ring NBR 70 Shore A or FKM 70
Shore A depending on temperature
Set reference: T40N or T40V
If rougher surface finish must be sealed, we recommend:
ZurconR Seal: ZurconR Z51
Energiser: O-Ring NBR 70 Shore A
Set reference: Z51N
Ordering example
TURCON GLYD RING T complete with O-Ring, standard application, series PT03 (from Table XII). Bore diameter: DN = 80.0 mm Part No. PT0300800
Select the material from Table XI. The corresponding code numbers are appended to the Part No. Together they form the Order No. For all intermediate sizes not shown in Table XIII, the Order No. can be determined from the example opposite. For diameters t 1000.0 mm multiply only by factor 1. Example: PT06 for diameter 1200.0 mm. Order no.: PT06X1200 – T46N.
TURCON GLYD RING T
| Bore Dia. | Groove Dia. | Groove Width | Part No. | O-Ring Dimensions |
| DN H9 | d1 h9 | L1 +0.2 | ||
| 8,0 | 3,1 | 2,2 | PT0000080 | 2.90 x 1.78 |
| 10,0 | 5,1 | 2,2 | PT0000100 | 4.80 x 1.8 |
| 12,0 | 7,1 | 2,2 | PT0000120 | 6.70 x 1.8 |
| 14,0 | 9,1 | 2,2 | PT0000140 | 8.75 x 1.8 |
| 15,0 | 7,5 | 3,2 | PT0100150 | 7.59 x 2.62 |
| 16,0 | 11,1 | 2,2 | PT0000160 | 10.82 x 1.78 |
| 16,0 | 8,5 | 3,2 | PT0100160 | 7.59 x 2.62 |
| 18,0 | 13,1 | 2,2 | PT0000180 | 12.42 x 1.78 |
| 18,0 | 10,5 | 3,2 | PT0100180 | 9.19 x 2.62 |
| 19,05 | 11,55 | 3,2 | PT0100190 | 10.77 x 2.62 |
| 20,0 | 15,1 | 2,2 | PT0000200 | 14.00 x 1.78 |
| 20,0 | 12,5 | 3,2 | PT0100200 | 12.37 x 2.62 |
| 21,0 | 13,5 | 3,2 | PT0100210 | 12.37 x 2.62 |
| 22,0 | 17,1 | 2,2 | PT0000220 | 17.17 x 1.78 |
| 22,0 | 14,5 | 3,2 | PT0100220 | 13.94 x 2.62 |
| 24,0 | 16,5 | 3,2 | PT0100240 | 15.54 x 2.62 |
| 25,0 | 20,1 | 2,2 | PT0000250 | 18.77 x 1.78 |
| 25,0 | 17,5 | 3,2 | PT0100250 | 17.12 x 2.62 |
| 25,0 | 14,0 | 4,2 | PT0200250 | 13.87 x 3.53 |
| 25,4 | 20,5 | 2,2 | PT0000254 | 17.12 x 2.62 |
| 28,0 | 20,5 | 3,2 | PT0100280 | 20.29 x 2.62 |
| 30,0 | 22,5 | 3,2 | PT0100300 | 21.89 x 2.62 |
| 32,0 | 27,1 | 2,2 | PT0000320 | 26.70 x 1.78 |
| 32,0 | 24,5 | 3,2 | PT0100320 | 23.47 x 2.62 |
| 32,0 | 21,0 | 4,2 | PT0200320 | 20.22 x 3.53 |
| 35,0 | 27,5 | 3,2 | PT0100350 | 26.64 x 2.62 |
| 35,0 | 24,0 | 4,2 | PT0200350 | 23.40 x 3.53 |
| 36,0 | 28,5 | 3,2 | PT0100360 | 28.24 x 2.62 |
| 38,0 | 30,5 | 3,2 | PT0100380 | 29.82 x 2.62 |
| 40,0 | 32,5 | 3,2 | PT0100400 | 31.42 x 2.62 |
| 40,0 | 29,0 | 4,2 | PT0200400 | 28.17 x 3.53 |
| 42,0 | 31,0 | 4,2 | PT0200420 | 29.75 x 3.53 |
| 44,45 | 36,95 | 3,2 | PT0100444 | 36.17 x 2.62 |
| 45,0 | 34,0 | 4,2 | PT0200450 | 32.92 x 3.53 |
| 48,0 | 37,0 | 4,2 | PT0200480 | 36.09 x 3.53 |
| 50,0 | 42,5 | 3,2 | PT0100500 | 40.94 x 2.62 |
| 50,0 | 39,0 | 4,2 | PT0200500 | 37.70 x 3.53 |
| 50,0 | 34,5 | 6,3 | PT0300500 | 32.69 x 5.33 |
| 50,8 | 43,3 | 3,2 | PT0100508 | 42.52 x 2.62 |
| 50,8 | 39,8 | 4,2 | PT0200508 | 37.70 x 3.53 |
| 52,0 | 41,0 | 4,2 | PT0200520 | 40.87 x 3.53 |
| 53,0 | 42,0 | 4,2 | PT0200530 | 40.87 x 3.53 |
| 55,0 | 44,0 | 4,2 | PT0200550 | 44.04 x 3.53 |
| 57,0 | 46,0 | 4,2 | PT0200570 | 44.04 x 3.53 |
| 58,0 | 47,0 | 4,2 | PT0200580 | 47.22 x 3.53 |
| 60,0 | 49,0 | 4,2 | PT0200600 | 47.22 x 3.53 |
| 62,0 | 51,0 | 4,2 | PT0200620 | 50.39 x 3.53 |
| 63,0 | 52,0 | 4,2 | PT0200630 | 50.39 x 3.53 |
| 63,0 | 47,5 | 6,3 | PT0300630 | 46.99 x 5.33 |
| 65,0 | 54,0 | 4,2 | PT0200650 | 53.57 x 3.53 |
| 68,0 | 57,0 | 4,2 | PT0200680 | 56.74 x 3.53 |
| 70,0 | 59,0 | 4,2 | PT0200700 | 56.74 x 3.53 |
| 70,0 | 54,5 | 6,3 | PT0300700 | 53.34 x 5.33 |
| 75,0 | 64,0 | 4,2 | PT0200750 | 63.09 x 3.53 |
| 75,0 | 59,5 | 6,3 | PT0300750 | 56.52 x 3.53 |
| 80,0 | 69,0 | 4,2 | PT0200800 | 66.27 x 3.53 |
| 80,0 | 64,5 | 6,3 | PT0300800 | 62.87 x 5.33 |
| 80,0 | 59,0 | 8,1 | PT0400800 | 58 x 7.0 |
| 82,5 | 67,0 | 6,3 | PT0300825 | 66.04 x 5.33 |
| 85,0 | 69,5 | 6,3 | PT0300850 | 69.22 x 5.33 |
| 85,0 | 64,0 | 8,1 | PT0400850 | 63 x 7.0 |
| 90,0 | 79,0 | 4,2 | PT0200900 | 78.97 x 3.53 |
| 90,0 | 74,5 | 6,3 | PT0300900 | 72.39 x 5.33 |
| 90,0 | 69,0 | 8,1 | PT0400900 | 68 x 7.0 |
| 95,0 | 84,0 | 4,2 | PT0200950 | 82.14 x 3.53 |
| 95,0 | 79,5 | 6,3 | PT0300950 | 78.74 x 5.33 |
| 95,0 | 74,0 | 8,1 | PT0400950 | 73 x 7.0 |
| 100,0 | 89,0 | 4,2 | PT0201000 | 88.49 x 3.53 |
| 100,0 | 84,5 | 6,3 | PT0301000 | 81.92 x 5.33 |
| 100,0 | 79,0 | 8,1 | PT0401000 | 78 x 7.0 |
| 101,6 | 86,1 | 6,3 | PT0301016 | 85.09 x 5.33 |
| 105,0 | 94,0 | 4,2 | PT0201050 | 91.67 x 3.53 |
| 105,0 | 89,5 | 6,3 | PT0301050 | 88.27 x 5.33 |
| 108,0 | 92,5 | 6,3 | PT0301080 | 91.44 x 5.33 |
| 110,0 | 99,0 | 4,2 | PT0201100 | 98.02 x 3.53 |
| 110,0 | 94,5 | 6,3 | PT0301100 | 91.44 x 5.33 |
| 110,0 | 89,0 | 8,1 | PT0401100 | 88 x 7.0 |
| 115,0 | 99,5 | 6,3 | PT0301150 | 97.79 x 5.33 |
| 120,0 | 109,0 | 4,2 | PT0201200 | 107.54 x 3.53 |
| 120,0 | 104,5 | 6,3 | PT0301200 | 100.97 x 5.33 |
| 120,0 | 99,0 | 8,1 | PT0401200 | 98 x 7.0 |
| 125,0 | 114,0 | 4,2 | PT0201250 | 113.89 x 3.53 |
| 125,0 | 109,5 | 6,3 | PT0301250 | 107.32 x 5.33 |
| 125,0 | 104,0 | 8,1 | PT0401250 | 103 x 7.0 |
| 127,0 | 111,5 | 6,3 | PT0301270 | 110.49 x 5.33 |
| 130,0 | 114,5 | 6,3 | PT0301300 | 113.67 x 5.33 |
| 130,0 | 109,0 | 8,1 | PT0401300 | 108 x 7.0 |
| 132,0 | 121,0 | 4,2 | PT0201320 | 120.24 x 3.53 |
| 135,0 | 114,0 | 8,1 | PT0401350 | 113.67 x 7.0 |
| 140,0 | 124,5 | 6,3 | PT0301400 | 123.19 x 5.33 |
| 140,0 | 119,0 | 8,1 | PT0401400 | 116.84 x 7.0 |
| 145,0 | 129,5 | 6,3 | PT0301450 | 126.37 x 5.33 |
| 145,0 | 124,0 | 8,1 | PT0401450 | 123.19 x 7.0 |
| 150,0 | 134,5 | 6,3 | PT0301500 | 132.72 x 5.33 |
| 150,0 | 129,0 | 8,1 | PT0401500 | 126.37 x 7.0 |
| 155,0 | 134,0 | 8,1 | PT0401550 | 132.72 x 7.0 |
| 160,0 | 144,5 | 6,3 | PT0301600 | 142.24 x 5.33 |
| 160,0 | 139,0 | 8,1 | PT0401600 | 135.89 x 7.0 |
| 165,0 | 144,0 | 8,1 | PT0401650 | 142.24 x 7.0 |
| 170,0 | 149,0 | 8,1 | PT0401700 | 145.42 x 7.0 |
| 175,0 | 154,0 | 8,1 | PT0401750 | 151.77 x 7.0 |
| 180,0 | 164,5 | 6,3 | PT0301800 | 164.47 x 5.33 |
| 180,0 | 159,0 | 8,1 | PT0401800 | 158.12 x 7.0 |
| 190,0 | 169,0 | 8,1 | PT0401900 | 164.47 x 7.0 |
| 194,0 | 178,5 | 6,3 | PT0301940 | 177.17 x 5.33 |
| 200,0 | 184,5 | 6,3 | PT0302000 | 183.52 x 5.33 |
| 200,0 | 179,0 | 8,1 | PT0402000 | 177.17 x 7.0 |
| 205,0 | 184,0 | 8,1 | PT0402050 | 183.52 x 7.0 |
| 210,0 | 189,0 | 8,1 | PT0402100 | 183.52 x 7.0 |
| 215,0 | 194,0 | 8,1 | PT0402150 | 189.87 x 7.0 |
| 220,0 | 199,0 | 8,1 | PT0402200 | 196.22 x 7.0 |
| 230,0 | 214,5 | 6,3 | PT0302300 | 208.92 x 5.33 |
| 230,0 | 209,0 | 8,1 | PT0402300 | 208.92 x 7.0 |
| 240,0 | 219,0 | 8,1 | PT0402400 | 215.27 x 7.0 |
| 250,0 | 134,5 | 6,3 | PT0302500 | 234.32 x 5.33 |
| 250,0 | 229,0 | 8,1 | PT0402500 | 227.97 x 7.0 |
| 250,0 | 225,5 | 8,1 | PT0802500 | 215.27 x 7.0 |
| 254,0 | 233,0 | 8,1 | PT0402540 | 227.97 x 7.0 |
| 260,0 | 239,0 | 8,1 | PT0402600 | 240.67 x 7.0 |
| 265,0 | 244,0 | 8,1 | PT0402650 | 240.67 x 7.0 |
| 268,0 | 247,0 | 8,1 | PT0402680 | 240.67 x 7.0 |
| 270,0 | 249,0 | 8,1 | PT0402700 | 240.67 x 7.0 |
| 280,0 | 259,0 | 8,1 | PT0402800 | 253.37 x 7.0 |
| 290,0 | 269,0 | 8,1 | PT0402900 | 266.07 x 7.0 |
| 300,0 | 279,0 | 8,1 | PT0403000 | 278.77 x 7.0 |
| 300,0 | 275,5 | 8,1 | PT0803000 | 266.07 x 7.0 |
| 304,8 | 283,8 | 8,1 | PT0403048 | 278.77 x 7.0 |
| 310,0 | 289,0 | 8,1 | PT0403100 | 278.77 x 7.0 |
| 320,0 | 299,0 | 8,1 | PT0403200 | 291.47 x 7.0 |
| 320,0 | 295,5 | 8,1 | PT0803200 | 291.47 x 7.0 |
| 330,0 | 305,5 | 8,1 | PT0803300 | 304.17 x 7.0 |
| 340,0 | 315,5 | 8,1 | PT0803400 | 316.87 x 7.0 |
| 350,0 | 325,5 | 8,1 | PT0803500 | 316.87 x 7.0 |
| 360,0 | 335,5 | 8,1 | PT0803600 | 329.57 x 7.0 |
| 370,0 | 345,5 | 8,1 | PT0803700 | 342.27 x 7.0 |
| 380,0 | 355,5 | 8,1 | PT0803800 | 354.97 x 7.0 |
| 400,0 | 375,5 | 8,1 | PT0804000 | 367.67 x 7.0 |
| 420,0 | 395,5 | 8,1 | PT0804200 | 393.07 x 7.0 |
| 430,0 | 405,5 | 8,1 | PT0804300 | 405.26 x 7.0 |
| 440,0 | 415,5 | 8,1 | PT0804400 | 405.26 x 7.0 |
| 450,0 | 425,5 | 8,1 | PT0804500 | 417.96 x 7.0 |
| 460,0 | 435,5 | 8,1 | PT0804600 | 430.66 x 7.0 |
| 480,0 | 455,5 | 8,1 | PT0804800 | 456.06 x 7.0 |
| 500,0 | 475,5 | 8,1 | PT0805000 | 468.76 x 7.0 |
| 555,0 | 530,5 | 8,1 | PT0805550 | 506.86 x 7.0 |
| 600,0 | 575,5 | 8,1 | PT0806000 | 557.66 x 7.0 |
| 640,0 | 615,5 | 8,1 | PT0806400 | 608.08 x 7.0 |
| 660,0 | 635,5 | 8,1 | PT0806600 | 633.48 x 7.0 |
| 700,0 | 672,0 | 9,5 | PT0507000 | 670 x 8.4 |
| 710,0 | 682,0 | 9,5 | PT0507100 | 680 x 8.4 |
| 740,0 | 712,0 | 9,5 | PT0507400 | 710 x 8.4 |
| 780,0 | 752,0 | 9,5 | PT0507800 | 750 x 8.4 |
| 800,0 | 772,0 | 9,5 | PT0508000 | 770 x 8.4 |
| 900,0 | 872,0 | 9,5 | PT0509000 | 870 x 8.4 |
| 1000,0 | 972,0 | 9,5 | PT05X1000 | 970 x 8.4 |
| 1000,0 | 962,0 | 13,8 | PT06X1000 | 960 x 12.0 |
| 1050,0 | 1022,0 | 9,5 | PT05X1050 | 1020 x 8.4 |
| 1065,0 | 1027,0 | 13,8 | PT06X1065 | 1025 x 12.0 |
| 1070,0 | 1032,0 | 13,8 | PT06X1070 | 1030 x 12.0 |
| 1200,0 | 1172,0 | 9,5 | PT05X1200 | 1170 x 8.4 |
| 1200,0 | 1162,0 | 13,8 | PT06X1200 | 1160 x 12.0 |
| 1225,0 | 1187,0 | 13,8 | PT06X1225 | 1185 x 12.0 |
| 1500,0 | 1462,0 | 13,8 | PT06X1500 | 1460 x 12.0 |
| 2000,0 | 1962,0 | 13,8 | PT06X2000 | 1960 x 12.0 |
| 2700,0 | 2662,0 | 13,8 | PT06X2700 | 2660 x 12.0 |
