SRS ROD SEAL
DESCRIPTION

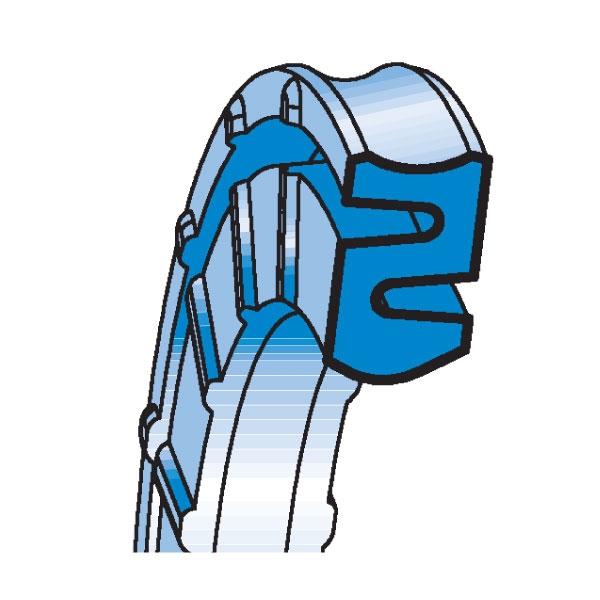

The SRS Rod Seal has been designed for pneumatic cylinders applications. Where the overall dimensions allow, the SRS can also be used for pneumatic valves. In addition, the reduced overall dimensions result in a short machining time of the system. Its profile is rounded in the middle of the dynamic lip and it has two projections on the static lip. This symmetric shape makes installation easier. The special spring shaped profile ensures high flexibility in the system even at low pressure.
TECHNICAL DATA
SRS Rod Seal
Pressure: <20 bar
Speed: <1 m/s
Temperature: from -30°C up to +90°C
Fluids: air with or without lubrication, mineral oils or grease
MATERIAL
Standard polyurethane 90 Sh A. Standard compound reference: B0
Alternative polyurethane 85 Sh A. Alternative compound reference: A0
ASSEMBLY
Eliminate any cutting edges and flash in the housing to permit assembly and prevent damage to seals during mounting.
DRAWING SRS ROD SEAL
ARTICLES SRS ROD SEAL
| df9 | Dh10 | toll H10 | h | E+0,2 | ART/ITEM | ||||
| 6,0 | 13,0 | +0,043/0 | 2,3 | 2,5 | SRS | 0060 | 0130 | 023 | B0 |
| 8,0 | 15,0 | +0,043/0 | 2,3 | 2,5 | SRS | 0080 | 0150 | 023 | B0 |
| 10,0 | 17,0 | +0,043/0 | 2,3 | 2,5 | SRS | 0100 | 0170 | 023 | B0 |
| 12,0 | 19,0 | +0,052/0 | 2,3 | 2,5 | SRS | 0120 | 0190 | 023 | B0 |
| 14,0 | 21,0 | +0,052/0 | 2,3 | 2,5 | SRS | 0140 | 0210 | 023 | B0 |
| 15,0 | 22,0 | +0,052/0 | 2,3 | 2,5 | SRS | 0150 | 0220 | 023 | B0 |
| 16,0 | 25,0 | +0,052/0 | 2,8 | 3,0 | SRS | 0160 | 0250 | 028 | B0 |
| 20,0 | 29,0 | +0,052/0 | 2,8 | 3,0 | SRS | 0200 | 0290 | 028 | B0 |
| 25,0 | 34,0 | +0,062/0 | 2,8 | 3,0 | SRS | 0250 | 0340 | 028 | B0 |
| 30,0 | 39,0 | +0,062/0 | 2,8 | 3,0 | SRS | 0300 | 0390 | 028 | B0 |
| 40,0 | 49,0 | +0,062/0 | 2,8 | 3,0 | SRS | 0400 | 0490 | 028 | B0 |
| 42,0 | 51,0 | +0,074/0 | 2,8 | 3,0 | SRS | 0420 | 0510 | 028 | B0 |
| 50,0 | 59,0 | +0,074/0 | 2,8 | 3,0 | SRS | 0500 | 0590 | 028 | B0 |
