Design:
Claron Style CSW Rod wiper is designed to remove more tenacious mud and ice from a reciprocating rod during the negative stroke. It is classified as a heavy duty scraper. The scraper is precision moulded in Nylon (PA) with a filter of MOS2 to improve the friction and wear characteristics of the material. The materials high modulus (stiffness) allow it to aggressively scrape larger debris from the rod. the wiper is designed with an outside sealing lip providing positive sealing on the housing thus preventing dirt and moisture from entering the system around the outside of the wiper.
Operating conditions:
Optimum service conditions are affected by temperature, speed and surface finish.
Refer to Appendix 1 for further information.
PA Nylon | ||
DIN | Hydraulic Fluid Description | °C |
H | Mineral oil without additives | 120 |
H-L | Mineral Fluid with anti corrosion and anti ageing additives | 120 |
H-LP | Mineral oil as HL plus additives reducing wear, raising load | 120 |
H-LPD | Mineral oil as H-LP but with detergents and dispersants | 120 |
H-V | Mineral oil as H-LP plus improved viscosity temp. | 120 |
HFA E | Emulsions of mineral oil in water. Water content 80-95% | 55 |
HFA S | Synthetic oil in water. Water content 80-95% | 55 |
HFB | Emulsions of water in mineral oil. Water content 40% | 60 |
HFC | Aqueous polymer solutions. Water content 35% | 60 |
HFD R | Phosphoric acid ester based | 80 |
HFD S | Chlorinated hydrocarbon based | 80 |
HFD T | Mixtures of HFD R and HFD S | 80 |
HEPG | Polyglycol based | 100 |
HETG | Vegetable Oil based | 60 |
HEES | Fully synthetic ester based | 100 |
Housing:

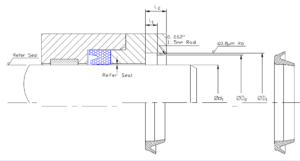

For surface finish and recommended lead in chamfers refer to the illustration below. For housing dimensions and machining tolerances refer to the catalogue page of selected seal.
Refer to Appendix 4 for value of tolerance symbols.
Fitting:
Styles CSW & CSWM are designed to snap fit into its housing. For the seal to function correctly, it is important that care
be taken in fitting the seal within its housing. For a detailed checklist, refer to Appendix 3.
Part Number | Refer Seal Selection | +0.20 -0.00 |
+0.20 -0.00 |
+0.20 -0.00 |
Nominal | ||||||||
Ød1 | ØD1 | ØD2 | L1 | L2 | |||||||||
CSWM 016 | 16 | 26 | 24,5 | 4,5 | 6,5 | ||||||||
CSWM 018 | 18 | 28 | 26,5 | 4,5 | 6,5 | ||||||||
CSWM 020 | 20 | 33 | 31,5 | 6,0 | 8,5 | ||||||||
CSWM 022 | 22 | 35 | 33,5 | 6,0 | 8,5 | ||||||||
CSWM 025 | 25 | 38 | 36,5 | 6,0 | 8,5 | ||||||||
CSWM 028 | 28 | 41 | 39,5 | 6,0 | 8,5 | ||||||||
CSWM 030 | 30 | 43 | 41,5 | 6,0 | 8,5 | ||||||||
CSWM 032 | 32 | 45 | 43,5 | 6,0 | 8,5 | ||||||||
CSWM 036 | 36 | 49 | 47,5 | 6,0 | 8,5 | ||||||||
CSWM 040 | 40 | 53 | 51,5 | 6,0 | 8,5 | ||||||||
CSWM 045 | 45 | 58 | 56,5 | 6,0 | 8,5 | ||||||||
CSWM 050 | 50 | 63 | 61,5 | 6,0 | 8,5 | ||||||||
CSWM 055 | 55 | 68 | 66,5 | 6,0 | 8,5 | ||||||||
CSWM 056 | 56 | 69 | 67,5 | 6,0 | 8,5 | ||||||||
CSWM 060 | 60 | 73 | 71,5 | 6,0 | 8,5 | ||||||||
CSWM 063 | 63 | 76 | 74,5 | 6,0 | 8,5 | ||||||||
CWSM 065 | 65 | 78 | 76,5 | 6,0 | 8,5 | ||||||||
CSWM 070 | 70 | 83 | 81,5 | 6,0 | 8,5 | ||||||||
CSWM 080 | 80 | 93 | 91,5 | 6,0 | 8,5 | ||||||||
CSWM 090 | 90 | 103 | 101,5 | 6,0 | 8,5 | ||||||||
CSWM 100 | 100 | 113 | 111,5 | 6,0 | 8,5 |
CSW 050 | 0,500 | 0,875 | 0,812 | 0,172 | 0,250 | ||||||||
CSW 062 | 0,625 | 1,000 | 0,938 | 0,172 | 0,250 | ||||||||
CSW 075 | 0,750 | 1,250 | 1,187 | 0,234 | 0,345 | ||||||||
CSW 087 | 0,875 | 1,375 | 1,312 | 0,234 | 0,345 | ||||||||
CSW 100 | 1,000 | 1,500 | 1,437 | 0,234 | 0,345 | ||||||||
CSW 112 | 1,125 | 1,625 | 1,562 | 0,234 | 0,345 | ||||||||
CSW 125 | 1,250 | 1,750 | 1,687 | 0,234 | 0,345 | ||||||||
CSW 137 | 1,375 | 1,875 | 1,812 | 0,234 | 0,345 | ||||||||
CSW 150 | 1,500 | 2,000 | 1,937 | 0,234 | 0,345 | ||||||||
CSW 162 | 1,625 | 2,125 | 2,062 | 0,234 | 0,345 | ||||||||
CSW 175 | 1,750 | 2,250 | 2,187 | 0,234 | 0,345 | ||||||||
CSW 200 | 2,000 | 2,500 | 2,437 | 0,234 | 0,345 | ||||||||
CSW 212 | 2,125 | 2,625 | 2,562 | 0,234 | 0,345 | ||||||||
CSW 225 | 2,250 | 2,750 | 2,687 | 0,234 | 0,345 | ||||||||
CSW 250 | 2,500 | 3,000 | 2,937 | 0,234 | 0,345 | ||||||||
CSW 275 | 2,750 | 3,250 | 3,187 | 0,234 | 0,345 | ||||||||
CSW 300 | 3,000 | 3,500 | 3,437 | 0,234 | 0,345 | ||||||||
CSW 325 | 3,250 | 3,750 | 3,687 | 0,234 | 0,345 | ||||||||
CSW 350 | 3,500 | 4,000 | 3,937 | 0,234 | 0,345 | ||||||||
CSW 375 | 3,750 | 4,250 | 4,187 | 0,234 | 0,345 | ||||||||
CSW 400 | 4,000 | 4,500 | 4,375 | 0,234 | 0,345 |
