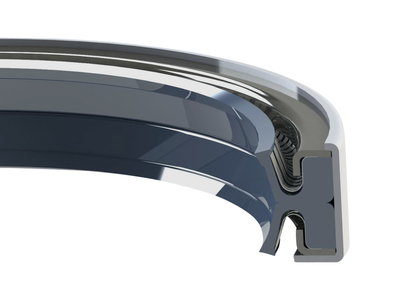

Dual Opposed (both lips with spring): Models 53R2

Get a quote
MODEL 53R2 •   Heavy duty case
•   Assembled design
3 thru 15
(76.4 thru
381)
1000 (5.1) 0.010 @ 500 (0.25 @ 2.5)
0.005 @ 1000 (0.13 @ 5.1)
Stainless Steel Finger Steel Case**

MODEL NO PART NO SHAFT BORE WIDTH

53R2 22537-5260 8.000 9.500 0.969
53R2 22627-3694 11.000 13.000 1.000
53R2 22627-4491 20.750 22.750 1.750
53R2 22627-4650 16.250 17.750 1.281
53R2 22627-4668 5.000 6.500 0.906
53R2 22627-4751 12.375 13.875 1.437
53R2 22627-4752 4.125 5.500 0.969
53R2 22627-4784 6.000 7.500 1.344
53R2 22627-4825 5.500 6.500 0.906
53R2 22627-4828 5.000 6.250 0.906
53R2 22627-4836 4.750 6.000 0.906
53R2 22627-4884 12.000 13.875 1.312
53R2 22627-4888 14.000 16.000 1.375
53R2 22627-4894 15.000 17.000 1.312
53R2 22627-4904 4.250 5.250 0.906
53R2 22627-4942 7.500 9.250 1.344
53R2 22627-4943 9.000 10.750 1.375
53R2 22627-4982 5.125 6.500 0.906
53R2 22627-5021 9.250 10.750 1.375
53R2 22627-5090 5.687 7.500 0.906
53R2 22627-5183 3.437 4.500 0.906
53R2 22627-5285 4.750 5.750 0.937
53R2 22627-5324 5.625 6.875 0.969
53R2 22627-5500 7.250 8.250 1.344
53R2 22627-5531 6.500 7.500 0.906
53R2 22627-5621 5.250 6.500 1.344
53R2 22627-5645 3.875 4.875 0.906
53R2 22627-5651 8.000 9.000 1.344
53R2 22627-5710 5.750 7.000 1.031
53R2 22627-5883 8.000 9.250 1.000
53R2 22627-5918 8.375 9.875 1.156
53R2 22627-5927 11.000 12.500 1.375
53R2 22627-5932 7.875 9.375 0.969
53R2 22627-5949 9.000 11.000 1.375
53R2 22627-6063 11.375 13.000 1.375
53R2 22627-6082 4.125 5.250 0.906
53R2 22627-6117 15.000 17.000 1.250
53R2 22627-6146 6.125 7.500 0.906
53R2 22627-6154 13.500 15.500 1.375
53R2 22627-6166 5.750 7.000 0.906
53R2 22627-6354 15.000 17.000 1.375
53R2 22627-6432 5.125 6.125 0.843
53R2 22627-6437 7.000 8.500 0.969
53R2 22627-6461 3.187 4.249 0.906
53R2 22627-6521 9.000 10.500 1.375
53R2 22627-6528 3.250 4.500 0.906
53R2 22627-6534 3.500 4.500 0.906
53R2 22627-6545 3.562 4.625 0.906
53R2 22627-6563 4.250 5.750 0.906
53R2 22627-6596 7.500 9.250 1.218
53R2 22627-6607 13.000 15.000 1.375
53R2 22627-6640 5.000 6.000 0.969
53R2 22627-6663 9.250 11.000 1.375
53R2 22627-6685 4.500 5.500 0.969
53R2 22627-6708 3.250 4.249 0.906
53R2 22627-6711 5.000 6.000 0.906
53R2 22627-6739 3.125 4.125 0.906
53R2 22627-6746 6.000 7.000 0.969
53R2 22627-6799 4.000 4.999 0.906
53R2 22627-6806 3.750 4.999 0.906
53R2 22627-6814 4.875 6.500 0.906
53R2 22627-6842 10.000 12.000 1.375
53R2 22627-6871 4.187 6.000 0.906

53R2 22627-6901 3.625 4.625 0.906
53R2 22627-6942 9.500 10.750 1.375
53R2 22627-6945 6.750 8.250 1.031
53R2 22627-6954 7.750 8.750 1.156
53R2 22627-6968 3.125 4.999 0.906
53R2 22627-6969 8.500 9.500 0.969
53R2 22627-7111 5.562 6.875 0.906
53R2 22627-7202 6.000 7.250 1.343
53R2 22627-7245 4.625 5.750 0.906
53R2 22627-7247 6.250 7.750 0.906
53R2 22627-7255 3.000 4.125 0.906
53R2 22627-7258 4.500 5.750 0.969
53R2 22627-7283 12.000 14.000 1.375
53R2 22627-7315 4.937 6.500 0.906
53R2 22627-7324 3.500 4.999 0.906
53R2 22627-7326 12.000 13.625 1.437
53R2 22627-7348 4.687 6.000 0.906
53R2 22627-7358 7.750 9.250 0.875
53R2 22627-7360 7.000 8.500 0.875
53R2 22627-7361 5.125 6.250 0.906
53R2 22627-7404 18.000 19.500 1.250
53R2 22627-7409 5.500 6.750 0.906
53R2 22627-7419 3.250 4.250 0.969
53R2 22627-7433 6.000 7.500 0.906
53R2 22627-7440 3.750 4.750 0.906
53R2 22627-7559 4.000 5.125 0.906
53R2 22627-7562 9.250 11.250 1.375
53R2 22627-7610 5.250 6.750 0.906
53R2 22627-7629 6.250 7.750 1.344
53R2 22627-7651 4.062 6.000 0.906
53R2 22627-7707 7.250 8.375 1.125
53R2 22627-7803 4.375 5.500 0.969
53R2 22627-7877 4.750 6.250 0.906
53R2 22627-8202 4.375 5.375 0.906
53R2 22627-8396 3.625 4.750 0.906
53R2 22627-8441 3.250 4.999 0.906
53R2 22627-8546 7.250 8.500 1.094
53R2 22627-8630 4.875 6.000 0.906
53R2 22627-8635 4.312 5.500 0.969
53R2 22627-8667 7.125 8.500 1.094
53R2 22627-8685 6.875 8.125 1.406
53R2 22627-8686 7.750 8.750 1.094
53R2 22627-8687 8.750 10.750 1.375
53R2 22627-8700 3.250 4.500 0.843
53R2 22627-8716 12.500 14.000 1.375
53R2 22627-8771 4.000 6.000 0.906
53R2 22627-8775 6.625 8.125 0.969
53R2 22627-8828 9.000 10.500 1.437
53R2 22627-8909 9.500 11.250 1.375
53R2 22627-9018 4.125 5.125 0.906
53R2 22627-9036 11.500 13.500 1.250
53R2 22627-9165 8.000 9.000 0.969
53R2 22627-9320 4.125 5.375 0.906
53R2 22627-9414 8.500 10.500 1.250
53R2 22627-9419 12.500 14.500 1.250
53R2 22627-9422 5.750 7.250 1.032
53R2 22627-9423 18.000 20.000 1.750
53R2 22627-9474 23.000 25.000 1.687
53R2 22627-9532 8.437 10.000 1.000
53R2 22627-9854 5.750 7.000 0.844
53R2 22627-9970 8.000 10.000 1.375
53R2 22627-9972 5.250 7.125 0.906
