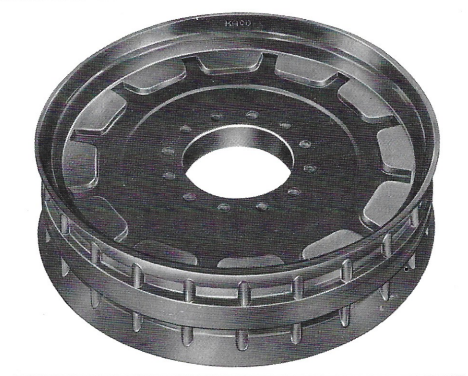

Kaco TWINLIP sealing pistons QTDF is a new complete piston generation for pneumatic cylinders. Their development became necessary, as the operating conditions for pneumatic cylinders have expanded considerably. Particular importance was attached to an extension of the service life in the case of lacking lubrication, a favorable frictional force behavior, and a reduction of the stick-slip tendency.

In order to guarantee the operation of cylinders with dry or untreated air, TVVINLIP sealing pistons have surrounding lubricant depots between the sealing lips and the guide piece which are divided up into numerous pockets by axially arranged ridges. As a result of this, good lubrication is guaranteed even if the cylinder is in a horizontal position because the ridges prevent the lubricant from running together when the cylinder heats up.

The newly designed completely molded sealing lips, which are rounded at the sealing edge, cause a low frictional force and a low stick-slip tendency. High resistance to wear and tear and long service life are guaranteed thanks to the pressing skin on the contact
surfaces of the sealing lips.

The rubber jacketing on both sides of the metal washer provides not only good corrosion protection but also sure static sealing of the piston at the rod shoulder. Recesses on both impact surfaces arranged in the form of a star cause immediate pressure action on the complete piston surface and thus cause the fine release of the cylinder from the end position.

As the dimensions of TWINLIP sealing pistons correspond with those of the QTD … NG double cup seals (page 40), these are mutually interchangeable.

Figure 43 shows a cylinder construction for operation with untreated or dry compressed air, using a TWINLIP sealing piston QTDF, a BILIP-P seal scraper element QHLP (description on page 36) and a CYBU cushion seal PEI (description on page 20).

If the simple version of the sealing piston is used, the sealing lip not subjected to pressure is removed. Refer to the table on page 39 for the installation dimensions of single-type QTEF sealing pistons. Due to the symmetrical structure of these sealing pistons, it does no matter from which side a sealing lip is removed. This is advantageous for installation and for keeping spare parts.

TWINLIP sealing pistons are normally manufactured from SYGUMIN materials on an NBR basis with a Shore A hardness of 80. For special applications, they can also be manufactured from fluor elastomers.

Technical data:

Pressure range                                  ≤ 16 bar

Permissible sliding speed               ≤ 1 m/s
Tolerances

dynamic (cylinder)             H10

static (rod)                      f8

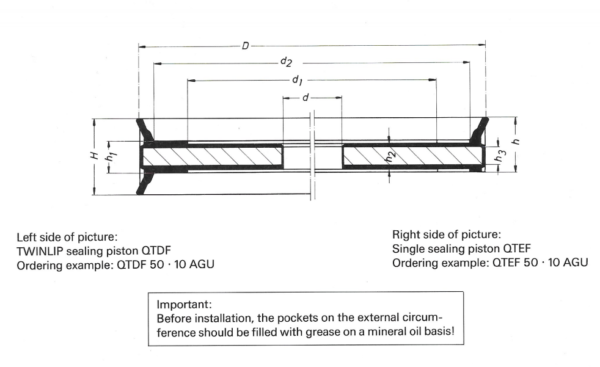

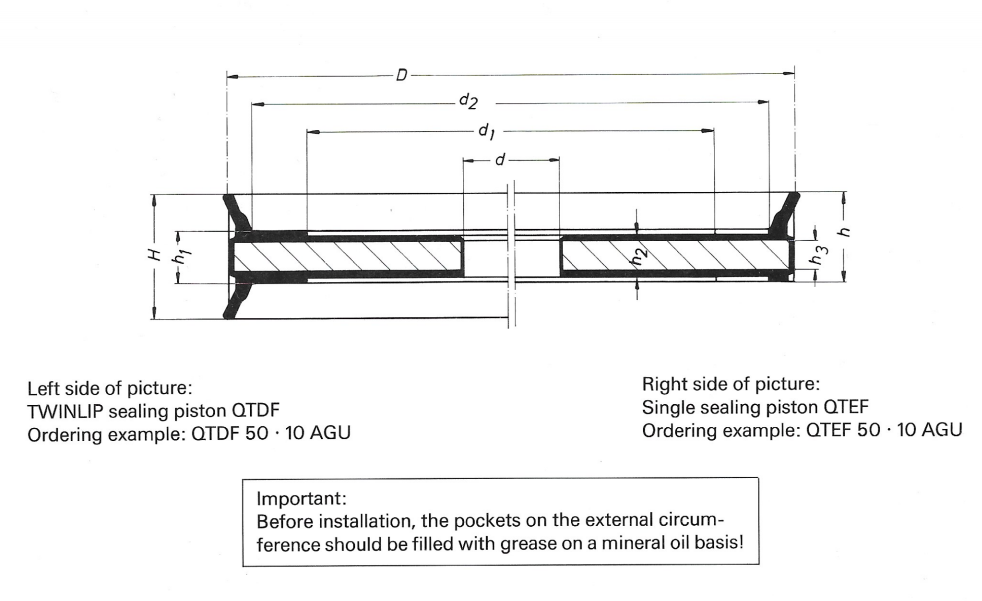

Item number  D d H h d1 d2 h1 h2 h3
QTDF 32 • 5  AGU 01 32 5 18 12 16 26 6 4 3
QTDF 32 • 8  AGU 01 32 8 18,5 12,5 17,5 26,4 6,5 4 3
QTDF 40 • 8  AGU 01 40 8 20 13,5 22 33 7 5 4
QTDF 40  • 10 AGU 01 40 10 20,5 14 22,5 33,6 7,5 5 4
QTDF 50 • 8  AGU 01 50 8 20 13,5 25 43 7 5 4
QTDF 50 • 10 AGU 01 50 10 20,5 14 25 43,2 7,5 5 4
QTDF 50 • 16 AGU 01 50 16 20,5 14 25 43,2 7,5 5 4
QTDF 63 • 16 AGU 01 63 16 21,5 14,5 40 55,5 7,5 5 4
QTDF 80 • 16 AGU 01 80 16 22,5 15,5 55 71 8,5 6 5
QTDF 80 • 20 AGU 01 80 20 22,5 15,5 55 71 8,5 6 5
QTDF 100 • 20 AGU 01 100 20 26 18 72 90 10 7 6
QTDF100 • 28 AGU 01 100 28 26 18 72 90 10 7 6
QTDF 125 • 20 AGU 01 125 20 28 20 90 115 12 8 7
QTDF 160 • 27 AGU 01 160 27 31 22 110 149 13 9 8
QTDF 200 • 27 AGU 01 200 27 35 26 150 188,5 17 13 12
QTDF 250 • 30 AGU 01 250 30 40 29 180 236 18 16 15
QTDF 320 • 42 AGU 01 320 42 50 36,5 240 306 23 21 20
