The Parker Prädifa piston guide rings profile FP are split rings which easy to install. They are extremely durable and allow simple piston or cylinder head designs. They were specially designed from filled materials and show a higher load-carrying capacity than traditional compounds. The rings can be used in all current hydraulic media.
Field of application:
Guidance of Parker Praedifa pistons and piston rods in hydraulic
cylinders.
Temperature range: – 30 bis + 100 °C
Admissible specific load: q = 30 N/mm2
Surface speed: ≤ 5 m/s
Installation:
For surface see “General Installation Guidelines”.
For nonferrous and light metal pistons please
use our guidance tape profile F2 (see pneumatic catalog).

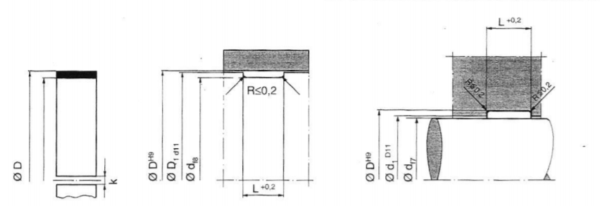

The mounted rings must show a gap ”k“ . For dimensions see table opposite. The calculation of the permissible radial force is based on the projected area D • L (cylinder) or d.L (rod). For example permissible radial force FR fora cylinder diameter of 80 mm:
FR =D•L•q
= 80 • 13 • 30 = 31200 N
= 3120 kp
Compound:
Special filled thermoplastic material. The different types of guide rings can vary slightly in terms of optical appearance as some are injection moulded, while others are lathe cut.
For special requirements (specific load, temperature, speed etc.) please contact our Contancy Service, so that suitable material or designs can be recommended.
Ordering specification (piston):
guide ring profile FP for a cylinder diameter of 100
mm.
Order code: FP 9035 W5019 94 x 100 x 10
FP = Profile reference
9035 = Dimension code
W5019 = Standard compound
d x D x L = Nominal dimensions
Ordering specification (rod):
guide ring profile FP for a rod diameter of 63 mm.
Order code: FP 6022 W5019 63 x 69 x 13
FP = Profile reference
6022 = Dimension code
W5019 = Standard compound
d x D x L = Nominal dimensions
| d | D | L | d1 | D1 | k | Item Number |
| 22 | 27 | 5,6 | 22,3 | 26,7 | 1 | FP 2027 W5019 |
| 31,8 | 38,1 | 13 | 32,1 | 37,8 | 1 | FP 3078 W5019 |
| 36 | 42 | 10 | 36,3 | 41,7 | 1 | FP 3058 W5019 |
| 40 | 46 | 10 | 40,4 | 45,6 | 1,5 | FP 4003 W5019 |
| 42 | 47 | 15 | 42,4 | 46,6 | 1,5 | FP 4020 W5019 |
| 44,4 | 50,8 | 9,5 | 44,8 | 50,4 | 1,5 | FP 4038 W5019 |
| 44,4 | 50,8 | 13 | 44,8 | 50,4 | 1,5 | FP 4046 W5019 |
| 45 | 51 | 13 | 45,4 | 50,6 | 1,5 | FP 4052 W5019 |
| 50 | 55 | 20 | 50,4 | 54,6 | 1,5 | FP 5004 W5019 |
| 50 | 56 | 13 | 50,4 | 55,6 | 1,5 | FP 5003 W5019 |
| 50,8 | 57,15 | 12,7 | 51,2 | 56,8 | 1,5 | FP 5007 W5019 |
| 55 | 60 | 20 | 55,4 | 59,6 | 2 | FP 5049 W5019 |
| 57 | 63 | 10 | 57,4 | 62,6 | 2 | FP 5063 W5019 |
| 57,2 | 63,5 | 9,5 | 57,6 | 63,1 | 2 | FP 5060 W5019 |
| 57,2 | 63,5 | 12,7 | 57,6 | 63,1 | 2 | FP 5058 W5019 |
| 58 | 63 | 13 | 58,4 | 62,6 | 2 | FP 6063 W5019 |
| 60 | 65 | 40 | 60,4 | 64,6 | 2 | FP 6000 W5019 |
| 60 | 66 | 13 | 60,4 | 65,6 | 2 | FP 6001 W5019 |
| 63 | 69 | 13 | 63,5 | 68,5 | 2,5 | FP 6022 W5019 |
| 63,5 | 69,85 | 13 | 64 | 69,4 | 2,5 | FP 6031 W5019 |
| 64 | 70 | 10 | 64,5 | 69,5 | 2,5 | FP 6036 W5019 |
| 69 | 75 | 10 | 69,5 | 74,5 | 2,5 | FP 6075 W5019 |
| 69,9 | 76,25 | 25,4 | 70,4 | 75,8 | 2,5 | FP 6097 W5019 |
| 69,9 | 76,25 | 13 | 70,4 | 75,8 | 2,5 | FP 6099 W5019 |
| 70 | 74 | 44,5 | 70,5 | 73,5 | 2,5 | FP 7024 W5019 |
| 70 | 75 | 40 | 70,5 | 74,5 | 2,5 | FP 7047 W5019 |
| 70 | 76 | 13 | 70,5 | 75,5 | 2,5 | FP 7076 W5019 |
| 74 | 80 | 10 | 74,5 | 79,5 | 2,5 | FP 7080 W5019 |
| 76,2 | 82,55 | 13 | 76,7 | 82,1 | 2,5 | FP 7062 W5019 |
| 79 | 85 | 10 | 79,5 | 84,5 | 2,5 | FP 7085 W5019 |
| 80 | 85 | 40 | 80,5 | 84,5 | 2,5 | FP 8004 W5019 |
| 80 | 86 | 13 | 80,5 | 85,5 | 2,5 | FP 8005 W5019 |
| 82,6 | 88,95 | 13 | 83,1 | 88,5 | 2,5 | FP 8025 W5019 |
| 84 | 90 | 10 | 84,5 | 89,5 | 2,5 | FP 8039 W5019 |
| 88,9 | 95,25 | 13 | 89,4 | 94,8 | 2,5 | FP 8093 W5019 |
| 89,3 | 95,25 | 13 | 89,8 | 94,8 | 2,5 | FP 8094 W5019 |
| 90 | 94 | 44,5 | 90,5 | 93,5 | 2,5 | FP 9001 W5019 |
| 90 | 96 | 13 | 90,5 | 95,5 | 2,5 | FP 9006 W5019 |
| 91,9 | 98 | 13 | 92,3 | 97,5 | 2,5 | FP 9019 W5019 |
| 94 | 100 | 10 | 94,6 | 98,4 | 4 | FP 9035 W5019 |
| 95,7 | 101,6 | 13 | 96,3 | 101 | 4 | FP 9053 W5019 |
| 100 | 106 | 13 | 100,6 | 105,4 | 4 | FP A004 W5019 |
| 100 | 106 | 20,5 | 100,6 | 105,4 | 4 | FP A005 W5019 |
| 101,6 | 107,95 | 13 | 102,2 | 107,4 | 4 | FP A016 W5019 |
| 104 | 110 | 13 | 104,6 | 109,4 | 4 | FP A040 W5019 |
| 109 | 115 | 13 | 109,6 | 114,4 | 4 | FP A090 W5019 |
| 110 | 115 | 40 | 110,5 | 114,5 | 4 | FP B005 W5019 |
| 114,3 | 120,65 | 9,5 | 114,9 | 120,1 | 4 | FP B036 W5019 |
| 119 | 125 | 13 | 119,5 | 124,5 | 4 | FP B098 W5019 |
| 120 | 125 | 9,7 | 120,6 | 124,4 | 4 | FP C002 W5019 |
| 120 | 126 | 13 | 120,6 | 125,4 | 4 | FP C004 W5019 |
| 125 | 131 | 13 | 125,6 | 130,4 | 4 | FP C051 W5019 |
| 133,4 | 139,75 | 13 | 134 | 139,2 | 4 | FP D024 W5019 |
| 133,4 | 139,75 | 19,05 | 134 | 139,2 | 4 | FP D092 W5019 |
| 133,5 | 139,7 | 13 | 134,1 | 139,1 | 4 | FP D034 W5019 |
| 134 | 140 | 13 | 134,5 | 139,5 | 4 | FP D040 W5019 |
| 139,7 | 146,05 | 13 | 140,3 | 145,5 | 4 | FP D093 W5019 |
| 144 | 150 | 13 | 144,5 | 149,5 | 4 | FP E044 W5019 |
| 152,6 | 158,75 | 13 | 153,2 | 158,2 | 4 | FP F019 W5019 |
| 154 | 160 | 13 | 154,6 | 159,4 | 4 | FP G005 W5019 |
| 158,8 | 165,15 | 13 | 159,4 | 164,6 | 4 | FP F080 W5019 |
| 165,5 | 171,5 | 25,4 | 166,2 | 170,8 | 5 | FP G058 W5019 |
| 171,5 | 177,85 | 13 | 172,2 | 177,2 | 5 | FP H015 W5019 |
| 174 | 180 | 13 | 174,7 | 179,3 | 5 | FP H042 W5019 |
| 184 | 190 | 13 | 184,7 | 189,3 | 5 | FP J030 W5019 |
| 184,1 | 190,5 | 19,1 | 184,8 | 189,8 | 5 | FP J043 W5019 |
| 184,2 | 190,5 | 19,05 | 184,9 | 189,8 | 5 | FP J043 W5019 |
| 184,6 | 190,5 | 15,9 | 185,3 | 189,8 | 5 | FP J054 W5019 |
| 196,9 | 203,25 | 13 | 197,6 | 202,6 | 5 | FP K060 W5019 |
| 260,4 | 266,75 | 13 | 261,2 | 266 | 6 | FP 0007 W5019 |
| 280,5 | 285 | 13 | 281,3 | 284,2 | 6 | FP P128 W5019 |
