The Parker Prädifa cylinder sealing set profile NO is manufactured in two parts and consists of a fabric reinforced symmetrical lip ring and a back-up ring made of fabric reinforced hard rubber. The lip ring has integral support thus obviating the necessity for separate header rings as found in normal seal ring arrangements. The header ring prevents extrusion damage to the lip ring occurring in the clearance between the piston and the cylinder wall.
The sealing set offers the following advantages in heavy hydraulic equipment:
- High resistance to extrusion through a massive fabric reinforced header ring.
- Due to the favourable profile design, there is no dynamic pressure build-up between the sealing elements in double-acting cylinders.
- Through the choice of suitable materials, the seal is adapted for various working media.
- Excellent sealing function at high surface speeds or under high pressures.
- Long working life keeps maintenance costs down.
Field of application:
Working pressure: ≤ 500 bar
Working temperature: — 40 to + 100 °C
Surface speed: ≤ 1 m/s
Preferably used for double-acting pistons in hydraulic cylinders.
Installation:

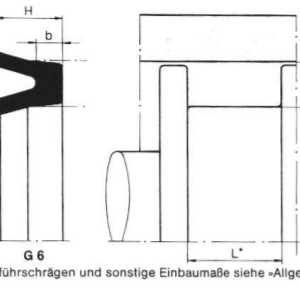

Groove dimensions agree with those for the Parker Praedifa profile NG series. It is to note that the sealing set must not be drawn over sharp edges or threads during assembly. This avoids damaging the lips. The value for, »e« are maximum values for completely worn out wear rings (see chapter A “Gap sizes”).
Compounds:
Sealing ring: NBR-based hard fabric reinforced rubber (05015/Q5016).
Back-up ring: NBR-based hard fabric reinforced rubber (05021/05022).
For special requirements (pressure, temperature, speed etc.) please contact our Consultancy Service, so that suitable materials and/or designs can be recommended.
D | d | H | Item number |
32 | 20 | 7,5 | N0 0032 00361 |
32 | 22 | 6,5 | N0 0033 00361 |
36 | 24 | 7,5 | N0 0036 00361 |
40 | 25 | 9,5 | N0 0040 00361 |
40 | 28 | 8 | N0 0043 00361 |
45 | 30 | 9,5 | N0 0045 00361 |
50 | 32 | 12 | N0 0046 00361 |
50 | 35 | 9,5 | N0 0050 00361 |
50 | 36 | 9 | N0 0052 00361 |
55 | 40 | 9,5 | N0 0055 00361 |
60 | 45 | 9,5 | N0 0060 00361 |
63 | 45 | 9,7 | N0 0062 00361 |
63 | 48 | 9,5 | N0 0063 00361 |
70 | 50 | 12,5 | N0 0070 00361 |
75 | 55 | 12,5 | N0 0075 00361 |
80 | 60 | 12,5 | N0 0080 00361 |
80 | 63 | 13,2 | N0 0083 00361 |
90 | 70 | 12,5 | N0 0090 00361 |
95 | 75 | 12,5 | N0 0095 00361 |
100 | 80 | 12,5 | N0 0100 00361 |
105 | 85 | 12,5 | N0 0107 00361 |
110 | 90 | 12,5 | N0 0110 00361 |
115 | 90 | 15,5 | N0 0114 00361 |
115 | 95 | 12,5 | N0 0115 00361 |
120 | 1 00 | 12,5 | N0 0120 00361 |
125 | 1 00 | 15,5 | N0 0125 00361 |
125 | 1 05 | 13 | N0 0132 00361 |
130 | 1 05 | 17 | N0 0135 00361 |
140 | 1 10 | 20 | N0 0136 00361 |
140 | 1 15 | 15,5 | N0 0140 00361 |
140 | 1 20 | 15 | N0 0145 00361 |
140 | 120 | 15,5 | N0 0146 00361 |
150 | 120 | 19 | N0 0150 00361 |
160 | 130 | 19 | N0 0160 00361 |
160 | 130 | 21,5 | N0 0162 00361 |
160 | 135 | 16 | N0 0164 00361 |
160 | 135 | 19 | N0 0165 00361 |
170 | 140 | 20 | N0 0172 00361 |
180 | 150 | 19 | N0 0180 00361 |
190 | 160 | 20 | N0 0190 00361 |
200 | 170 | 19 | N0 0200 00361 |
220 | 190 | 19 | N0 0220 00361 |
225 | 195 | 19 | N0 0225 00361 |
240 | 210 | 19 | N0 0240 00361 |
250 | 220 | 19 | N0 0250 00361 |
260 | 230 | 19 | N0 0260 00361 |
280 | 250 | 19 | N0 0280 00361 |
300 | 270 | 19 | N0 0300 00361 |
