Parker Prädifa Wiper Ultrathan® A1 PUR

Get a quote
Category:

The function of the Parker Prädifa ULTRATHAN© wiper rings profile A1 is to prevent dust, dirt, grains of sand and metal swarf from penetrating. This is achieved by a special design that largely prevents the development of chamfers, protects the guiding parts, and extends the working life of the seals. Oversized diameters ensure a tight fit in the groove thus preventing the penetration of foreign particles and dampness.

This Parker Praedifa wiper ring profile Al provides a technically accurate closure at the cylinder; no screwrings and brackets are required. No close tolerances are necessary and no metal inserts. The corrosion which may occur with metal-cased wipers will be prevented. For the groove close tolerances are not required. If minor quantities or other diameters are required, these may be cut from the next largest size having the same cross-section (for further instruction please refer to the passage “Installation”).

Field of application:

ULTRATHAW wiper rings profile Al are for axially operated rods in hydraulic
plungers and rodguidances.

Working                    – 35 to + 100 °C in mir

temperature:           + 5 to + 60 °C in HFA/I

Surface speed:         ≤ 2 m/s

Installation:

The ULTRATHAN5′ wiper ring profile A snapped into an easy to produce house wiper lip should not come into contact with the rod eye or their connecting pieces. It is recommended that the wiper lip be put outside the housing so that the dirt can get away.

Compound:

The compound P5008 is a Parker mates on polyurethane with a Shore hardness 93 A. Its main advantages in comparison polyurethane materials currently availat market are the increased heat resistanc improved resistance against hydrolysis.

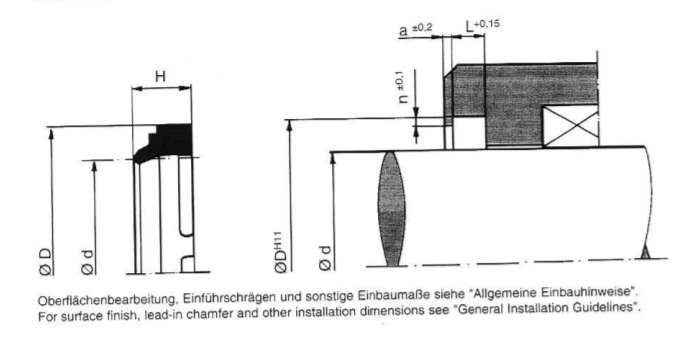

d D H L a n Item number
12 20 7 4 1 1 A1 1010 P5008
14 22 7 4 1 1 A1 1015 P5008
16 24 7 4 1 1 A1 1025 P5008
18 26 7 4 1 1 A1 1035 P5008
20 28 7 4 1 1 A1 2005 P5008
22 30 7 4 1 1 A1 2010 P5008
25 33 7 4 1 1 A1 2025 P5008
28 36 7 4 1 1 A1 2035 P5008
30 38 7 4 1 1 A1 3005 P5008
32 40 7 4 1 1 A1 3010 P5008
35 43 7 4 1 1 A1 3025 P5008
36 44 7 4 1 1 A1 3030 P5008
38 46 7 4 1 1 A1 3035 P5008
40 48 7 4 1 1 A1 4005 P5008
42 50 7 4 1 1 A1 4015 P5008
45 53 7 4 1 1 A1 4030 P5008
48 36 7 4 1 1 A1 4050 P5008
50 58 7 4 1 1 A1 5005 P5008
50 52 10 5,5 1,5 1.5 A1 5010 P5008
55 63 7 4 1 1 A1 5035 P5008
56 64 7 4 1 1 Al 5040 P5008
60 68 7 4 1 1 A1 6005 P5008
62 70 7 4 1 1 A1 6015 P5008
63 71 7 4 1 1 A1 6020 P5008
65 73 7 4 1 1 A1 6030 P5008
70 78 7 4 1 1 A1 7005 P5008
70 82 10 5,5 1,5 1,5 Al 7008 P5008
75 83 7 4 1 1 A1 7025 P5008
78 86 7 4 1 1 A1 7040 P5008
80 88 7 4 1 1 A1 8002 P5008
80 92 10 5,5 1,5 1,5 A1 8003 P5008
85 93 7 4 1 1 A1 8025 P5008
90 98 7 4 1 1 A1 9005 P5008
95 103 7 4 1 1 A1 9030 P5008
97 105 7 4 1 1 A1 9045 P5008
100 108 7 4 1 1 A1  A010 P5008
105 117 10 5,5 1,5 1,5 A1  A035 P5008
110 122 10 5,5 1,5 1,5 A1  B010 P5008
120 132 10 5,5 1,5 1,5 A1  C010 P5008
125 137 10 5,5 1,5 1,5 A1 CO20 P5008
128 140 10 5,5 1,5 1,5 A1  C035 P5008
130 142 10 5,5 1,5 1,5 A1  D010 P5008
140 152 10 5,5 1,5 1,5 A1  E010 P5008
145 157 10 5,5 1,5 1,5 A1  E035 P5008
150 162 10 5,5 1,5 1,5 A1  F005 P5008
160 172 10 5,5 1,5 1,5 A1 G010 P5008
166 178 10 5,5 1,5 1,5 A1 G030 P5008
170 182 10 5,5 1,5 1,5 A1  H010 P5008
180 192 10 5,5 1,5 1,5 A1 J010 P5008
190 202 10 5,5 1,5 1,5 A1  K015 P5008
200 212 10 5,5 1,5 1,5 A1 L003 P5008
220 235 13 6,5 2 2 A1 M010 P5008
230 245 13 6,5 2 2 A1 M016 P5008
240 255 13 6,5 2 2 A1 N015 P5008
260 275 13 6,5 2 2 A1 O005 P5008
275 290 13 6,5 2 2 A1 O075 P5008
325 340 13 6,5 2 2 A1 Q032 P5008
