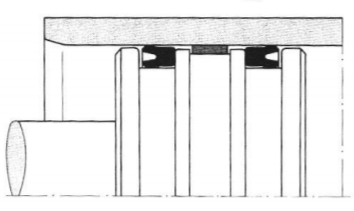

The Parker Prädifa PDF cylinder gasket ProIil GD has a symmetrical groove ring that consists of polyurethane material. Because of its special lip the sealing edge is below the total height “H”, so that in the
In most cases, support rings are unnecessary. The use of polyurethane makes the seal have a very high abrasion resistance. Therefore enables their use at the toughest operating conditions. Profile GD
has been developed as a cylinder seal, but can also be used as a rod seal.
Scope of application:
Operating pressure: ≤ 400 bar
Operating temperature: – 30 to + 80’C
Sliding speed: ≤ 0.5 m / s
In connection with water, HFA and
HFB fluids, the maximum temperature is limited to + 40’C.
Mainly for the sealing of hydraulic equipment.
Installation instructions:
The Parker Praedifa seals should be in the axial direction
Have play (see columns H and L) around to avoid damage. Do not leave sharp edges when installing
to be pulled. Usually the seals can be in closed grooves snapped into place.
Assembly aids to be used if the construction not allowed. Assembly aids to be used if the
Construction not allowed, open grooves need to be provided.
Materials:
The standard material is an elastomer basic polyurethane with a hardness from approx. 94 Shore A.
For special operational conditions (Pressure, temperature, speed
etc.) please contact our application engineering department
Order example:
PDF cylinder seal for a cylinder diameter of 50 mm.
Order number; GD U94 3046 –
50 x 30 x 10
GD: Profile name
U94 = standard plastic
3046 = dimension key

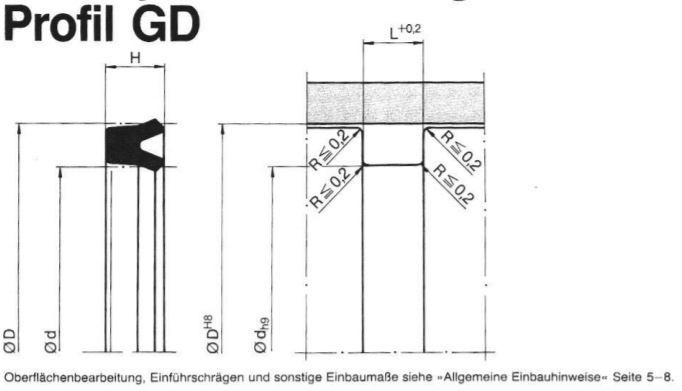

DxdxH: nominal dimensions
| D | d | H / | H | L | Item number | D | d | H / | H | L | Item number | |
| 20 | 10 | 8 | 5 | 9 | GD U94 1020 | 81 | 70 | 12 | 9,5 | 16 | GD U94 7081 | |
| 24 | 14 | 8 | 4 | 9 | GD U94 1424 | 83 | 63 | 12 | 8 | 13 | GD U94 6383 | |
| 25 | 15 | 8 | 5 | 9 | GD U94 1525 | 84 | 64 | 12 | 8 | 13 | GD U94 6484 | |
| 25 | 17 | 10 | 6 | 11 | GD U94 1725 | 85 | 65 | 12 | 7 | 13 | GD U94 6585 | |
| 30 | 20 | 8 | 4 | 9 | GD U94 2030 | 85 | 70 | 10 | 7 | 13 | GD U94 7085 | |
| 34 | 25 | 8 | 5 | 9 | GD U94 2534 | 85 | 75 | 12 | 5 | 11 | GD U94 7585 | |
| 35 | 25 | 10 | 6 | 11 | GD U94 2535 | 86 | 76 | 12 | 8 | 13 | GD U94 7686 | |
| 40 | 20 | 10 | 6 | 11 | GD U94 2510 | 90 | 70 | 12,5 | 8,5 | 13,5 | GD U94 7090 | |
| 40 | 25 | 10 | 6 | 11 | GD U94 2540 | 90 | 75 | 12 | 6 | 13 | GD U94 7590 | |
| 40 | 28 | 10 | 6 | 11 | GD U94 2840 | 90 | 80 | 12 | 8 | 13 | GD U94 8090 | |
| 40 | 30 | 10 | 6 | 11 | GD U94 3040 | 91 | 77 | 11 | 5,5 | 12 | GD U94 7791 | |
| 42 | 30 | 10 | 6 | 11 | GD U94 3042 | 95 | 75 | 12 | 7 | 13 | GD U94 7595 | |
| 45 | 30 | 10 | 6 | 11 | GD U94 3545 | 95 | 80 | 12 | 8 | 13 | GD U94 8095 | |
| 45 | 35 | 10 | 6 | 11 | GD U94 3045 | 95 | 85 | 12 | 8 | 13 | GD U94 8595 | |
| 46 | 36 | 10 | 5 | 11 | GD U94 3646 | 100 | 70 | 15 | 7,5 | 16 | GD U94 7099 | |
| 50 | 30 | 10 | 5 | 11 | GD U94 3046 | 100 | 80 | 12 | 7 | 13 | GD U94 8010 | |
| 50 | 40 | 10 | 6 | 11 | GD U94 4050 | 100 | 80 | 12 | 8,5 | 13,5 | GD U94 8099 | |
| 51 | 36 | 10 | 6 | 11 | GD U94 3651 | 100 | 85 | 12 | 7 | 13 | GD U94 8510 | |
| 55 | 40 | 9,5 | 5,5 | 10,5 | GD U94 4055 | 100 | 90 | 12 | 8 | 13 | GD U94 9010 | |
| 55 | 45 | 10 | 6 | 11 | GD U94 4515 | 105 | 95 | 12 | 8 | 13 | GD U94 9505 | |
| 60 | 40 | 10 | 5 | 11 | GD U94 4060 | 110 | 90 | 12 | 6 | 13 | GD U94 9011 | |
| 60 | 45 | 10 | 5 | 11 | GD U94 4559 | 110 | 95 | 12 | 8 | 13 | GD U94 9510 | |
| 60 | 50 | 10 | 6 | 11 | GD U94 5060 | 115 | 95 | 12 | 6 | 13 | GD U94 9515 | |
| 63 | 48 | 10 | 6 | 11 | GD U94 5363 | 115 | 100 | 12 | 7 | 13 | GD U94 4015 | |
| 63 | 53 | 11 | 5,5 | 12 | GD U94 4561 | 120 | 90 | 15 | 7,5 | 16 | GD U94 9012 | |
| 65 | 45 | 10 | 5 | 11 | GD U94 5066 | 120 | 100 | 12 | 7 | 13 | GD U94 A020 | |
| 65 | 50 | 9,5 | 5,5 | 10,5 | GD U94 5065 | 125 | 100 | 12 | 7 | 13 | GD IJ94 A025 | |
| 65 | 50 | 10 | 5 | 11 | GD U94 5565 | 125 | 105 | 15 | 10 | 16 | GD U94 A505 | |
| 65 | 55 | 10 | 6,5 | 11 | GD U94 5565 | 125 | 110 | 15 | 8 | 16 | GD U94 B025 | |
| 65 | 55 | 12 | 8 | 13 | GD U94 5566 | 130 | 100 | 19 | 9 | 20 | GD U94 A030 | |
| 66 | 55 | 11 | 5,5 | 12 | GD U945567 | 130 | 110 | 15 | 10 | 16 | GD U94 B030 | |
| 66 | 56 | 11 | 5,5 | 12 | GD U94 5666 | 130 | 115 | 15 | 10 | 16 | GD U94 B530 | |
| 70 | 50 | 10 | 5 | 11 | GD U94 5070 | 135 | 115 | 15 | 8 | 16 | GD U94 8535 | |
| 70 | 50 | 12 | 8,5 | 13,5 | GD U94 5071 | 140 | 115 | 15 | 9 | 16 | GD U94 B540 | |
| 70 | 55 | 12 | 8 | 13 | GD U94 5570 | 140 | 120 | 15 | 8 | 16 | GD U94 C040 | |
| 75 | 55 | 12 | 7 | 13 | GD U94 5575 | 140 | 125 | 15 | 10 | 16 | GD U94 C540 | |
| 75 | 60 | 12 | 8 | 13 | GD U94 6075 | 145 | 125 | 10 | 5 | 11 | GD U94 C545 | |
| 75 | 65 | 12 | 8 | 13 | GD U94 6575 | 145 | 130 | 15 | 10 | 16 | GD U94 D045 | |
| 76 | 56 | 12 | 8 | 13 | GD U94 5676 | 147 | 132 | 10 | 6 | 11 | GD U94 D022 | |
| 80 | 60 | 10 | 5 | 11 | GD U94 6080 | 150 | 130 | 15 | 9 | 16 | GD U94 D016 | |
| 80 | 60 | 12 | 7 | 13 | GD U94 608’1 | 160 | 140 | 15 | 10 | 16 | GD U94 E060 | |
| 80 | 65 | 15 | 8 | 13 | GD U94 6580 | 220 | 200 | 15 | 10 | 16 | GD U94 L020 |
