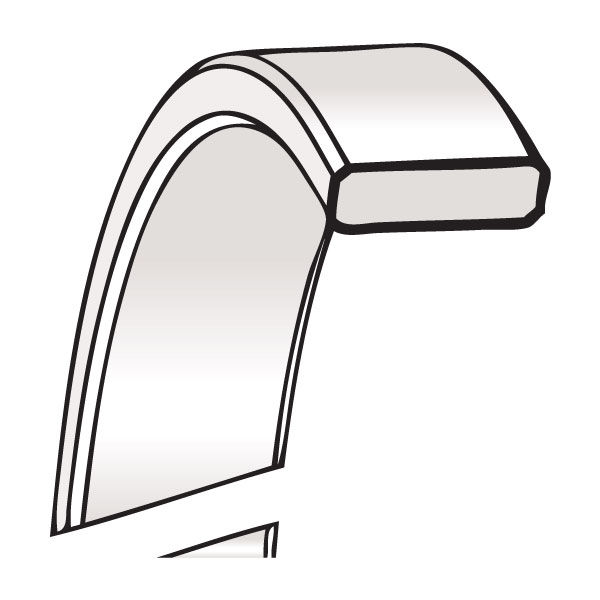

HIS WEAR RING



DESCRIPTION

The HIS Wear Ring is meant to keep all the parts of the cylinder aligned (the rod with the head, the piston with the bore). They play an important role as they help the rod seal, the wiper and the piston seal in working without any misalignments and at the same time they prevent any contact between the metal parts. The material, which has a very low friction factor, does not cause load losses (linearity). It endures deformations under heavy loads, as the softening point is close to the fusion point (it works at 115 ° C ).



To facilitate the choice of the piston or rod guide, we suggest the use of this formula to find the wear ring length.



wear ring formula artic seals



TECHNICAL DATA

His Wear Ring

Speed: <0,8 m/s

Temperature: from -40°C to +115°C

Radial load Q: 35 N/mm2 at a temperature of 60°C

Fluids: mineral oils and fluids



MATERIAL

The material of the HIS Wear Ring is a polyacetalic resin reinforced with fibreglass. For working temperatures higher than 115 ° C, the material is a reinforced polyamidic resin. Compound reference for temp < 115 ° C: R0 Compound reference for temp > 115 ° C: R1



ASSEMBLY

The assembly is done easily as the wear ring is cut and extremely elastic. The presence of chamfers on both sides facilitates the insertion of the rod.



DRAWING HIS WEAR RING

his waer ring artic seals



ARTICLES HIS WEAR RING

dh9 D-0          +0,5 E+0,2 C ART  /  ITEM
12,0 16,0 9,6 >  3 HIS 0120 0160 096 R0
14,0 18,0 9,6 >  3 HIS 0140 0180 096 R0
16,0 20,0 9,6 >  3 HIS 0160 0200 096 R0
18,0 22,0 9,6 >  3 HIS 0180 0220 096 R0
20,0 24,0 9,6 >  3 HIS 0200 0240 096 R0
20,0 25,0 5,6 >  3 HIS 0200 0250 056 R0
20,0 25,0 9,7 >  3 HIS 0200 0250 097 R0
22,0 26,0 9,6 >  3 HIS 0220 0260 096 R0
22,0 27,0 5,6 >  3 HIS 0220 0270 056 R0
22,0 27,0 9,7 >  3 HIS 0220 0270 097 R0
25,0 29,0 9,6 >  3 HIS 0250 0290 096 R0
25,0 30,0 5,6 >  3 HIS 0250 0300 056 R0
25,0 30,0 9,7 >  3 HIS 0250 0300 097 R0
26,0 30,0 9,6 >  3 HIS 0260 0300 096 R0
27,0 32,0 5,6 >  3 HIS 0270 0320 056 R0
27,0 32,0 9,7 >  3 HIS 0270 0320 097 R0
28,0 32,0 9,6 >  3 HIS 0280 0320 096 R0
28,0 33,0 5,6 >  3 HIS 0280 0330 056 R0
28,0 33,0 9,7 >  3 HIS 0280 0330 097 R0
30,0 34,0 9,6 >  3 HIS 0300 0340 096 R0
30,0 35,0 5,6 >  3 HIS 0300 0350 056 R0
30,0 35,0 9,7 >  3 HIS 0300 0350 097 R0
32,0 36,0 9,6 >  3 HIS 0320 0360 096 R0
32,0 37,0 5,6 >  3 HIS 0320 0370 056 R0
32,0 37,0 9,7 >  3 HIS 0320 0370 097 R0
35,0 39,0 9,6 >  3 HIS 0350 0390 096 R0
35,0 40,0 5,6 >  3 HIS 0350 0400 056 R0
35,0 40,0 9,7 >  3 HIS 0350 0400 097 R0
36,0 40,0 9,6 >  3 HIS 0360 0400 096 R0
36,0 41,0 5,6 >  3 HIS 0360 0410 056 R0
36,0 41,0 9,7 >  3 HIS 0360 0410 097 R0
38,0 42,0 9,6 >  3 HIS 0380 0420 096 R0
40,0 44,0 9,6 >  3 HIS 0400 0440 096 R0
40,0 45,0 5,6 >  3 HIS 0400 0450 056 R0
40,0 45,0 9,7 >  3 HIS 0400 0450 097 R0
40,0 45,0 15,0 >  3 HIS 0400 0450 150 R0
42,0 46,0 9,6 >  3 HIS 0420 0460 096 R0
43,0 48,0 5,6 >  3 HIS 0430 0480 056 R0
45,0 50,0 5,6 >  3 HIS 0450 0500 056 R0
45,0 50,0 9,7 >  3 HIS 0450 0500 097 R0
45,0 50,0 15,0 >  3 HIS 0450 0500 150 R0
45,0 51,0 9,6 >  3 HIS 0450 0510 096 R0
46,0 52,0 9,6 >  3 HIS 0460 0520 096 R0
47,0 52,0 5,6 >  3 HIS 0470 0520 056 R0
47,0 52,0 9,7 >  3 HIS 0470 0520 097 R0
48,0 54,0 9,6 >  3 HIS 0480 0540 096 R0
50,0 55,0 5,6 >  3 HIS 0500 0550 056 R0
50,0 55,0 9,7 >  3 HIS 0500 0550 097 R0
50,0 55,0 15,0 >  3 HIS 0500 0550 150 R0
50,0 56,0 9,6 >  3 HIS 0500 0560 096 R0
55,0 60,0 5,6 >  3 HIS 0550 0600 056 R0
55,0 60,0 9,7 >  3 HIS 0550 0600 097 R0
55,0 60,0 15,0 >  3 HIS 0550 0600 150 R0
55,0 61,0 9,6 >  3 HIS 0550 0610 096 R0
56,0 61,0 5,6 >  3 HIS 0560 0610 056 R0
56,0 61,0 9,7 >  3 HIS 0560 0610 097 R0
56,0 62,0 12,8 >  3 HIS 0560 0620 128 R0
58,0 63,0 5,6 >  3 HIS 0580 0630 056 R0
58,0 63,0 9,7 >  3 HIS 0580 0630 097 R0
60,0 65,0 5,6 >  3 HIS 0600 0650 056 R0
60,0 65,0 9,7 >  3 HIS 0600 0650 097 R0
60,0 65,0 15,0 >  3 HIS 0600 0650 150 R0
60,0 66,0 12,8 >  3 HIS 0600 0660 128 R0
63,0 68,0 5,6 >  3 HIS 0630 0680 056 R0
63,0 68,0 9,7 >  3 HIS 0630 0680 097 R0
63,0 69,0 12,8 >  3 HIS 0630 0690 128 R0
65,0 70,0 5,6 >  3 HIS 0650 0700 056 R0
65,0 70,0 9,7 >  3 HIS 0650 0700 097 R0
65,0 70,0 15,0 >  3 HIS 0650 0700 150 R0
65,0 71,0 12,8 >  3 HIS 0650 0710 128 R0
67,0 72,0 5,6 >  3 HIS 0670 0720 056 R0
70,0 75,0 5,6 >  3 HIS 0700 0750 056 R0
70,0 75,0 9,7 >  3 HIS 0700 0750 097 R0
70,0 75,0 15,0 >  3 HIS 0700 0750 150 R0
70,0 76,0 12,8 >  3 HIS 0700 0760 128 R0
72,0 78,0 12,8 >  3 HIS 0720 0780 128 R0
75,0 80,0 5,6 >  4 HIS 0750 0800 056 R0
75,0 80,0 9,7 >  4 HIS 0750 0800 097 R0
75,0 80,0 15,0 >  4 HIS 0750 0800 150 R0
75,0 81,0 12,8 >  4 HIS 0750 0810 128 R0
76,0 82,0 12,8 >  4 HIS 0760 0820 128 R0
80,0 85,0 5,6 >  4 HIS 0800 0850 056 R0
80,0 85,0 9,7 >  4 HIS 0800 0850 097 R0
80,0 85,0 15,0 >  4 HIS 0800 0850 150 R0
80,0 86,0 12,8 >  4 HIS 0800 0860 128 R0
85,0 90,0 5,6 >  4 HIS 0850 0900 056 R0
85,0 90,0 9,7 >  4 HIS 0850 0900 097 R0
85,0 90,0 15,0 >  4 HIS 0850 0900 150 R0
85,0 91,0 12,8 >  4 HIS 0850 0910 128 R0
90,0 95,0 5,6 >  4 HIS 0900 0950 056 R0
90,0 95,0 9,7 >  4 HIS 0900 0950 097 R0
90,0 95,0 15,0 >  4 HIS 0900 0950 150 R0
90,0 96,0 12,8 >  4 HIS 0900 0960 128 R0
92,0 97,0 5,6 >  4 HIS 0920 0970 056 R0
95,0 100,0 5,6 >  4 HIS 0950 1000 056 R0
95,0 100,0 9,7 >  4 HIS 0950 1000 097 R0
95,0 100,0 15,0 >  4 HIS 0950 1000 150 R0
95,0 100,0 20,0 >  4 HIS 0950 1000 200 R0
95,0 100,0 25,0 >  4 HIS 0950 1000 250 R0
95,0 101,0 12,8 >  4 HIS 0950 1010 128 R0
100,0 105,0 5,6 >  4 HIS 1000 1050 056 R0
100,0 105,0 9,7 >  4 HIS 1000 1050 097 R0
100,0 105,0 15,0 >  4 HIS 1000 1050 150 R0
100,0 105,0 20,0 >  4 HIS 1000 1050 200 R0
100,0 105,0 25,0 >  4 HIS 1000 1050 250 R0
100,0 106,0 12,8 >  4 HIS 1000 1060 128 R0
105,0 110,0 9,7 >  4 HIS 1050 1100 097 R0
105,0 110,0 15,0 >  4 HIS 1050 1100 150 R0
105,0 110,0 20,0 >  4 HIS 1050 1100 200 R0
105,0 110,0 25,0 >  4 HIS 1050 1100 250 R0
105,0 111,0 12,8 >  4 HIS 1050 1110 128 R0
110,0 115,0 9,7 >  4 HIS 1100 1150 097 R0
110,0 115,0 15,0 >  4 HIS 1100 1150 150 R0
110,0 115,0 20,0 >  4 HIS 1100 1150 200 R0
110,0 115,0 25,0 >  4 HIS 1100 1150 250 R0
110,0 116,0 12,8 >  4 HIS 1100 1160 128 R0
115,0 120,0 9,7 >  4 HIS 1150 1200 097 R0
115,0 120,0 15,0 >  4 HIS 1150 1200 150 R0
115,0 120,0 20,0 >  4 HIS 1150 1200 200 R0
115,0 120,0 25,0 >  4 HIS 1150 1200 250 R0
115,0 121,0 12,8 >  4 HIS 1150 1210 128 R0
120,0 125,0 9,7 >  4 HIS 1200 1250 097 R0
120,0 125,0 15,0 >  4 HIS 1200 1250 150 R0
120,0 125,0 20,0 >  4 HIS 1200 1250 200 R0
120,0 125,0 25,0 >  4 HIS 1200 1250 250 R0
120,0 126,0 12,8 >  4 HIS 1200 1260 128 R0
125,0 130,0 15,0 >  4 HIS 1250 1300 150 R0
125,0 130,0 20,0 >  4 HIS 1250 1300 200 R0
125,0 130,0 25,0 >  4 HIS 1250 1300 250 R0
125,0 131,0 12,8 >  4 HIS 1250 1310 128 R0
130,0 135,0 15,0 >  4 HIS 1300 1350 150 R0
130,0 135,0 20,0 >  4 HIS 1300 1350 200 R0
130,0 135,0 25,0 >  4 HIS 1300 1350 250 R0
130,0 136,0 12,8 >  4 HIS 1300 1360 128 R0
135,0 140,0 15,0 >  4 HIS 1350 1400 150 R0
135,0 140,0 20,0 >  4 HIS 1350 1400 200 R0
135,0 140,0 25,0 >  4 HIS 1350 1400 250 R0
135,0 141,0 12,8 >  4 HIS 1350 1410 128 R0
140,0 145,0 15,0 >  4 HIS 1400 1450 150 R0
140,0 145,0 20,0 >  4 HIS 1400 1450 200 R0
140,0 145,0 25,0 >  4 HIS 1400 1450 250 R0
140,0 146,0 12,8 >  4 HIS 1400 1460 128 R0
145,0 150,0 15,0 >  4 HIS 1450 1500 150 R0
145,0 150,0 20,0 >  4 HIS 1450 1500 200 R0
145,0 150,0 25,0 >  4 HIS 1450 1500 250 R0
145,0 151,0 12,8 >  4 HIS 1450 1510 128 R0
150,0 156,0 12,8 >  4 HIS 1500 1560 128 R0
155,0 161,0 19,2 >  4 HIS 1550 1610 192 R0
160,0 166,0 19,2 >  5 HIS 1600 1660 192 R0
165,0 171,0 19,2 >  5 HIS 1650 1710 192 R0
170,0 176,0 19,2 >  5 HIS 1700 1760 192 R0
175,0 181,0 19,2 >  5 HIS 1750 1810 192 R0
180,0 186,0 19,2 >  5 HIS 1800 1860 192 R0
185,0 191,0 19,2 >  5 HIS 1850 1910 192 R0
190,0 196,0 19,2 >  5 HIS 1900 1960 192 R0
195,0 201,0 19,2 >  5 HIS 1950 2100 192 R0
200,0 206,0 19,2 >  5 HIS 2000 2060 192 R0
205,0 211,0 19,2 >  5 HIS 2050 2110 192 R0
210,0 216,0 19,2 >  5 HIS 2100 2160 192 R0
215,0 221,0 19,2 >  5 HIS 2150 2210 192 R0
220,0 226,0 19,2 >  5 HIS 2200 2260 192 R0
225,0 231,0 19,2 >  5 HIS 2250 2310 192 R0
230,0 236,0 19,2 >  5 HIS 2300 2360 192 R0
235,0 241,0 19,2 >  5 HIS 2350 2410 192 R0
240,0 246,0 19,2 >  5 HIS 2400 2460 192 R0
245,0 251,0 19,2 >  5 HIS 2450 2510 192 R0
