BWS WIPER



DESCRIPTION

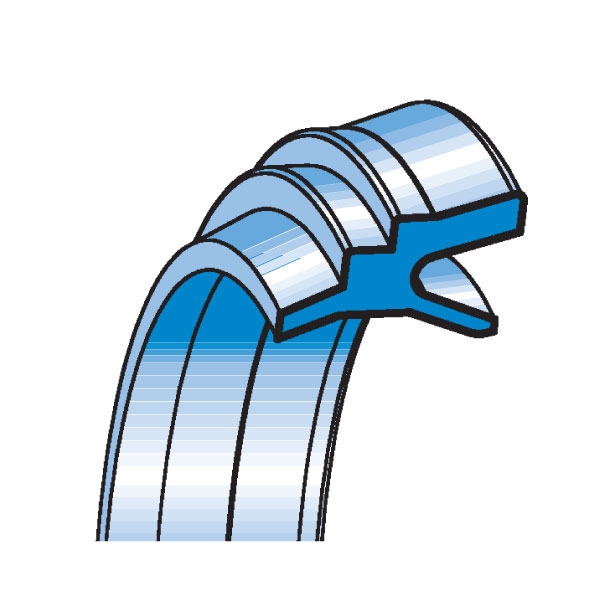

The BWS wiper combines an asymmetric lip seal profile with a wiper. On the sealing lip the BWS Wiper has a radius allowing greater smoothness and on the static side the reduced size step facilitates installation, especially for small diameters. The scraping part has a very thin lip so as not to affect the stick-slip effect in the cylinder movement.



TECHNICAL DATA

Pressure: <20 bar

Speed: <1 m/s

Temperature: from -30° C up to + 90°C

Fluids: air with or without lubrication, mineral oils or grease



MATERIAL

Standard polyurethane 90 Sh A. Standard compound reference: B0
Alternative polyurethane 85 Sh A. Alternative compound reference: A0



ASSEMBLY

The housing where the wiper is to be installed should not have any cutting edges or flash so as to minimise the seal wear during operation.



Warning: for heavy duty applications showing misalignments or imbalance and with all diameters above ø 16 mm, during installation all the back of the wiper base should be hooked to the housing and not just to the step. (see following application drawings)

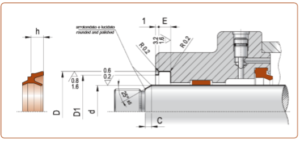

DRAWING BWS WIPER

bws wiper artic seals



ARTICLES BWS WIPER

df9 Dh10 toll H10 D2 h1 E ART/ITEM
4,0 8,1 +0.058/0 6,70 2,8 3,0 BWS 0040 0081 028 B0
6,0 11,1 +0.070/0 9,10 3,3 3,6 BWS 0060 0111 033 B0
8,0 14,1 +0.070/0 12,10 3,3 3,6 BWS 0080 0141 033 B0
10,0 16,1 +0.070/0 14,10 3,8 4,2 BWS 0100 0161 038 B0
12,0 18,1 +0.084/0 15,10 3,8 4,2 BWS 0120 0181 038 B0
12,0 20,0 +0.084/0 18,00 3,6 4,0 BWS 0120 0200 036 B0
14,0 22,0 +0.084/0 20,00 3,6 4,0 BWS 0140 0220 036 B0
16,0 24,0 +0.084/0 22,00 3,6 4,0 BWS 0160 0240 036 B0



df9 DH10 toll H10 D2 h1 E ART/ITEM
18 26 +0,084/0 21,5 5,6 6,0 BWS 0180 0260 056 B0
20 28 +0,084/0 23,5 5,6 6,0 BWS 0200 0280 056 B0
22 30 +0,084/0 25,5 5,6 6,0 BWS 0220 0300 056 B0
25 33 +0,100/0 28,5 5,6 6,0 BWS 0250 0330 056 B0
28 36 +0,100/0 31,5 5,6 6,0 BWS 0280 0360 056 B0
30 38 +0,100/0 33,5 5,6 6,0 BWS 0300 0380 056 B0
32 40 +0,100/0 35,5 5,6 6,0 BWS 0320 0400 056 B0
35 43 +0,100/0 38,5 5,6 6,0 BWS 0350 0430 056 B0
36 44 +0,100/0 39,5 5,6 6,0 BWS 0360 0440 056 B0
40 46 +0,100/0 43,0 4,3 4,8 BWS 0400 0460 043 BO
40 48 +0,100/0 43,5 5,6 6,0 BWS 0400 0480 056 B0
42 50 +0,100/0 45,5 5,6 6,0 BWS 0420 0500 056 B0
45 53 +0,120/0 48,5 5,6 6,0 BWS 0450 0530 056 B0
50 58 +0,120/0 53,5 5,6 6,0 BWS 0500 0580 056 B0
55 63 +0.120/0 58,5 5,6 6,0 BWS 0550 0630 056 BO
56 64 +0.120/0 59,5 5,6 6,0 BWS 0560 0640 056 BO
60 68 +0.120/0 63,5 5,6 6,0 BWS 0600 0680 056 BO
100 108 +0.120/0 103,5 5,6 6,0 BWS 1000 1080 056 BO
