Claron Polyseal Piston Bearing Rings EBR & IBR

Get a quote
Category:

Design:

Claron EBR & IBR bearing rings are designed for use on Pistons or Rods to align Rod and Piston and to prevent metal to metal

contact. This bearing is precision moulded from a high performance grade of Polyacetal. These bearing rings are Butt split to facilitate assembly, and to allow the passage of fluid. See the ‘selection of bearing rings’ at the beginning of this section for further application details.

Operating conditions:

See graph at the beginning of this section for load capacity values

POM Polyacetal
DIN Hydraulic Fluid Description °C
H Mineral oil without additives 100
H-L Mineral Fluid with anti corrosion and anti ageing additives 100
H-LP Mineral oil as HL plus additives reducing wear, raising load 100
H-LPD Mineral oil as H-LP but with detergents and dispersants 100
H-V Mineral oil as H-LP plus improved viscosity temp. 100
HFA E Emulsions of mineral oil in water. Water content 80-95% 55
HFA S Synthetic oil in water. Water content 80-95% 55
HFB Emulsions of water in mineral oil. Water content 40% 60
HFC Aqueous polymer solutions. Water content 35% 60
HFD R Phosphoric acid ester based 80
HFD S Chlorinated hydrocarbon based 80
HFD T Mixtures of HFD R and HFD S 80
HEPG Polyglycol based 100
HETG Vegetable Oil based 60
HEES Fully synthetic ester based 100

Housing:

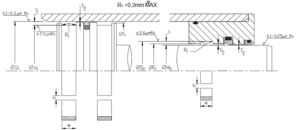

For surface finish and recommended lead in chamfers refer to the illustration below. For housing dimensions and machining tolerances refer to the catalogue page of selected seal.

Refer to Appendix 4 for value of tolerance symbols.

Fitting:

For the bearing to function correctly, it is important that care be taken in fitting the bearing within its housing.

For a detailed checklist, refer to Appendix 3.

Part Number                   H9 £100mm +0.0 -0.05 ±0.20 ±0.40
ØD1 >100mm +0.0 -0.08
Ød1		 L1 ØG
EBR 25 25 19 10,0 22
EBR 32 32 26 10,0 29
EBR 40 40 34 10,0 37
EBR 46 46 40 10,0 43
EBR 50 50 44 10,0 47
EBR 50/1 50 44 13,0 47
EBR 55 55 49 13,0 52
EBR 60 60 54 13,0 57
EBR 63 63 57 13,0 60
EBR 65 65 59 13,0 62
EBR 70 70 64 13,0 67
EBR 75 75 69 13,0 72
EBR 80 80 74 13,0 77
EBR 90 90 84 13,0 87
EBR 100 100 94 13,0 97
EBR 110 110 104 13,0 107
EBR 115 115 109 13,0 112
EBR 120 120 114 13,0 117
EBR 120/1 120 114 19,5 117
EBR 125 125 119 13,0 122
EBR 125/1 125 119 19,5 122
EBR 127 127 121 13,0 124
EBR 130 130 124 13,0 127
EBR 140 140 134 13,0 137
EBR 150 150 144 13,0 147
EBR 150/1 150 144 19,5 147
EBR 160 160 154 19,5 157
EBR 170 170 164 19,5 167
EBR 180 180 174 19,5 177
EBR 200 200 194 19,5 197
EBR 220 220 214 19,5 217
EBR 250 250 244 19,5 247
EBR 1000 1,000 0,764 0,393 0,882
EBR 1250 1,250 1,014 0,393 1,132
EBR 1500 1,500 1,264 0,393 1,382
EBR 1750 1,750 1,514 0,393 1,632
EBR 2000 2,000 1,764 0,393 1,882
EBR 2001/1 2,000 1,764 0,512 1,882
EBR 2250 2,250 2,014 0,512 2,132
EBR 2500 2,500 2,264 0,512 2,382
EBR 2625 2,625 2,389 0,512 2,507
EBR 2750 2,750 2,514 0,512 2,632
EBR 3000 3,000 2,764 0,512 2,882
EBR 3250 3,250 3,014 0,512 3,132
EBR 3500 3,500 3,264 0,512 3,382
EBR 3750 3,750 3,514 0,512 3,632
EBR 4000 4,000 3,764 0,512 3,882
EBR 4500 4,500 4,264 0,512 4,382
EBR 4500/1 4,500 4,264 0,768 4,382
EBR 5000 5,000 4,764 0,512 4,882
EBR 5500 5,500 5,264 0,512 5,382
EBR 6000 6,000 5,764 0,512 5,882
EBR 6500 6,500 6,264 0,768 6,382
EBR 7000 7,000 6,764 0,768 6,882
EBR 7250 7,250 7,014 0,768 7,132
EBR 7500 7,500 7,264 0,768 7,382
EBR 8000 8,000 7,764 0,768 7,882
EBR 8250/1 8,250 8,014 0,512 8,132
EBR 8500 8,500 8,264 0,768 8,382
EBR 9000 9,000 8,764 0,768 8,882
EBR 9500 9,500 9,264 0,768 9,382
IBR 020 20 26 10,0 23
IBR 022 22 28 10,0 25
IBR 025 25 31 10,0 28
IBR 028 28 34 10,0 31
IBR 032 32 38 10,0 35
IBR 036 36 42 10,0 39
IBR 040 40 46 10,0 43
IBR 045 45 51 13,0 48
IBR 045/2 45 51 10,0 48
IBR 050 50 56 13,0 53
IBR 056 56 62 13,0 59
IBR 060 60 66 13,0 63
IBR 063 63 69 13,0 66
IBR 070 70 76 13,0 73
IBR 075 75 81 13,0 78
IBR 080 80 86 13,0 83
IBR 090 90 96 13,0 93
IBR 095 95 101 13,0 98
IBR 100 100 106 13,0 103
IBR 100/1 100 106 20,5 103
IBR 110 110 116 13,0 113
IBR 120 120 126 13,0 123
IBR 125 125 131 13,0 128
IBR 125/1 125 131 25,5 128
IBR 130 130 136 13,0 133
IBR 140 140 146 13,0 143
IBR 145 145 151 13,0 148
IBR 1000 1,000 1,236 0,393 1,118
IBR 1125 1,125 1,361 0,393 1,243
IBR 1250 1,250 1,486 0,393 1,368
IBR 1375 1,375 1,611 0,393 1,493
IBR 1500 1,500 1,736 0,393 1,618
IBR 1750 1,750 1,986 0,393 1,868
IBR 1750/1 1,750 1,986 0,512 1,868
IBR 2000 2,000 2,236 0,512 2,118
IBR 2125/1 2,125 2,361 0,512 2,243
IBR 2250 2,250 2,486 0,512 2,368
IBR 2375 2,375 2,611 0,512 2,493
IBR 2500 2,500 2,736 0,512 2,618
IBR 2625 2,625 2,861 0,512 2,743
IBR 2750 2,750 2,986 0,512 2,868
IBR 3000 3,000 3,236 0,512 3,118
IBR 3250 3,250 3,486 0,512 3,368
IBR 3375 3,375 3,611 0,512 3,493
IBR 3500 3,500 3,736 0,512 3,618
IBR 3625 3,625 3,861 0,512 3,743
IBR 3750 3,750 3,986 0,512 3,868
IBR 4000 4,000 4,236 0,512 4,118
IBR 4250 4,250 4,486 0,512 4,368
IBR 4375 4,375 4,611 0,512 4,493
IBR 4500 4,500 4,736 0,512 4,618
IBR 4750 4,750 4,986 0,512 4,868
IBR 5000 5,000 5,236 0,512 5,118
IBR 5500 5,500 5,736 0,512 5,618
IBR 5750 5,750 5,986 0,512 5,868
IBR 6000 6,000 6,236 0,767 6,118
IBR 6750 6,750 6,986 0,767 6,868
