Kaco Scrapers QAN

Get a quote
Category:

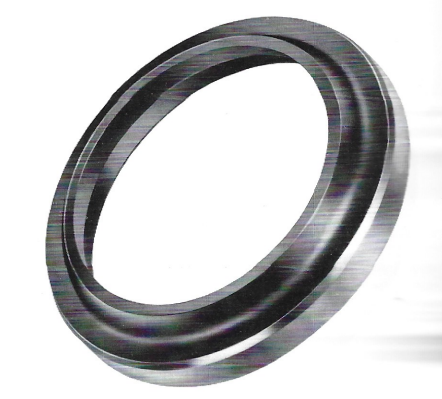

Kaco Contrary to lip seals, which are used for sealing purposes in the case of liquid and gaseous media, scrapers have no pronounced sealing function but are used to prevent the penetration of foreign matter into the system. The soil and dust deposited on the extended piston rod must be completely removed by the scraper lip. For this purpose, the lip is designed in such a way that, when installed, its front surface forms a right angle to the piston rod. As a result of this, abrasive particles are prevented from sticking onto or becoming embedded in the contact surface of the lip.

For normal applications, scrapers of NBR materials are manufactured with a Shore hardness of 80 — 90 and they also guarantee a long service life in the case of extreme stresses. Suitable FKM materials are available for special applications such as, for example, high operating temperatures.

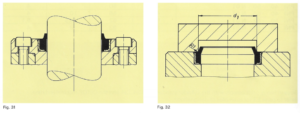

QAN scrapers require only a small installation space. It is merely necessary to have a hole into the housing or housing cover in the height of the metallic support piece. When installed, the lip of the scraper projects over the machine components and this prevents the scraped soil from accumulating in the area of the lip and leading to malfunctions. If the installation instructions (page17) are observed, no-problem, and easy installation of these scrapers, which are pressed in previously with the metal component (figure 32), is possible. A good seat in the machine component is guaranteed by the provided press-fit. Corrosion is prevented by the rubber layer on the lip-side of the support element.

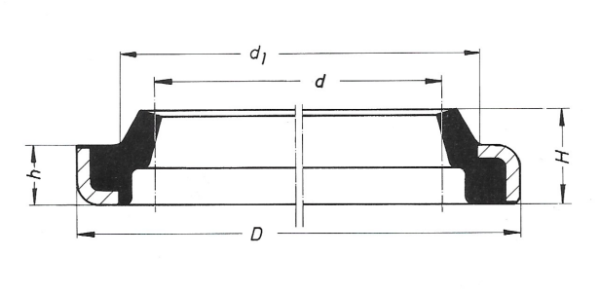

Item number d D H h d1
QAN8 • 15 NM 01 8 15 7 4,5 12
QAN10 • 20 NM 01 10 20 8 5 15
QAN12 • 18 NM 01 12 18 5 3 15,3
QAN12 • 20 NM 01 12 20 8 5 16,8
QAN12 • 22 NM 01 12 22 8 5 17
OAN14 • 22 NM 01 14 22 4 3 18
OAN14 • 22 NM 02 14 22 8 5 18,8
QAN16 • 22 NM 01 16 22 4 3 19,4
QAN 16 • 24 NM 01 16 24 8 5 20,5
QAN 16 • 26 NM 01 16 26 8 5 21,6
QAN 18 • 24 NM 01 18 24 7,5 5 22,8
QAN 18 • 28 NM 01 18 28 9,5 7 22,8
OAN 20 • 28 NM 01 20 28 10 7 24,8
QAN 20 • 30 NM 01 20 30 6 4 24,7
QAN 22 • 32 NM 01 22 32 10 7 27,5
QAN 25 • 31 NM 01 25 31 7 4 29,7
OAN 25 • 35 NM 01 25 35 10 7 29,7
OAN 28 • 36 NM 01 28 36 8 5 32,1
OAN 28 • 38 NM 01 28 28 8 5 33
QAN 30 • 40 NM 01 30 40 7,5 5 35
OAN 30 • 40 NM 02 30 40 10 7 35,9
QAN 32 • 40 NM 01 32 40 7 5 36
QAN 32 • 42 NM 01 32 42 7,5 5 37
QAN 32 • 45 NM 01 32 45 10 7 37,2
QAN 35 • 45 NM 01 35 45 9 7 40
QAN 35 • 45 NM 02 35 45 10 7 41
QAN 36 • 45 NM 01 36 45 10 7 41,1
QAN 38 • 43,2 NM 01 38 43,2 7,5 5 41,5
QAN 38 • 50 NM 01 38 50 7,5 5 43
OAN40 • 50 NM 01 40 50 10 7 45,1
OAN 45 • 55 NM 01 45 55 10 7 50,1
QAN 45 • 60 NM 01 45 60 10 7 50
QAN 48 • 60 NM 01 48 60 7,5 5 53
OAN 50 • 56 NM 01 50 56 7 5 54
OAN 50 • 60 NM 01 50 60 10 7 55,2
QAN 50 • 62 NM 01 50 62 7,5 5 55
QAN 50 • 72 NM 01 50 72 7,5 5 55
QAN 51,5 • 65 NM 01 51,5 65 8 4,8 56,6
QAN  52 • 58,2 NM 01 52 58,2 7,5 5 55,5
QAN 56 • 66 NM 01 56 66 10 7 61,5
QAN  60 • 72 NM 01 60 72 7,5 5 65
QAN 60 • 72 NM 01 60 72 9,5 7 65
QAN 63 • 73 NM 01 63 73 7 5 68,5
QAN 63 • 75 NM 01 63 75 10 7 68,4
QAN 68 • 78,2 NM 01 68 78,2 7,5 5 73
QAN 70 • 80 NM 01 70 80 10 7 75,6
QAN 70 • 82 NM 01 70 82 7,5 5 75
QAN 70 • 85 NM 01 70 85 7,5 5 75
QAN 80 • 90 NM 01 80 90 10 7 85,5
QAN  85 • 97 NM 01 85 97 10,5 8 90
QAN 88 • 97,2 NM 01 88 97,2 7,5 5 92,5
QAN 90 • 102 NM 01 90 102 7,5 5 95
QAN 100 • 110 NM 01100 100 110 10 7 105,6
QAN 110 • 122 NM 01110 110 122 12,5 10 115,2
QAN 125 • 140 NM 01125 125 140 12 9 131,2
QAN  135 • 147 NM 01 135 147 12,5 10 140
QAN 140 • 155 NM 01140155 140 155 12 9 146,2
QAN 160 • 173 NM 01160173 160 173 14,5 12 165
QAN 160 • 175 NM 01160175 160 175 12 9 166
QAN 220 • 240 NM 01220240 220 240 16 12 227,3
