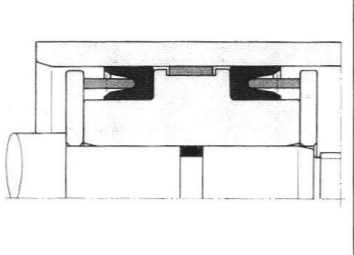

The Parker Prädifa PDF cylinder seals profiles G5 and G6 are elastomer U-rings that due to their symmetrical shape and their pointed sealing lips need a support ring. These strikes can be made from all metal according to the information in this prospectus included drawing with dimension listor made of rubber. Round cords and standardized rings are suitable as rubber support rings. Plastic support rings are also possible.
Parker Praedifa Profiles G5 and G6 have a rectangular cross-section. In contrast to the G5 profile, the G6 profile has thicker sealing lips and therefore brushes the oil. When the engine is depressurized they extend even more intensely. These profiles are mainly called cylinder seals. It is also possible to use them to seal piston lengths. ln this case, however, no plastic support ring can be used. The profile G6 can also be provided with an outwardly sloping connection. Therefore they usually do not have a support ring, because the sealing edge is below the total height.
Scope of application:
Operating pressure: ≤ 160 bar hydraulic ≤16 bar pneumatics
operating temperature: -30 to + 100 C hydraulic -30 to + 80o C pneumatic
speed: = 1.0 m/s pneumatics
Mainly for the most diverse devices in hydraulics and pneumatics, here only in connection with maintained compressed air.
Installation instructions:
The tolerance for the groove stitch should be h9
so that the sealing lip is sufficiently prevented from tension.
It would also be valued when very little friction is placed. The grooves for the cylinder seal can be made with the bottom so that the pressure against the cylinder wall is reduced. this applies only for pneumatic devices. In hydraulics, on the other hand, they are specified dimensions and tolerances.
| D | d | H | H | Item number | D | d | H | H | Item number | |
| 4 | 1,5 | 1,7 | 1 | G6 0005N3584 | 23,8 | 11,6 | 12 | 6 | G5 1023N3584 | |
| 7 | 3 | 3 | 1,5 | G6 0009N3584 | 23,8 | 13,6 | 12 | 6 | G5 1060N3584 | |
| 7,5 | 4 | 3 | 1,3 | G6 0017N3584 | 24 | 13 | 6 | 2,7 | G5 1050N3584 | |
| 8 | 2 | 3,5 | 1,8 | G6 0008N3584 | 24 | 15 | 7 | 3,5 | G6 1068N3584 | |
| 8 | 3 | 3,5 | 1,8 | G6 0010N3584 | 24 | 16 | 6 | 2,5 | G5 1105N3584 | |
| 8 | 4,5 | 3 | 1,5 | G6 0027N3584 | 25 | 10 | 8 | 4 | G6 N35841025 | |
| 10 | 3,8 | 4 | 2 | G6 0015N3584 | 25 | 12 | 8 | 4 | G6 N35841045 | |
| 10 | 4 | 4 | 1,8 | G6 0020N3584 | 25 | 15 | 8 | 3,2 | G5 1082 N3584 | |
| 10 | 4 | 5 | 2,5 | G5 0010N3584 | 25 | 16 | 8 | 3,5 | G5 1107 N3584 | |
| 10 | 5 | 4 | 2,5 | G6 0033N3584 | 40 | 25 | 11 | 5 | G5 2060 N3584 | |
| 10 | 6 | 4 | 2 | G6 0049N3584 | 40 | 30 | 9 | 4,5 | G6 3005 N3584 | |
| 10 | 6 | 4,3 | 2,5 | G6 0048N3584 | 40 | 32 | 5 | 2 | G6 3020 N3584 | |
| 11 | 5 | 5 | 2,3 | G5 0020N3584 | 40 | 32 | 7 | 3 | G6 3023 N3584 | |
| 11 | 6 | 3 | 1,7 | Gs 0023N3584 | 40 | 32 | 8 | 4,5 | G6 3026 N3584 | |
| 12 | 5 | 5 | 2,5 | G6 0036N3584 | 40 | 33 | 6 | 4,5 | G6 3030 N3584 | |
| 12 | 6 | 4 | 2 | G6 0045N3584 | 42 | 32 | 6 | 3 | G5 3010 N3584 | |
| 12 | 6 | 6 | 3,5 | G5 0025N3584 | 43 | 20 | 12 | 6 | G5 2020 N3584 | |
| 12 | 8 | 4 | 2 | G6 0066 N3584 | 43 | 26 | 10 | 5 | G6 2065 N3584 | |
| 12,3 | 6 | 3,5 | 1,7 | G6 0046 N3584 | 44 | 44 | 10 | 5 | G5 301 5 N3584 | |
| 12,5 | 7 | 3,5 | 1,7 | G5 0030 N3584 | 45 | 30 | 8 | 5 | G6 3010 N3584 | |
| 13 | 7 | 3,5 | 1,8 | G5 0035 N3584 | 45 | 30 | 10 | 5 | G6 3013 N3584 | |
| 14 | 8 | 4 | 2 | G5 0055 N3584 | 45 | 35 | 6 | 3 | G5 3050 N3584 | |
| 14 | 8 | 6 | 3 | G6 0070 N3584 | 45 | 35 | 8 | 3,5 | G6 3045 N3584 | |
| 15 | 7 | 5 | 2 | G5 0040 N3584 | 45 | 35 | 10 | 6 | G6 3048 N3584 | |
| 15 | 7 | 7 | 4,5 | G6 0058 N3584 | 45,2 | 38,2 | 4 | 1,5 | G6 3080 N3584 | |
| 15 | 7,3 | 6 | 3,8 | G5 0050 N3584 | 46 | 28 | 10 | 5 | G6 2080 N3584 | |
| 15 | 8 | 6 | 2,8 | G6 0073 N3584 | 48 | 36 | 12 | 8 | G6 3065 N3584 | |
| 15 | 8 | 6 | 3,8 | G6 0075 N3584 | 50 | 35 | 8 | 3,5 | G5 3055 N3584 | |
| 15 | 8 | 6 | 4,1 | G5 0060 N3584 | 50 | 35 | 10 | 5 | G6 3052 N3584 | |
| 15 | 10 | 3,5 | 1,7 | G6 1005 N3584 | 50 | 40 | 10 | 5 | G6 4010 N3584 | |
| 15 | 10 | 4 | 2 | G6 1006 N3584 | 52 | 40 | 8 | 4 | G5 4005 N3584 | |
| 15 | 10 | 5 | 2,5 | G6 1008 N3584 | 52 | 45 | 8 | 4,5 | G6 4035 N3584 | |
| 16 | 6 | 8 | 4 | G6 0050 N3584 | 54 | 34 | 15 | 7 | G6 3040 N3584 | |
| 16 | 8 | 6 | 3 | G5 0068 N3584 | 54 | 42 | 12 | 8 | G6 4025 N3584 | |
| 16 | 8 | 6 | 3,5 | G6 0080 N3584 | 55 | 40 | 9,5 | 5 | G6 4013 N3584 | |
| 16 | 10 | 4 | 2 | G6 101 2 N3584 | 55 | 40 | 10 | 4,5 | G5 4010 N3584 | |
| 17 | 5 | 9 | 5 | G6 0040 N3584 | 55 | 42 | 6,5 | 3,2 | G6 4028 N3584 | |
| 17 | 9 | 6 | 3 | G6 0086N3584 | 56 | 40 | 10 | 5 | G5 4020 N3584 | |
| 17 | 10 | 6 | 3 | G6 1015 N3584 | 56 | 46 | 10 | 6 | G5 4060 N3584 | |
| 17,2 | 9,7 | 6 | 2,5 | G5 0092 N3584 | 59,7 | 44,3 | 8 | 4 | G5 4045 N3584 | |
| 18 | 6 | 8 | 4 | G5 0028 N3584 | 60 | 40 | 15 | 6 | G5 4025 N3584 | |
| 18 | 10 | 5 | 3,5 | G6 101 N3584 | 60 | 45 | 10 | 4,5 | G5 4046 N3584 | |
| 18 | 10 | 6 | 1,8 | G6 1021 N3584 | 62 | 50 | 10 | 4,5 | G5 5005 N3584 | |
| 18 | 11,3 | 4 | 1,8 | G5 1020 N3584 | 62 | 50 | 12 | 6 | G6 5015 N3584 | |
| 18 | 12 | 4 | 2,2 | G5 1028 N3584 | 63 | 45 | 10 | 4,5 | G5 4055 N3584 | |
| 18 | 12 | 4,5 | 2,5 | G6 1035 N3584 | 124 | 112 | 12 | 8 | G68020 N3584 | |
| 19 | 12 | 4,5 | 4 | G6 1036 N3584 | 128 | 117 | 10 | 6 | G68035N3584 | |
| 20 | 10 | 8 | 4,5 | G5 1015 N3584 | 130 | 110 | 18 | 11 | G68010 N3584 | |
| 20 | 12 | 8 | 2 | G61038N3584 | 132 | 120 | 12 | 8 | G6C010 N3584 | |
| 20 | 14 | 4 | 3 | G6 1050N3584 | 140 | 115 | 18 | 9 | G68030N3584 | |
| 20 | 14 | 4 | 2,5 | G6 1052N3584 | 140 | 120 | 18 | 12 | G5C010 N3584 | |
| 20 | 14 | 5 | 1,5 | G6 1055N3584 | 140 | 128 | 12 | 6 | G5C040 N3584 | |
| 20 | 15 | 3 | 2,5 | G6 1062 N3584 | 145 | 120 | 15 | 6 | G5C015 N3584 | |
| 21 | 12 | 5 | 5 | G5 1032N3584 | 160 | 138 | 12 | 6 | G5D075 N3584 | |
| 22 | 8 | 10 | 3 | G5 0075N3584 | 154 | 152 | 12 | 7,5 | G6F020N3584 | |
| 22 | 12 | 7 | 3 | G5 0041N3584 | 175 | 155 | 13 | 6,5 | G6F045N3584 | |
| 22 | 14 | 4,5 | 3 | G6 1058N3584 | 185 | 160 | 15 | 7,5 | G6G015N3584 | |
| 22 | 14 | 6 | 4,5 | G6 1060N3584 | 190 | 170 | 13 | 5,2 | G6H009 N3584 | |
| 22 | 14 | 8 | 2 | G6 1068N3584 | 215 | 195 | 15 | 7,5 | G6K049N3584 | |
| 22 | 15 | 4 | 2 | G6 1065N3584 | 235 | 210 | 15 | 7,5 | G5 L020 N3584 | |
| 22 | 16 | 4 | 2 | G6 1073N3584 | 249,5 | 236 | 12 | 7,5 | G6M055 N3s84 | |
| 22 | 16 | 6 | 3 | G6 1074N3584 | 354 | 230 | 15 | 7,5 | GS M005 N3584 | |
| 23 | 15 | 14 | 5 | G5 1079N3584 | 255 | 230 | 15 | 7,5 | G5M010 N3584 | |
| 23 | 16 | 6 | 3 | G6 1076N3584 | 250 | 230 | 22 | 11 | G5 M020 N3584 | |
| 415 | 390 | 15 | 7,5 | G6Q075 N3584 |
