Parker Piston Seals Z5

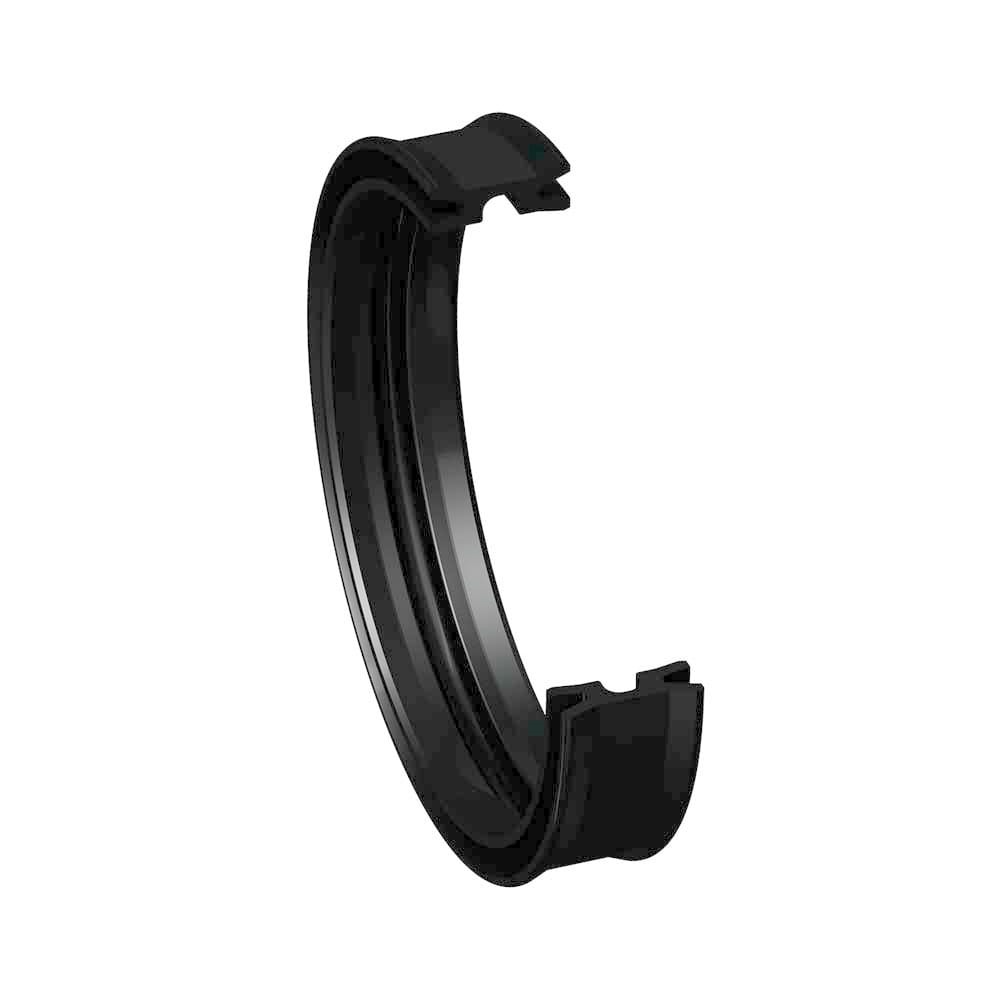

The Z5 pneumatic piston seal is a double U-ring with an integral guiding surface for double-acting pistons. The seal has two sealing lips for, particularly high sealing performance.

  • Due to application-optimized geometry and compounds suitable for use in oiled as well as in oil-free air (after initial lubrication on assembly).
  • Multi-functional sealing element. The guiding area at the sealing element performs the guiding function in the cylinder. However, due to its geometry, the sealing element is not suitable for the absorption of high radial forces or long strokes.
  • Prevents metallic contact between the piston and cylinder. Ideal for light-metal and plastic cylinders (ridging).
  • Good wear resistance.
  • Smooth running due to optimum lubricant-retaining sealing lip geometry.
  • Easier installation.
  • Assembly on the one-part piston is possible.
  • High-temperature resistance in case of suitable compound selection.
  • Excellent media resistance in case of suitable compound selection.
  • Installation in open housings with retaining collar.

Range of application

Operating pressure ≤ 16 bar
Operating temperature -30 °C to +80 °C
Sliding speed ≤ 1 m/s
Media Compressed air, both lubricated and oil-free (after greasing for fitting)

Compounds

Standard: N3578, NBR compound (≈ 75 Shore A).

For low temperatures: N8602, NBR compound (≈ 70 Shore A). For high temperatures: V8550, FKM compound (≈ 80 Shore A).

Installation

The profile Z5 pneumatic cylinder seals can be easily mounted by pulling them over the one-piece piston.

Care should be taken that all edges are chamfered to avoid seal damage.

D d H L Order Code
16 10 10,5 12 Z51610N3578
18 12 10,5 12 Z51812N3578
20 14 10,5 12 Z52014N3578
25 18 12 13 Z52518N3578
28 22 10,5 12 Z52822N3578
30 23 12 13 Z53023N3578
32 25 12 13 Z53225N3578
35 28 12 13 Z53528N3578
40 33 12 13 Z54033N3578
45 38 12 13 Z54538N3578
50 43 12 13 Z55043N3578
54 46 13 15 Z55446N3578
63 53 17 19 Z56353N3578
63 56 12 13 Z56356N3578
70 62 13 15 Z57007N3578
76 66 18 20 Z57666N3578
80 72 13 15 Z58067N3578
80 70 18 20 Z58070N3578
100 88 21 23 Z5A088N3578
100 90 16 18 Z5A089N3578
125 113 15 17 Z5C511N3578
125 113 21 23 Z5C513N3578
130 120 17 19 Z5D017N3578
140 128 21 23 Z5E028N3578
150 140 17 19 Z5F014N3578
160 145 26 29 Z5G045N3578
200 185 26 29 Z5L085N3578
