Parker Prädifa Piston Seals B5/B6

Get a quote
Category:

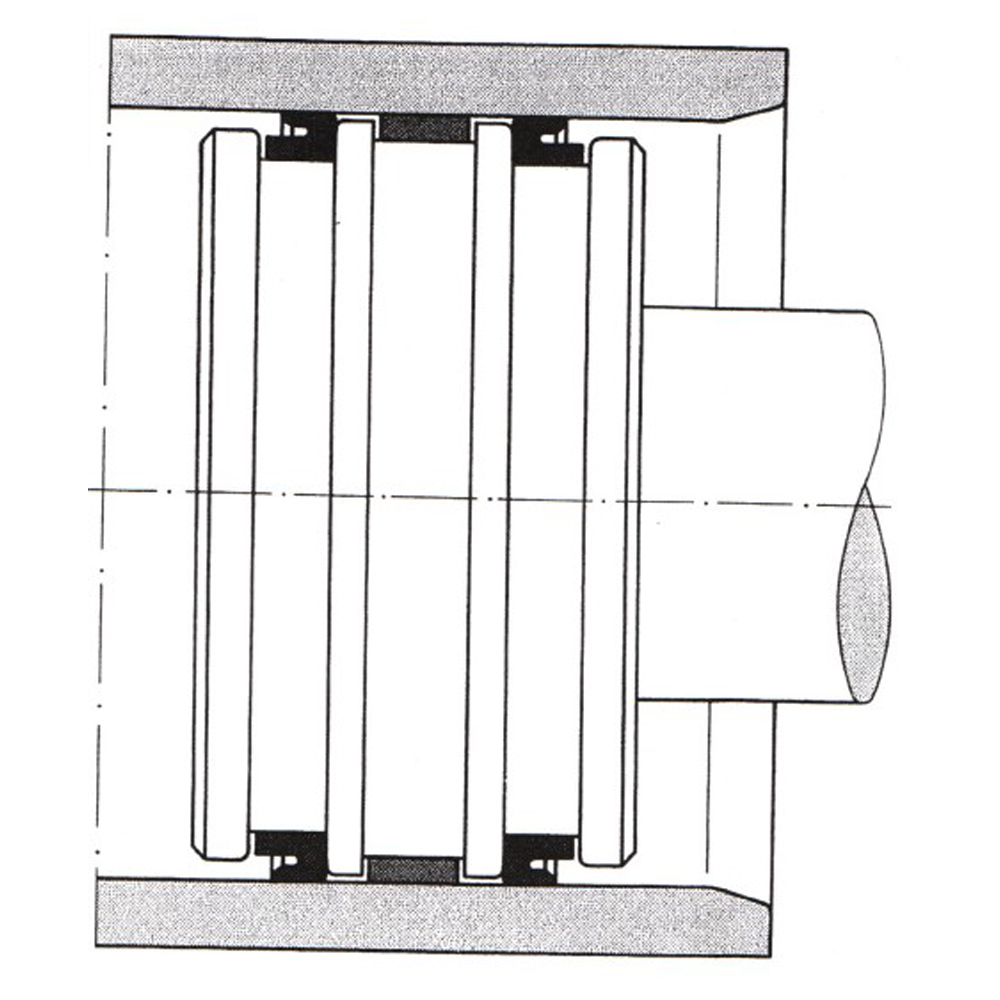

The Parker Prädifa PDF pneumatic cylinder seals Profil B5 and Profil B6 have been developed for use in pneumatics. The static lip is designed as a hat part so that these rings have no support

that can be installed and snapped into closed slots. In contrast to Parker Praedifa profile B5, profile B6 has a stronger dynamic sealing lip.

Scope of application:

Working pressure: 16 bar
Operating temperature: – 30 to + 80 C.
Gliding speed: 1 m / s
Medium: oiled compressed air.
In conjunction with dry and oil-free air, our PDF profile E4 can be used.

Installation instructions:

These seals should not be pulled over sharp edges and have some free space in their length (see dimensions H and L). In the case of single-acting pistons, the sealing lip can also be provided with a connection that slopes away to the outside to improve the disengaging effect. If a value of very low friction is used, the inside diameter of the groove (h9) can be made with an undersize, so that the pressure of the sealing lip against the cylinder wall is reduced.

Material:

The standard material is a proven NBR-based PDF elastomer with a hardness of approx. 84 Shore A.

ØD d H Order code ØD d H Order code
10 3 6 B5N841005 25 17 6,5 B5N842055
11,5 6 4 B6N841010 26 12 10,5 B6N842038
12 4 8 B5N841015 27 17 8 B6N842045
12 6 8 B5N841018 28 16 9 B6N842050
13 7 6,5 B6N841020 28 18 8 B6N842055
14 6 8 B5N841025 30 15 10,2 B6N843005
15 6 8 B6N841030 30 20 6,5 B5N843005
15 7 5 B5N841030 30 20 8 B6N843010
15 8 5 B6N841032 30 22 5,5 B5N843010
16 8 6 B6N841035 32 16 12 B5N843018
16 9 5 B5N841040 32 18 12 B6N843020
16 10 5 B5N841045 32 22 8 B6N843025
16 10 5 B6N841041 32 24 7 B5N842024
17 9 8 B5N841060 32 24 7 B6N843030
1 10 10 B5N841070 34 25 6,5 B6N843035
20 10 7,5 B5N842010 35 25 6,5 B5N843045
20 14 6 B5N842014 35 25 8 B6N843040
20 14 6 B6N842010 36 24 6 B6N843045
22 12 6 B5N842020 36 24 9 B5N843050
22 14 6 B5N842024 37 21 12 B6N843050
22 16 5 B5N842028 38 26 10 B6N843055
24 14 7,5 B5N842035 38 28 8 B6N843060
24 16 5 B5N842038 40 28 6 B5N844010
24 16 5 B6N842022 40 28 9 B5N844015
24 16 9 B5N842040 40 28 9 B6N844005
24 17 6,5 B6N842026 40 30 6,5 B5N844020
25 12 9,7 B6N842030 40 33 8 B6N844008
25 15 5 B5N842045 42 30 6 B6N844010
25 15 7,5 B5N842050 42 30 9 B5N844030
ØD d H Order code ØD d H Order code
43 32 12 B5N844035 60 48 7,5 B5N846030
44 28 12 B6N844020 60 48 9 B5N846035
45 29 12 B5N844040 60 50 10,3 B5N846040
45 33 9 B5N844045 62 50 8 B6N846020
45 37 6 B5N844047 62 52 7,5 B5N846050
46 34 8 B5N844050 63 51 6 B6N846025
47 31 12 B5N844055 63 51 9 B5N846055
50 30 15 B5N845010 65 49 12 B5N846065
50 34 12 B5N845015 65 53 6 B5N846075
50 36 10 B5N845020 65 55 12 B6N846060
50 36 10 B6N845010 70 50 15 B5N847005
50 38 6 B5N845025 70 54 8 B6N847010
50 38 7 B5N845026 70 54 12 B5N847010
50 38 9 B5N845028 70 60 7,5 B5N847015
50 38 9 B6N845013 70 62 6 B5N847020
50 40 8 B6N845015 75 55 12 B6N847025
50 42 8 B5N845040 75 55 15 B5N847030
50,75 39,94 7,93 B6N845025 75 59 12 B5N847035
52 42 7,5 B6N845035 75 65 7,5 B5N847040
54 46 8 B6N845040 80 60 10 B5N848010
55 39 12 B5N845065 80 60 14 B6N848010
55 45 7,5 B5N845070 80 64 8 B5N848015
55 47 8 B5N845075 80 64 10 B5N848017
57 41 12 B5N845080 80 64 12 B5N848020
57 49 6 B5N845085 80 68 8,5 B5N848024
58 46 10 B6N845065 80 70,5 7,5 B5N848034
58 48 12 B5N845090 80 72 12 B5N848030
60 40 12 B6N846010 80 72 12 B6N848020
60 40 15 B5N846010 82 62 15 B5N848040
60 42 13 B5N846015
60 44 12 B5N846020
ØD d H Order code
85 75 7,5 B5N848050
85 75 8 B6N848040
85 75 10 B6N848055
90 70 12 B6N849010
90 70 15 B5N849010
90 74 8 B6N849015
92 72 15 B6N849025
100 80 15 B5N84A010
100 82 12,5 B5N84A015
100 82 13,5 B5N84A018
100 84 8 B5N84A025
100 90 10,5 B5N84A030
102 86 8 B6N84A015
105 90 8 B6N84A030
105 95 10 B6N84A035
105 95 15 B5N84A060
110 90 15 B5N848010
115 95 15 B5N84B055
120 96 16 B5N84C008
120 100 15 B6N84C010
120 105 10 B5N84C009
120 106 14 B5N84C010
125 103 16 B5N84C025
125 107 12,5 B5N84C030
125 109 8 B5N84C035
130 110 15 B5N84D010
135 120 11,2 B6N84D015
140 115 18 B6N84E015
140 120 10 B5N84E010
140 120 16 B5N84E015
145 134 15 B5N84E030
