Parker Prädifa Rod Sealing Set ZG

Get a quote

Field of application:

Working pressure: ≤ 500 bar
Working temperature: HFA-, HFB- and HFC-fluids: + 5 to + 60 °C Mineral oil:—20 to +100 °C

Surface speed: ≤ 0,5 m/s
Double-acting rod seal for piston rods and
dies. Also suitable for application in industrial and ”water hydraulics”.

Installation:

The design of the Prädifa rod sealing set profile ZG allows simple snap-in installation into closed housing. To avoid damaging care should be taken that the seals are not pulled over sharp edges during installation.

Compounds:

The standard compound for the Parker Praedifa sealing part is an NBR-based elastomer with a fabric-reinforced dynamic surface (SFR2′-compound Z5017). The back-up rings are made of a polyacetal-based (WE 5001)
material.

For special requirements (pressure, temperature, speed, etc.) please contact our Consultancy Service, so that suitable materials al designs can be recommended.

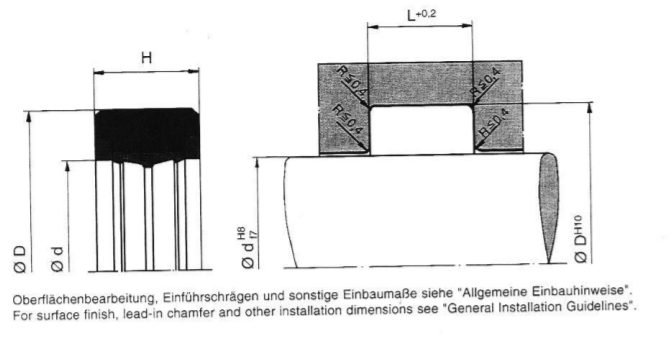

d D H/L Item number
23 38 18 ZG 0023 00254
30 45 18 ZG 0031 00250
35 50 18 ZG 0035 00250
45 65 22 ZG 0045 00250
55 70 18 ZG 0055 00250
60 75 15,8 ZG 0060 00250
70 85 17 ZG 0069 00250
70 90 21 ZG 0070 00250
75 90 18 ZG 0075 00250
80 95 18 ZG 0080 00250
90 105 18 ZG 0089 00250
90 115 18 ZG 0090 00250
