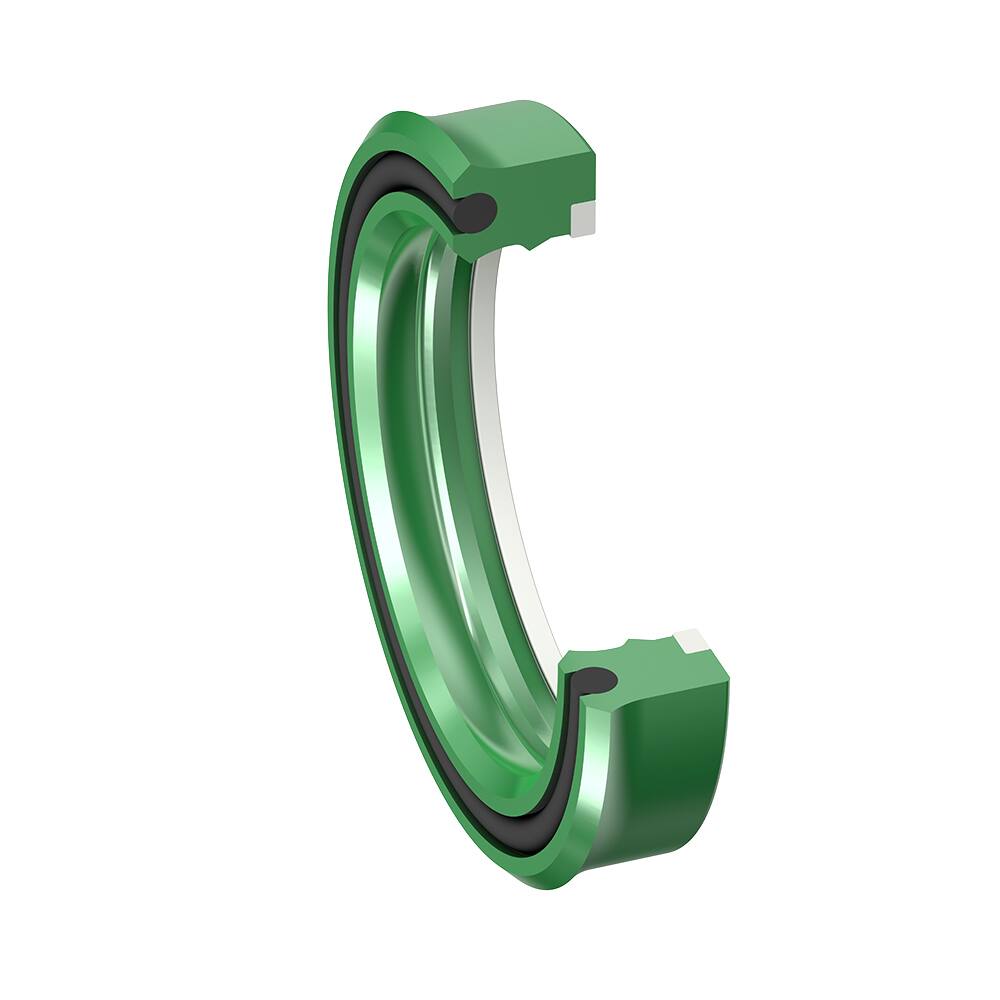

The Parker PrädifaBD Ultrathan®  rod seal is a compact seal with a secondary sealing lip and an evolution of Parkerɛs Park-O-Pak® seal. The additional sealing edge results in a larger lubricant deposit in the sealing gap. This largely prevents increased wear and achieves longer service life. In addition, the need for a complex tandem arrangement may be eliminated by the second sealing lip in some cases. Hydraulic cylinders in earth-moving machines are typical applications for this seal. They may involve pressure peaks of up to 1000 bar.

  • Exceptionally high static and dynamic sealing performance.
  • Enhanced sealing performance in non-pressurized
  • Penetration of air into the system is largely
  • Robust seal profile for harshest operating conditions.
  • Extreme wear
  • Easier
  • Insensitive to extreme pressure
  • Improved lubrication due to pressure medium deposit in the dynamic contact
  • Extremely high extrusion resistance.
  • Excellent media resistance in case of suitable compound
  • Suitable compounds are available for special requirements of the chemical process industry.
  • Suitable compounds available for special requirements of the food processing
  • Dimensions according to ISO
  • Installation in closed and undercut
  • Low compression
  • Additional sizes of machined products available on short

Range of application

Mainly for sealing piston rods and plungers in heavy-duty mobile and stationary hydraulic applications.

Operating pressure                                          ≤ 500 bar

Pressure peaks                                             ≤ 1000 bar

Operating temperature                                    -35 °C to +110 °C

Sliding speed                                                    ≤ 0.5 m/s

Media                                                                  Hydraulic oils based on mineral oil

Compounds

The compound Ultrathan® P5008 is a Parker Praedifa material based on polyurethane with a hardness of approx. 93 Shore A.

NBR-O-ring with approx. 70 Shore A.

Back-up ring made of filled polyamide (W5059).

Installation

The seals should have an axial clearance (see columns H and L). To avoid damage at the sealing lips, the seals should not be pulled over sharp edges during installation. Normally these seals may be snapped into closed grooves. Where access is restricted special assembly tools may be required. Proposals for the design of such tools will be provided on request. For gap sizes see chapter “Maximum Gap Allowance”.

d D H L d1 Order code
40 55 11.4 12.5 40.5 BD004000042
50 65 11.4 12.5 50.5 BD005000042
56 71 11.4 12.5 56.5 BD005600042
60 75 11.4 12.5 60.5 BD006000042
63 78 11.4 12.5 63.5 BD006300042
65 80 11.4 12.5 65.5 BD006500042
70 85 11.4 12.5 70.5 BD007000042
75 90 11.4 12.5 75.5 BD007500042
80 95 11.4 12.5 80.5 BD008000042
85 100 11.4 12.5 85.5 BD008500042
85 100 12 13 85.5 BD008600042
90 105 11.4 12.5 90.5 BD009000042
95 110 12 13 95.5 BD009200042
100 115 12 13 100.5 BD009500042
100 120 13.5 15 100.6 BD009900042
100 120 14.5 16 100.6 BD010000042
110 130 14.5 16 110.6 BD011000042
120 140 14.5 16 120.6 BD012000042
125 145 14.5 16 125.6 BD012500042
130 150 14.5 16 130.6 BD013000042
140 160 14.5 16 140.6 BD014000042
150 170 14.5 16 150.6 BD015000042
160 180 14.5 16 160.6 BD016000042
170 190 14.5 16 170.6 BD017000042
180 205 18.2 20 180.8 BD018000042
190 215 18.2 20 190.8 BD019000042
200 230 22.7 25 200.8 BD020000042
210 240 22.7 25 210.8 BD002100042
220 250 22.7 25 220.8 BD022000042
230 260 22.7 25 230.8 BD023000042
240 270 22.7 25 240.8 BD024000042
