TURCON DOUBLE DELTA

Turcon Double Delta is an rubber energised plastic faced seal. The seal is designed to expand and improve the service parameters of O-Rings and is installed in existing O-Ring grooves.

Double Delta combines the flexibility and response of O-Rings with the wear and friction characteristics of the Turcon materials in dynamic applications.

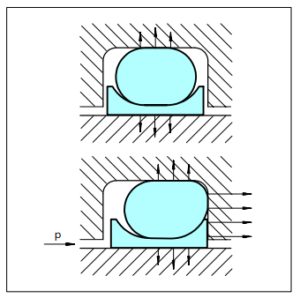

The figures below shows the cross section of the Double Delta. The double acting performance of the seal follows from the symmetrical cross section which allow the seal to respond to pressure in both directions.

Initial contact pressure is provided by radial compression of the O-Ring. When the system pressure is increased the O-Ring transforms this into additional contact pressure, the contact pressure of the seal is thereby automatically adjusted so sealing is ensured under all service conditions.

TURCON DOUBLE DELTA figuur 61

Notches

Turcon Double Delta is as standard supplied without radial notches, as the thin radial section of the seal gives good response to pressure variations.

For diameters from 8 mm notches on both sides are optional. These ensure direct pressurizing of the seal under all operating conditions.

TURCON DOUBLE DELTA figuur 62

Advantages

– Compact groove dimensions and simple installation
– Low friction without stick-slip
– Resistance against wear and extrusion
– Rod seals available for all diameters from 2 to 999.9 mm
– Standard cross sections cover AS 568A and important metric O-Rings, other cross sections available on request.
– Fits also groove dimensions per MIL-G-5514F

Application Examples

The Turcon Double Delta is preferably used as a double acting seal for hydraulic and pneumatic equipment in sectors such as:

  • Machine tools
  • Handling devices
  • Manipulators
  • Valves
  • Chemical process equipments

It is particular recommended for light duty and small diameter applications.

Technical Data

Operating conditions

Pressure: Up to 35 MPa
Velocity: Up to 15 m/s
Temperature: -45_C to +200_C (according to O-Ring material)
Media: Mineral oil,
Non-flammable fluids,
Environmentally safe fluids and
others according to O-Ring material.

Important Note:

The above data are maximum values and cannot be used at the same time. e.g. the maximum operating speed depends on material type, pressure, temperature and gap value.

Standard Application:

For hydraulic components with reciprocating movement in mineral oils containing zinc or medium with good lubricating performance and hard mating surface.

Turcon seal: Turcon T46
Energiser: O-Ring NBR 70 shore A or FKM 70 shore A (depending on the temp.)

Special Application:

Short stroke movements, poor lubricating fluids and
soft mating surfaces.
Turcon seal: Turcon T24

Energiser: O-Ring NBR 70 shore A or FKM 70 shore A (depending on the temp.)

For low friction requirement in dynamic hydraulic components with good lubricating medium:

Turcon seal: Turcon T05

Energiser: O-Ring NBR 70 shore A or FKM 70 shore A (depending on the temp.

Special Application:

Short stroke movements, poor lubricating fluids and
soft mating surfaces.

Turcon seal: Turcon T24
Energiser: O-Ring NBR 70 shore A or FKM 70 shore A (depending on the temp.)

For low friction requirement in dynamic hydraulic components with good lubricating medium:

Turcon seal: Turcon T05
Energiser: O-Ring NBR 70 shore A or FKM 70 shore A (depending on the temp.)

For specific applications other material combinations as listed may also be used. Please contact your local Busak+Shamban Company.

Material for the seal set:

Example: T05 plus FKM – O-Ring T05V
T46 plus NBR – O-Ring T46N



Material, Applications, Properties Code O-Ring Material Code O-Ring  Operating Temp.*
°C
Mating Surface Material MPa
max.
TurconT46
Standard material for hydraulics, high compressive strength, good sliding and wear properties, good extrusion resistance,
BAM tested.
Bronze filled
Colour: Greyish to dark brown
T46 NBR – 70 Shore A N -30 to +100 Steel, hardened
S eel, chromepla ed Cast iron
35
NBR – Low temp.
70 Shore A
T -45 to +80
FKM – 70 Shore A V -10 to +200
TurconT24
For all lubricating and non-lubricating fluids,
soft mating surfaces.
Carbon filled Colour: Black
T24 NBR – 70 Shore A N -30 to +100 Steel
Steel, chromeplated Cast iron Stainless steel Aluminium Bronze
25
NBR – Low temp.
70 Shore A
T -45 to +80
FKM – 70 Shore A V -10 to +200
EPDM – 70 Shore A E** -45 to +145
TurconT05
For all lubricating hydraulic fluids, hard mating surfaces, very good sliding properties, low friction.
Colour: Turquoise
T05 NBR – 70 Shore A N -30 to +100 Steel, hardened Steel, chromeplated 20
NBR – Low temp.
70 Shore A
T -45 to +80
FKM – 70 Shore A V -10 to +200

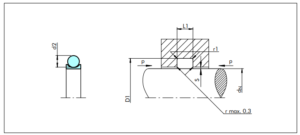

TURCON DOUBLE DELTA figuur 63

TURCON DOUBLE DELTA Table

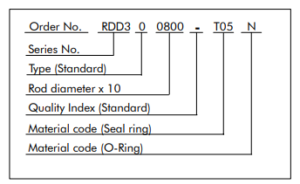

Ordering example

Turcon Double Delta, complete with O-Ring, standard range, series RDD3 (from Table),
Rod diameter: dN = 80.0 mm
Part No.: RDD300800 (from Table)

Select the material from Table. The corresponding code numbers are appended to the Part No. (from Table). Together they form the Order No. For all intermediate sizes not shown in Table XLVI, the Order No. can be determined from the example opposite.

TURCON DOUBLE DELTA Order



Rod Diame- ter Groove Diame- ter Groove Width Part No. O-Ring Sizes
dN h9 D1 H9 L1 +0.2
3,0 5,9 2,4 RDD000030 2.90 x 1.78
4,0 6,9 2,4 RDD000040 3.68 x 1.78
5,0 7,9 2,4 RDD000050 4.87 x 1.80
6,0 8,9 2,4 RDD000060 6.07 x 1.78
8,0 10,9 2,4 RDD000080 7.65 x 1.78
10,0 14,5 3,6 RDD100100 10.77 x 2.62
12,0 16,5 3,6 RDD100120 12.37 x 2.62
14,0 18,5 3,6 RDD100140 13.94 x 2.62
15,0 19,5 3,6 RDD100150 15.0 x 2.65
16,0 20,5 3,6 RDD100160 17.12 x 2.62
18,0 22,5 3,6 RDD100180 18.72 x 2.62
20,0 26,2 4,8 RDD200200 20.22 x 3.53
22,0 28,2 4,8 RDD200220 21.82 x 3.53
25,0 31,2 4,8 RDD200250 25.00 x 3.53
28,0 34,2 4,8 RDD200280 28.17 x 3.53
30,0 36,2 4,8 RDD200300 31.35 x 3.53
32,0 38,2 4,8 RDD200320 32.92 x 3.53
35,0 41,2 4,8 RDD200350 36.09 x 3.53
36,0 42,2 4,8 RDD200360 36.09 x 3.53
40,0 49,4 7,1 RDD300400 40.64 x 5.33
42,0 51,4 7,1 RDD300420 43.82 x 5.33
45,0 54,4 7,1 RDD300450 46.99 x 5.33
48,0 57,4 7,1 RDD300480 46.99 x 5.33
50,0 59,4 7,1 RDD300500 50.17 x 5.33
52,0 61,4 7,1 RDD300520 53.34 x 5.33
55,0 64,4 7,1 RDD300550 56.52 x 5.33
56,0 65,4 7,1 RDD300560 56.52 x 5.33
60,0 69,4 7,1 RDD300600 59.69 x 5.33
63,0 72,4 7,1 RDD300630 62.87 x 5.33
65,0 74,4 7,1 RDD300650 66.04 x 5.33
70,0 79,4 7,1 RDD300700 72.39 x 5.33
80,0 89,4 7,1 RDD300800 81.92 x 5.33
85,0 94,4 7,1 RDD300850 85.09 x 5.33
90,0 99,4 7,1 RDD300900 91.44 x 5.33
95,0 104,4 7,1 RDD300950 97.79 x 5.33
100,0 109,4 7,1 RDD301000 100.97 x 5.33
105,0 114,4 7,1 RDD301050 107.32 x 5.33
110,0 119,4 7,1 RDD301100 110.49 x 5.33
115,0 124,4 7,1 RDD301150 116.84 x 5.33
120,0 132,2 9,5 RDD401200 120.02 x 7.0
125,0 137,2 9,5 RDD401250 126.37 x 7.0
130,0 142,2 9,5 RDD401300 132.72 x 7.0
135,0 147,2 9,5 RDD401350 135.89 x 7.0
140,0 152,2 9,5 RDD401400 142.24 x 7.0
150,0 162,2 9,5 RDD401500 151.77 x 7.0
160,0 172,2 9,5 RDD401600 164.47 x 7.0
170,0 182,2 9,5 RDD401700 170.82 x 7.0
180,0 192,2 9,5 RDD401800 183.52 x 7.0
190,0 202,2 9,5 RDD401900 189.87 x 7.0
200,0 212,2 9,5 RDD402000 202.57 x 7.0
210,0 222,2 9,5 RDD402100 215.27 x 7.0
220,0 232,2 9,5 RDD402200 227.97 x 7.0
230,0 242,2 9,5 RDD402300 227.97 x 7.0
240,0 252,2 9,5 RDD402400 240.67 x 7.0
250,0 262,2 9,5 RDD402500 253.37 x 7.0
280,0 292,2 9,5 RDD402800 291.47 x 7.0
300,0 312,2 9,5 RDD403000 304.17 x 7.0
320,0 332,2 9,5 RDD403200 329.57 x 7.0
350,0 362,2 9,5 RDD403500 354.97 x 7.0
360,0 372,2 9,5 RDD403600 367.67 x 7.0
400,0 412,2 9,5 RDD404000 405.26 x 7.0



Special Turcon Double Delta

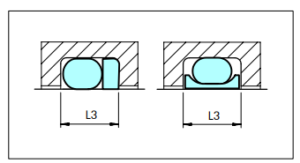

Turcon Double Delta for one Back-up Ring grooves

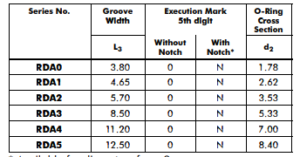

Double Delta is available for designs where grooves for O-Ring with one Back up Ring are used according to Table.

TURCON DOUBLE DELTA figuur 64

TURCON DOUBLE DELTA Table XLVII

Turcon Double DeltaR for Metric O-Rings

Double Delta is available for installation in grooves for metric O-Rings as listed in Table.

TURCON DOUBLE DELTA figuur Table XLVIII

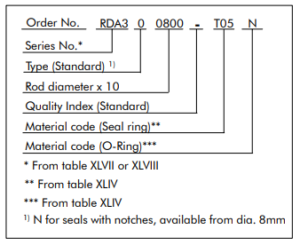

Ordering Example

Double Delta complete with NBR O-Ring
Rod diameter: dN = 80 mm
Groove diameter: 89.4 mm
Groove width: 8.5 mm.
Order No:. RDA300800-T05N

TURCON DOUBLE DELTA Order 1
