DUOPAC rubber fabric reinforced compact seals
Type DPS and DPC
Description
The COMPACT SEAL POLYPAC – DUOPAC DPS-DPC types are
double acting piston seals with integrated guide rings.
DUOPAC has been designed to optimize the advantages
of the materials selection:
- Fabric reinforcement with high mechanical strength, optimum thermal stability and lubricating properties is incorporated in the sealing element all over the dynamic contact area. For the DUOPAC DPC the reinforcement is extended on both sides to improve the extrusion resistance
- Nitrile based elastomer with optimum elasticity and low compression set provides the initial radial pre-load
- Acetal resin with improved form stability gives the Guide/backup rings high distortion and extrusion resistance
Type DPS
The DPS profile has been designed for its installation in closed grooves. The radial dimension of the profile has been reduced to the minimum to allow the necessary deformation during installation in closed grooves. Consequently its use must be limited to pressures up to 35 MPa.
Type DPC
The DPC profile is much more robust and can therefore be used for pressure level up to 70 MPa. An open groove is necessary.
Advantages
– DPS can be installed into closed grooves but its usemust consequently be limited to medium duty applications
– DPC are usually installed in open grooves inHeavy Duty applications (pressure peak up to 80MPa)
– Improved abrasion resistance
– Excellent sealing effect in combination with good dynamic and static friction behavior
Application Examples
- The Compact seals are the recommended Sealing element
for double acting Pistons of hydraulic components
in following applications: - Mining cylinders
- Presses
- Steel mills equipment
- Water hydraulic cylinders
Technical Data
Operating conditions:
For an optimumperformance of theDUOPAC, the recommended tolerances and surface finish must be applied.
Pressure: Up to 35MPa DPS type
Up to 70MPa DPC type
Speed: Up to 0.5 m/s
Temperature: -30C to +130C
Media: Mineral oil based hydraulic fluids,
water/oil and water/glycol emulsions.
Important Note:
The above data are maximum values and cannot be used at the same time. e.g. the maximum operating speed depends on material type, pressure, temperature and gap value. Temperature range also dependent on medium.

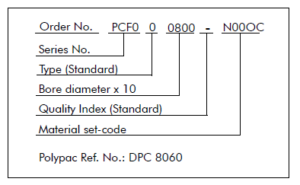

Ordering Example
Compact Seal Type DPS
Bore diameter: DN = 80 mm
Groove diameter: d1 = 66 mm
Groove width: L1 = 22.5 mm
Part No.: PCE100800
Material set-code: N00OC
Ordering Example
Compact Seal Type DPC
Bore diameter: DN = 80 mm
Groove diameter: d1 = 60 mm
Groove width: L1 = 22.4 mm
Part No.: PCF000800
Material set-code: N00OC
COMPACT SEAL POLYPAC – DUOPAC DPS-DPC
Bore Dia. | Groove Dimensions | Order No. | Polypac Ref. No. | ||||
DN H11 | d1 h9 | L1 +0.2 | L2+0.1 | d2 h9 | d3 h11 | ||
25,0 | 17,0 | 10,0 | 4,0 | 22,0 | 24,0 | PCE000250-N00OC | DPS 2517/1 |
32,0 | 24,0 | 15,5 | 3,2 | 28,0 | 31,4 | PCE000320-N00OC | DPS 3224 |
32,0 | 24,0 | 10,0 | 4,0 | 29,0 | 31,0 | PCE100320-N00OC | DPS 3224/1 |
35,0 | 27,0 | 15,5 | 3,2 | 31,0 | 34,4 | PCE000350-N00OC | DPS 3527 |
40,0 | 32,0 | 15,5 | 3,2 | 36,0 | 39,4 | PCE000400-N00OC | DPS 4032 |
40,0 | 32,0 | 10,0 | 4,0 | 37,0 | 39,0 | PCE100400-N00OC | DPS 4032/1 |
45,0 | 37,0 | 15,5 | 3,2 | 41,0 | 44,4 | PCE000450-N00OC | DPS 4537 |
50,0 | 38,0 | 20,5 | 4,2 | 46,0 | 49,4 | PCE000500-N00OC | DPS 5038 |
50,0 | 40,0 | 12,5 | 4,0 | 47,0 | 49,0 | PCE100500-N00OC | DPS 5040/1 |
55,0 | 43,0 | 20,5 | 4,2 | 51,0 | 54,4 | PCE000550-N00OC | DPS 5543 |
60,0 | 48,0 | 20,5 | 4,2 | 56,0 | 59,4 | PCE000600-N00OC | DPS 6048 |
63,0 | 51,0 | 20,5 | 4,2 | 59,0 | 62,4 | PCE000630-N00OC | DPS 6351 |
63,0 | 53,0 | 12,5 | 4,0 | 60,0 | 62,0 | PCE100630-N00OC | DPS 6353/1 |
65,0 | 53,0 | 20,5 | 4,2 | 61,0 | 64,4 | PCE000650-N00OC | DPS 6553 |
70,0 | 58,0 | 20,5 | 4,2 | 66,0 | 69,4 | PCE000700-N00OC | DPS 7058 |
75,0 | 63,0 | 20,5 | 4,2 | 71,0 | 74,4 | PCE000750-N00OC | DPS 7563 |
80,0 | 65,0 | 20,0 | 5,0 | 76,0 | 78,5 | PCE000800-N00OC | DPS 8065/1 |
80,0 | 66,0 | 22,5 | 5,2 | 76,0 | 79,4 | PCE100800-N00OC | DPS 8066 |
85,0 | 71,0 | 22,5 | 5,2 | 81,0 | 84,4 | PCE000850-N00OC | DPS 8571 |
90,0 | 76,0 | 22,5 | 5,2 | 86,0 | 89,4 | PCE000900-N00OC | DPS 9076 |
100,0 | 85,0 | 20,0 | 5,0 | 96,0 | 98,5 | PCE001000-N00OC | DPS 10085/1 |
100,0 | 86,0 | 22,5 | 5,2 | 96,0 | 99,4 | PCE101000-N00OC | DPS 10086 |
110,0 | 96,0 | 22,5 | 5,2 | 106,0 | 109,4 | PCE001100-N00OC | DPS 11096 |
120,0 | 106,0 | 22,5 | 5,2 | 116,0 | 119,4 | PCE001200-N00OC | DPS 120106 |
125,0 | 105,0 | 25,0 | 6,3 | 120,0 | 123,0 | PCE001250-N00OC | DPS 125105/1 |
125,0 | 108,0 | 26,5 | 7,2 | 121,0 | 124,4 | PCE101250-N00OC | DPS 125108 |
140,0 | 120,0 | 25,0 | 6,3 | 135,0 | 138,0 | PCE001400-N00OC | DPS 140120/1 |
140,0 | 123,0 | 26,5 | 7,2 | 136,0 | 139,4 | PCE101400-N00OC | DPS 140123 |
150,0 | 133,0 | 26,5 | 7,2 | 146,0 | 149,4 | PCE001500-N00OC | DPS 150133 |
160,0 | 140,0 | 25,0 | 6,3 | 155,0 | 158,0 | PCE001600-N00OC | DPS 160140/1 |
160,0 | 143,0 | 26,5 | 7,2 | 156,0 | 159,4 | PCE101600-N00OC | DPS 160143 |
180,0 | 163,0 | 26,5 | 7,2 | 176,0 | 179,4 | PCE001800-N00OC | DPS 180163 |
200,0 | 170,0 | 36,0 | 12,5 | 192,0 | 197,0 | PCE002000-N00OC | DPS 200170/1 |
200,0 | 180,0 | 31,5 | 9,2 | 196,0 | 199,4 | PCE102000-N00OC | DPS 200180 |
220,0 | 200,0 | 31,5 | 9,2 | 216,0 | 219,4 | PCE002200-N00OC | DPS 220200 |
250,0 | 230,0 | 31,5 | 9,2 | 246,0 | 249,4 | PCE002500-N00OC | DPS 250230 |
COMPACT SEAL POLYPAC – DUOPAC DPS-DPC
Bore Dia. | Groove Dimensions | Order No. | Polypac Ref. No. | ||||
DN H11 | d1 h9 | L1 +0.2 | L2 +0.1 | d2 h11 | d3 h11 | ||
30,0 | 17,0 | 15,4 | 6,35 | 26,50 | 29,00 | PCF000300-N00OC | DPC 3017 |
35,0 | 22,0 | 15,4 | 6,35 | 31,40 | 33,70 | PCF000350-N00OC | DPC 3522 |
40,0 | 24,0 | 18,4 | 6,35 | 35,40 | 38,70 | PCF000400-N00OC | DPC 4024 |
45,0 | 29,0 | 18,4 | 6,35 | 40,40 | 43,70 | PCF000450-N00OC | DPC 4529 |
50,0 | 34,0 | 18,4 | 6,35 | 45,40 | 48,70 | PCF000500-N00OC | DPC 5034 |
55,0 | 39,0 | 18,4 | 6,35 | 50,40 | 53,70 | PCF000550-N00OC | DPC 5539 |
60,0 | 44,0 | 18,4 | 6,35 | 55,40 | 58,70 | PCF000600-N00OC | DPC 6044 |
65,0 | 50,0 | 18,4 | 6,35 | 60,40 | 63,70 | PCF000650-N00OC | DPC 6550 |
70,0 | 50,0 | 22,4 | 6,35 | 64,20 | 68,30 | PCF000700-N00OC | DPC 7050 |
75,0 | 55,0 | 22,4 | 6,35 | 69,20 | 73,30 | PCF000750-N00OC | DPC 7555 |
80,0 | 60,0 | 22,4 | 6,35 | 74,20 | 78,30 | PCF000800-N00OC | DPC 8060 |
85,0 | 65,0 | 22,4 | 6,35 | 79,20 | 83,30 | PCF000850-N00OC | DPC 8565 |
90,0 | 70,0 | 22,4 | 6,35 | 84,15 | 88,30 | PCF000900-N00OC | DPC 9070 |
95,0 | 75,0 | 22,4 | 6,35 | 89,15 | 93,30 | PCF000950-N00OC | DPC 9575 |
100,0 | 75,0 | 22,4 | 6,35 | 93,15 | 98,05 | PCF001000-N00OC | DPC 10075 |
100,0 | 80,0 | 25,4 | 6,35 | 94,15 | 98,30 | PCF101000-N00OC | DPC 10080 |
105,0 | 85,0 | 22,4 | 6,35 | 98,10 | 103,00 | PCF001050-N00OC | DPC 10585 |
110,0 | 85,0 | 22,4 | 6,35 | 103,10 | 108,00 | PCF001100-N00OC | DPC 11085 |
120,0 | 100,0 | 25,4 | 6,35 | 114,10 | 118,00 | PCF001200-N00OC | DPC 120100 |
130,0 | 105,0 | 25,4 | 6,35 | 123,10 | 128,00 | PCF001300-N00OC | DPC 130105 |
140,0 | 115,0 | 25,4 | 6,35 | 133,00 | 138,00 | PCF001400-N00OC | DPC 140115 |
150,0 | 125,0 | 25,4 | 6,35 | 143,00 | 148,00 | PCF001500-N00OC | DPC 150125 |
160,0 | 135,0 | 33,0 | 6,35 | 153,00 | 158,00 | PCF001600-N00OC | DPC 160135 |
