ZURCON COMPACT SEALS
Description
The Zurcon Compact Seal are double-acting piston seals with integrated guide rings . The combination of the elastomer energiser and the polyurethane special shaped sealing element provide excellent sealing effect and service life. The function of the guide rings is to guide the piston in the cylinder tube and to absorb transverse forces.
Type PU DAS
For Zurcon Compact Seal PU DAS is designed without Back-up rings. For easy installation in closed grooves, the combination into one stiff sealing element and one soft energizing element is required. Back-up rings are unnecessary thanks to the high extrusion resistance of the polyurethane material.
Type Polypac EUD
The Zurcon Compact Seal EUD design includes T-shaped Backup/guide rings and a combination of seal ring and energiser.
Advantages
– High wear resistance
– Low compression set
– Optimal leakage control
– Easy installation into closed grooves
– Excellent service life
Application Examples
The Zurcon Compact Seals are the recommended sealing element for double acting pistons of hydraulic cylinders for:
- Truck cranes
- Mini excavators
- Heavy duty cylinders
Technical Data
Operating conditions
Pressure: Up to 40 MPa
Speed: Up to 0.5 m/s
Temperature: -35qC to +110qC
Media: Mineral oil based hydraulic fluids
Important Note:
The above data are maximum values and cannot be used at the same time. e.g. the maximum operating speed depends on material type, pressure, temperature and gap value. Temperature range also dependent on medium.
Materials
The Polyurethane Compact seals PU DAS and EUD are available in the following composition:
Sealing ring: Zurcon Polyurethane 93 Shore A
Energiser: NBR
70 Shore A Type PU DAS
78 Shore A Type EUD
Guide rings: POM
Set references: Z2052
ZURCON COMPACT SEALS

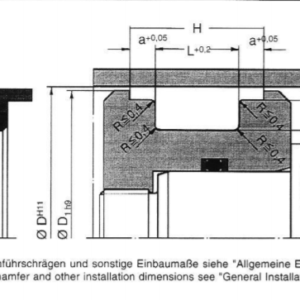

| Bore Dia. | Groove Dimensions | Piston Dia. | Order No. | ||||
| DN H9 | d3 h9 | d4 h9 | L1+0.2 | L5+0.1 | r max. | d5 h11 | |
| 40,0 | 26,0 | 36,00 | 15,5 | 2,60 | 0,4 | 38,50 | PCC000400 – Z2052 |
| 45,0 | 31,0 | 41,00 | 15,5 | 2,60 | 0,4 | 44,00 | PCC000450 – Z2052 |
| 50,0 | 34,0 | 46,00 | 20,5 | 3,10 | 0,4 | 49,00 | PCC000500 – Z2052 |
| 55,0 | 39,0 | 51,00 | 20,5 | 3,10 | 0,4 | 54,00 | PCC000550 – Z2052 |
| 60,0 | 44,0 | 56,00 | 20,5 | 3,10 | 0,4 | 59,00 | PCC000600 – Z2052 |
| 63,0 | 47,0 | 59,00 | 20,5 | 3,10 | 0,4 | 62,00 | PCC000630 – Z2052 |
| 65,0 | 49,0 | 61,00 | 20,5 | 3,10 | 0,4 | 64,00 | PCC000650 – Z2052 |
| 70,0 | 54,0 | 66,00 | 20,5 | 3,10 | 0,4 | 69,00 | PCC000700 – Z2052 |
| 75,0 | 59,0 | 71,00 | 20,5 | 3,10 | 0,4 | 74,00 | PCC000750 – Z2052 |
| 80,0 | 62,0 | 76,00 | 22,5 | 3,60 | 0,4 | 79,00 | PCC000800 – Z2052 |
| 90,0 | 72,0 | 86,00 | 22,5 | 3,60 | 0,4 | 89,00 | PCC000900 – Z2052 |
| 100,0 | 82,0 | 96,00 | 22,5 | 3,60 | 0,4 | 99,00 | PCC001000 – Z2052 |
| 110,0 | 92,0 | 106,00 | 22,5 | 3,60 | 0,4 | 109,00 | PCC001100 – Z2052 |
| 125,0 | 103,0 | 121,00 | 26,5 | 5,10 | 0,8 | 124,00 | PCC001250 – Z2052 |
| 140,0 | 118,0 | 136,00 | 26,5 | 5,10 | 0,8 | 139,00 | PCC001400 – Z2052 |
| 150,0 | 128,0 | 146,00 | 26,5 | 5,10 | 0,8 | 149,00 | PCC001500 – Z2052 |
| 160,0 | 138,0 | 156,00 | 26,5 | 5,10 | 0,8 | 159,00 | PCC001600 – Z2052 |
| 165,0 | 143,0 | 161,00 | 26,5 | 5,10 | 0,8 | 164,00 | PCC001650 – Z2052 |
| 170,0 | 148,0 | 166,00 | 26,5 | 5,10 | 0,8 | 169,00 | PCC001700 – Z2052 |
| 180,0 | 158,0 | 176,00 | 26,5 | 5,10 | 0,8 | 179,00 | PCC001800 – Z2052 |
| 200,0 | 175,0 | 196,00 | 31,5 | 6,60 | 0,8 | 199,00 | PCC002000 – Z2052 |
| 250,0 | 220,0 | 242,90 | 35,4 | 6,35 | 0,8 | 248,00 | PCC002500 – Z2052 |
| 270,0 | 240,0 | 262,90 | 35,4 | 6,35 | 0,8 | 267,00 | PCC002700 – Z2052 |
ZURCON COMPACT SEALS
| Bore Dia. | Groove Dimensions | Piston Dia. | Order No. | Polypac Ref. No. | ||||
| DN H9 | d3 h9 | d4 h9 | L1+0.2 | L5+0.1 | r max. | d5 h11 | ||
| 40,0 | 32,0 | 36,0 | 10,0 | 4,2 | 0,2 | 39,40 | PCG000400-Z2052 | EUD4032/1 |
| 50,0 | 38,0 | 46,0 | 20,5 | 4,2 | 0,2 | 49,40 | PCG000500-Z2052 | EUD5038 |
| 50,0 | 40,0 | 46,0 | 12,5 | 4,2 | 0,2 | 49,40 | PCG100500-Z2052 | EUD5040/1 |
| 55,0 | 43,0 | 51,0 | 20,5 | 4,2 | 0,2 | 54,40 | PCG000550-Z2052 | EUD5543 |
| 60,0 | 48,0 | 56,0 | 20,5 | 4,2 | 0,2 | 59,40 | PCG000600-Z2052 | EUD6048 |
| 63,0 | 51,0 | 59,0 | 20,5 | 4,2 | 0,2 | 62,40 | PCG000630-Z2052 | EUD6351 |
| 65,0 | 53,0 | 61,0 | 20,5 | 4,2 | 0,2 | 64,40 | PCG000650-Z2052 | EUD6553 |
| 65,0 | 55,0 | 61,0 | 12,5 | 4,2 | 0,2 | 64,40 | PCG100650-Z2052 | EUD6555/1 |
| 70,0 | 58,0 | 66,0 | 20,5 | 4,2 | 0,2 | 69,40 | PCG000700-Z2052 | EUD7058 |
| 80,0 | 66,0 | 76,0 | 22,5 | 5,2 | 0,2 | 79,40 | PCG000800-Z2052 | EUD8066 |
| 85,0 | 71,0 | 81,0 | 22,5 | 5,2 | 0,2 | 84,40 | PCG000850-Z2052 | EUD8571 |
| 90,0 | 76,0 | 86,0 | 22,5 | 5,2 | 0,2 | 89,40 | PCG000900-Z2052 | EUD9076 |
| 100,0 | 86,0 | 96,0 | 22,5 | 5,2 | 0,2 | 99,40 | PCG001000-Z2052 | EUD10086 |
| 110,0 | 96,0 | 106,0 | 22,5 | 5,2 | 0,2 | 109,40 | PCG001100-Z2052 | EUD11096 |
| 120,0 | 106,0 | 116,0 | 22,5 | 5,2 | 0,2 | 119,40 | PCG001200-Z2052 | EUD120106 |
| 125,0 | 108,0 | 121,0 | 26,5 | 7,2 | 0,4 | 124,40 | PCG001250-Z2052 | EUD125108 |
| 140,0 | 123,0 | 136,0 | 26,5 | 7,2 | 0,4 | 139,40 | PCG001400-Z2052 | EUD140123 |
| 160,0 | 143,0 | 156,0 | 26,5 | 7,2 | 0,4 | 159,40 | PCG001600-Z2052 | EUD160143 |
