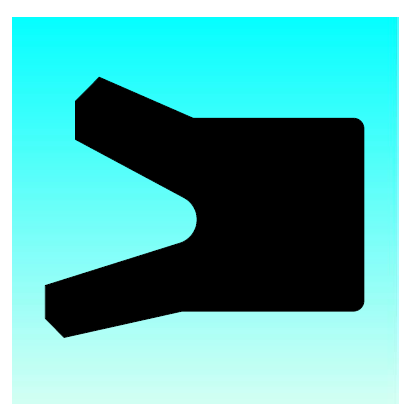

ZURCON U-CUP PUA
Description

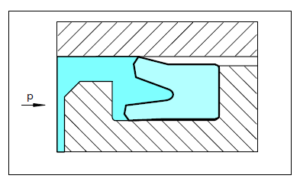

The Zurcon U-Cup PUA is a single acting piston seal out of injection moulded polyurethane. It is provided with a robust dynamic sealing lip and a wide contact area of the static lip, which guaranties an effective positioning in the groove.
The profile is suitable for pressures up to 40 MPa provided that the extrusion gap is adapted to the pressure level. Thanks to the elasticity of the polyurethane material the U Cup can easily be installed in closed grooves.
Advantages
– Simple groove design
– High abrasion resistance
– Long service life
– Effective sealing effect even with non excellent mating surface finish
Application Examples
The Zurcon U-Cup PUA is the recommended sealing element for single acting pistons of hydraulic components such as:
- Presses
- Lift platforms
- Aftermarket
Technical Data
Operating conditions
Pressure: Up to 40 MPa
Speed: Up to 0.5 m/s
Temperature: from -35_C to + 110_C
Media: Mineral oil based hydraulic fluids
Clearance: From table the maximum value of the radial clearance Smax can be selected for dimensioning the piston. The values indicated in this table must be reduced by 30% when temperature exceeds 80_C.
Important Note: Zurcon U-Cup PUA
The above data are maximum values and cannot be used at the same time. e.g. the maximum operating speed depends on material type, pressure, temperature and gap value. Temperature range also dependent on medium.
Materials Zurcon U-Cup PUA
Standard Material:
For hydraulic components in mineral oils or medium with good lubricating performance, polyurethane 93 Shore A
Zurcon Z20
Colour: turquoise

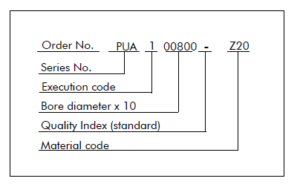

Ordering Example
Bore diameter: DN = 80 mm
Groove diameter: d1 = 65 mm
Groove width: L1 = 13 mm
Part number: PUA100800 (Table)
Material code: Z20
Zurcon U-Cup PUA
| Bore Dia. | Groove Dia. | Seal Width | Groove Width | Fitting Dia. | Part No. | B+S | Sealing Parts Ref. No. |
| DN H9 | d1 h9 | T | L1 +0.2 | d2 min | |||
| 12,0 | 5,0 | 5,5 | 6,0 | 8,0 | PUA000120 | RSE 12 5 | |
| 14,0 | 8,0 | 6,3 | 6,8 | 11,0 | PUA000140 | RSE 14 8 | |
| 16,0 | 10,0 | 6,0 | 6,5 | 13,0 | PUA100160 | * | RSE 16 10/1 |
| 16,0 | 10,0 | 8,0 | 9,0 | 13,0 | PUA200160 | * | RSE 16 10 |
| 20,0 | 12,0 | 6,5 | 7,5 | 15,0 | PUA000200 | * | RSE 20 12 |
| 20,0 | 14,0 | 5,5 | 6,0 | 17,0 | PUA100200 | * | RSE 20 14 |
| 22,0 | 12,0 | 8,0 | 9,0 | 16,0 | PUA000220 | * | RSE 22 12 |
| 25,0 | 10,0 | 10,0 | 11,0 | 14,0 | PUA100250 | * | RSE 25 10 |
| 25,0 | 15,0 | 8,0 | 9,0 | 19,0 | PUA000250 | * | RSE 25 15 |
| 30,0 | 15,0 | 9,5 | 10,5 | 19,0 | PUA300300 | * | – |
| 30,0 | 15,0 | 10,0 | 11,0 | 19,0 | PUA000300 | RSE 30 15 | |
| 30,0 | 20,0 | 8,0 | 9,0 | 24,0 | PUA100300 | * | RSE 30 20 |
| 30,0 | 22,0 | 6,5 | 7,0 | 26,0 | PUA400300 | * | RSE 30 22 |
| 32,0 | 22,0 | 8,0 | 9,0 | 26,0 | PUA000320 | * | RSE 32 22/1 |
| 32,0 | 22,0 | 10,0 | 11,0 | 26,0 | PUA100320 | * | RSE 32 22 |
| 32,0 | 26,0 | 5,0 | 6,0 | 28,0 | PUA200320 | * | RSE 32 26 |
| 34,0 | 22,0 | 8,4 | 9,4 | 26,0 | PUA100340 | RSE 34 22/1 | |
| 34,0 | 22,0 | 9,0 | 10,0 | 26,0 | PUA200340 | RSE 34 22 | |
| 34,0 | 28,0 | 3,5 | 4,0 | 31,0 | PUA000340 | * | – |
| 35,0 | 20,0 | 10,0 | 11,0 | 25,0 | PUA000350 | * | RSE 35 20 |
| 35,0 | 25,0 | 8,0 | 9,0 | 29,0 | PUA100350 | * | RSE 35 25 |
| 35,0 | 27,0 | 10,0 | 11,0 | 31,0 | PUA200350 | * | RSE 35 27 |
| 36,5 | 24,0 | 6,2 | 7,0 | 28,0 | PUA000365 | RSE 36.5 24 | |
| 37,0 | 21,0 | 12,0 | 13,0 | 25,0 | PUA000370 | * | RSE 37 21 |
| 38,0 | 31,0 | 4,7 | 5,2 | 34,0 | PUA000380 | * | RSE 38 31 |
| 40,0 | 25,0 | 10,0 | 11,0 | 30,0 | PUA000400 | * | RSE 40 25 |
| 40,0 | 30,0 | 6,5 | 7,5 | 34,0 | PUA200400 | RSE 40 30/1 | |
| 40,0 | 30,0 | 10,0 | 11,0 | 34,0 | PUA500400 | * | RSE 40 30 |
| 40,0 | 32,0 | 5,5 | 6,5 | 36,0 | PUA300400 | * | – |
| 40,0 | 32,0 | 8,0 | 9,0 | 36,0 | PUA100400 | * | RSE 40 32 |
| 40,0 | 33,0 | 8,0 | 9,0 | 36,0 | PUA400400 | * | RSE 40 33 |
| 42,0 | 32,0 | 10,0 | 11,0 | 36,0 | PUA000420 | RSE 42 32 | |
| 42,0 | 34,5 | 4,2 | 4,7 | 38,0 | PUA100420 | RSE 42 34.5 | |
| 43,0 | 25,0 | 9,0 | 10,0 | 29,0 | PUA000430 | RSE 43 25 | |
| 44,0 | 20,0 | 11,0 | 12,0 | 25,0 | PUA000440 | * | RSE 44 20 |
| 44,0 | 25,0 | 11,0 | 12,0 | 30,0 | PUA100440 | * | – |
| 45,0 | 28,5 | 12,0 | 13,0 | 33,0 | PUA000450 | RSE 45.28.5 | |
| 45,0 | 30,0 | 10,0 | 11,0 | 35,0 | PUA100450 | * | RSE 45 30 |
| 50,0 | 30,0 | 12,0 | 13,0 | 35,0 | PUA500500 | RSE 50 30 | |
| 50,0 | 32,0 | 10,0 | 11,0 | 37,0 | PUA600500 | RSE 50 32 | |
| 50,0 | 35,0 | 8,5 | 9,5 | 40,0 | PUA100500 | * | RSE 50 35/1 |
| 50,0 | 35,0 | 10,0 | 11,0 | 40,0 | PUA200500 | * | RSE 50 35 |
| 50,0 | 40,0 | 5,0 | 5,5 | 44,0 | PUA000500 | RSE 50 40/1 | |
| 50,0 | 40,0 | 8,0 | 9,0 | 44,0 | PUA800500 | * | – |
| 50,0 | 40,0 | 10,0 | 11,0 | 44,0 | PUA400500 | * | RSE 50 40 |
| 50,0 | 42,0 | 5,5 | 6,0 | 45,0 | PUA900500 | * | RSE 50 42/2 |
| 50,0 | 42,0 | 8,0 | 9,0 | 45,0 | PUA700500 | RSE 50 42/1 | |
| 50,0 | 42,0 | 10,0 | 11,0 | 45,0 | PUA300500 | * | RSE 50 42 |
| 50,8 | 40,8 | 7,0 | 8,0 | 45,0 | PUA100508 | RSE 50.8 40.8 | |
| 52,0 | 42,0 | 5,7 | 6,5 | 46,0 | PUA000520 | * | – |
| 52,0 | 42,0 | 10,0 | 10,6 | 46,0 | PUA100520 | RSE 52 42 | |
| 55,0 | 40,0 | 10,0 | 11,0 | 45,0 | PUA000550 | * | RSE 55 40 |
| 55,0 | 45,0 | 10,0 | 11,0 | 48,0 | PUA100550 | * | – |
| 55,0 | 47,0 | 5,7 | 6,3 | 50,0 | PUA200550 | RSE 55 47 | |
| 60,0 | 40,0 | 10,0 | 11,0 | 45,0 | PUA200600 | * | – |
| 60,0 | 40,0 | 12,0 | 13,0 | 45,0 | PUA100600 | * | RSE 60 40 |
| 60,0 | 40,0 | 13,5 | 14,5 | 45,0 | PUA400600 | RSE 60 40/1 | |
| 60,0 | 45,0 | 10,0 | 11,0 | 50,0 | PUA500600 | RSE 60 45 | |
| 60,0 | 50,0 | 5,0 | 5,5 | 54,0 | PUA300600 | RSE 60 50/1 | |
| 60,0 | 50,0 | 7,0 | 8,0 | 54,0 | PUA000600 | RSE 60 50 | |
| 60,0 | 50,0 | 10,0 | 11,0 | 54,0 | PUA600600 | RSE 60 50/2 | |
| 60,0 | 52,0 | 8,0 | 9,0 | 55,0 | PUA700600 | RSE 60 52 | |
| 63,0 | 43,0 | 12,0 | 13,0 | 47,0 | PUA800630 | RSE 63 43 | |
| 63,0 | 45,0 | 10,0 | 11,0 | 50,0 | PUA700630 | RSE 63 45 | |
| 63,0 | 45,0 | 12,0 | 13,0 | 50,0 | PUA600630 | * | – |
| 63,0 | 48,0 | 8,5 | 9,5 | 53,0 | PUA400630 | * | – |
| 63,0 | 48,0 | 10,0 | 11,0 | 53,0 | PUA300630 | RSE 63 48/1 | |
| 63,0 | 48,0 | 12,0 | 13,0 | 53,0 | PUA000630 | * | RSE 63 48 |
| 63,0 | 53,0 | 6,3 | 7,0 | 57,0 | PUA500630 | * | – |
| 63,0 | 53,0 | 7,0 | 8,0 | 57,0 | PUA200630 | * | RSE 63 53 |
| 63,0 | 53,0 | 12,0 | 13,0 | 57,0 | PUA100630 | RSE 63 53/1 | |
| 65,0 | 45,0 | 12,0 | 13,0 | 50,0 | PUA000650 | * | RSE 65 45/1 |
| 65,0 | 45,0 | 13,5 | 14,5 | 50,0 | PUA300650 | RSE 65 45 | |
| 65,0 | 50,0 | 10,0 | 11,0 | 55,0 | PUA100650 | * | RSE 65 50 |
| 65,0 | 50,0 | 11,5 | 12,5 | 55,0 | PUA200650 | * | RSE 65 50/1 |
| 65,0 | 55,0 | 10,0 | 11,0 | 59,0 | PUA400650 | RSE 65 55/1 | |
| 65,0 | 55,0 | 13,5 | 14,5 | 59,0 | PUA500650 | RSE 65 55 | |
| 68,0 | 48,0 | 10,0 | 11,0 | 53,0 | PUA000680 | RSE 68 48 | |
| 70,0 | 50,0 | 12,0 | 13,0 | 55,0 | PUA000700 | * | RSE 70 50 |
| 70,0 | 50,0 | 13,5 | 14,5 | 55,0 | PUA200700 | RSE 70 50/1 | |
| 70,0 | 50,0 | 15,0 | 16,0 | 55,0 | PUA500700 | RSE 70 50/2 | |
| 70,0 | 55,0 | 9,5 | 10,5 | 60,0 | PUA600700 | RSE 70 55/1 | |
| 70,0 | 55,0 | 12,0 | 13,0 | 60,0 | PUA400700 | * | RSE 70 55 |
| 70,0 | 60,0 | 7,0 | 8,0 | 64,0 | PUA100700 | * | RSE 70 60 |
| 70,0 | 60,0 | 12,0 | 13,0 | 64,0 | PUA700700 | RSE 70 60/1 | |
| 70,0 | 60,0 | 13,5 | 14,5 | 64,0 | PUA800700 | RSE 70 60/2 | |
| 70,0 | 62,0 | 7,5 | 8,5 | 65,0 | PUA300700 | RSE 70 62 | |
| 72,0 | 58,0 | 12,0 | 13,0 | 62,0 | PUA000720 | RSE 72 58 | |
| 75,0 | 50,0 | 14,0 | 15,0 | 55,0 | PUA000750 | RSE 75 50 | |
| 75,0 | 55,0 | 13,5 | 14,5 | 60,0 | PUA100750 | * | RSE 75 55 |
| 75,0 | 65,0 | 5,0 | 5,5 | 69,0 | PUA200750 | RSE 75 65/1 | |
| 75,0 | 65,0 | 6,7 | 7,5 | 69,0 | PUA300750 | RSE 75 65/3 | |
| 75,0 | 65,0 | 10,0 | 11,0 | 69,0 | PUA400750 | RSE 75 65/2 | |
| 75,0 | 65,0 | 7,0 | 8,0 | 69,0 | PUA500750 | RSE 75 65/4 | |
| 75,0 | 65,0 | 13,5 | 14,5 | 69,0 | PUA600750 | RSE 75 65 | |
| 76,0 | 56,0 | 12,0 | 13,0 | 61,0 | PUA000760 | * | – |
| 80,0 | 60,0 | 10,0 | 11,0 | 65,0 | PUA400800 | * | – |
| 80,0 | 60,0 | 11,5 | 12,5 | 65,0 | PUA500800 | * | – |
| 80,0 | 60,0 | 12,0 | 13,0 | 65,0 | PUA000800 | * | RSE 80 60 |
| 80,0 | 60,0 | 13,5 | 14,5 | 65,0 | PUA200800 | RSE 80 60/1 | |
| 80,0 | 65,0 | 12,0 | 13,0 | 70,0 | PUA100800 | * | RSE 80 65 |
| 80,0 | 68,0 | 8,5 | 9,5 | 72,0 | PUA300800 | * | – |
| 80,0 | 70,0 | 12,0 | 13,0 | 74,0 | PUA700800 | RSE 80 70/1 | |
| 80,0 | 70,0 | 7,0 | 8,0 | 74,0 | PUA600800 | RSE 80 70 | |
| 80,0 | 72,0 | 12,0 | 13,0 | 75,0 | PUA800800 | RSE 80 72 | |
| 85,0 | 65,0 | 12,0 | 13,0 | 70,0 | PUA100850 | * | – |
| 85,0 | 65,0 | 13,5 | 14,5 | 70,0 | PUA200850 | * | RSE 85 65 |
| 85,0 | 70,0 | 12,0 | 13,0 | 75,0 | PUA300850 | * | – |
| 85,0 | 75,0 | 10,0 | 11,0 | 79,0 | PUA400850 | RSE 85 75/1 | |
| 85,0 | 75,0 | 12,0 | 13,0 | 79,0 | PUA000850 | RSE 85 75 | |
| 90,0 | 70,0 | 12,0 | 13,0 | 75,0 | PUA100900 | * | RSE 90 70 |
| 90,0 | 70,0 | 13,5 | 14,5 | 75,0 | PUA200900 | RSE 90 70/1 | |
| 90,0 | 75,0 | 12,0 | 13,0 | 80,0 | PUA300900 | * | RSE 90 75 |
| 90,0 | 80,0 | 5,0 | 5,5 | 84,0 | PUA500900 | RSE 90 80/2 | |
| 90,0 | 80,0 | 10,0 | 11,0 | 84,0 | PUA000900 | RSE 90 80/1 | |
| 90,0 | 80,0 | 13,0 | 14,0 | 84,0 | PUA400900 | RSE 90 80 | |
| 95,0 | 75,0 | 13,5 | 14,5 | 80,0 | PUA100950 | RSE 95 75 | |
| 95,0 | 80,0 | 12,0 | 13,0 | 85,0 | PUA000950 | * | – |
| 95,0 | 85,0 | 6,7 | 7,5 | 89,0 | PUA200950 | RSE 95 85/2 | |
| 95,0 | 85,0 | 7,0 | 8,0 | 89,0 | PUA300950 | RSE 95 85 | |
| 95,0 | 85,0 | 8,5 | 9,5 | 89,0 | PUA400950 | RSE 95 85/1 | |
| 95,0 | 85,0 | 13,5 | 14,5 | 89,0 | PUA500950 | RSE 95 85/3 | |
| 100,0 | 80,0 | 10,0 | 11,0 | 85,0 | PUA501000 | RSE 100 80/2 | |
| 100,0 | 80,0 | 11,5 | 12,5 | 85,0 | PUA201000 | * | – |
| 100,0 | 80,0 | 12,0 | 13,0 | 85,0 | PUA001000 | RSE 100 80 | |
| 100,0 | 80,0 | 13,5 | 14,5 | 85,0 | PUA601000 | RSE 100 80/1 | |
| 100,0 | 85,0 | 8,5 | 9,5 | 90,0 | PUA301000 | * | – |
| 100,0 | 85,0 | 12,0 | 13,0 | 90,0 | PUA401000 | * | RSE 100 85 |
| 100,0 | 86,0 | 12,0 | 13,0 | 90,0 | PUA701000 | RSE 100 86 | |
| 100,0 | 88,0 | 8,5 | 9,5 | 93,0 | PUA101000 | * | – |
| 100,0 | 90,0 | 7,0 | 8,0 | 94,0 | PUA801000 | RSE 100 90 | |
| 100,0 | 90,0 | 10,5 | 11,5 | 94,0 | PUA901000 | RSE 100 90/1 | |
| 101,6 | 80,0 | 12,0 | 13,0 | 85,0 | PUA001016 | RSE 101.6 80 | |
| 105,0 | 90,0 | 12,0 | 13,0 | 95,0 | PUA001050 | * | RSE 105 90 |
| 110,0 | 90,0 | 12,0 | 13,0 | 95,0 | PUA001100 | RSE 110 90 | |
| 110,0 | 95,0 | 12,0 | 13,0 | 100,0 | PUA101100 | * | RSE 110 95 |
| 110,0 | 100,0 | 7,0 | 8,0 | 104,0 | PUA201100 | RSE 110 100 | |
| 110,0 | 100,0 | 13,5 | 14,5 | 104,0 | PUA301100 | RSE 110 100/1 | |
| 115,0 | 100,0 | 10,5 | 11,5 | 105,0 | PUA101150 | RSE 115 100 | |
| 115,0 | 100,0 | 12,0 | 13,0 | 105,0 | PUA001150 | * | – |
| 115,0 | 105,0 | 13,5 | 14,5 | 109,0 | PUA201150 | RSE 115 105 | |
| 120,0 | 95,0 | 12,0 | 13,0 | 100,0 | PUA401200 | RSE 120 95 | |
| 120,0 | 100,0 | 12,0 | 13,0 | 105,0 | PUA001200 | * | RSE 120 100 |
| 120,0 | 100,0 | 13,5 | 14,5 | 105,0 | PUA101200 | RSE 120 100/1 | |
| 120,0 | 103,0 | 16,0 | 17,0 | 108,0 | PUA501200 | RSE 120 103 | |
| 120,0 | 105,0 | 12,0 | 13,0 | 110,0 | PUA301200 | * | – |
| 125,0 | 100,0 | 15,0 | 16,0 | 105,0 | PUA201250 | * | – |
| 125,0 | 105,0 | 12,0 | 13,0 | 110,0 | PUA301250 | * | RSE 125 105 |
| 125,0 | 105,0 | 15,0 | 16,0 | 110,0 | PUA001250 | * | RSE 125 105/1 |
| 125,0 | 110,0 | 10,0 | 11,0 | 115,0 | PUA101250 | * | – |
| 125,0 | 110,0 | 12,0 | 13,0 | 115,0 | PUA401250 | * | – |
| 125,0 | 115,0 | 7,0 | 8,0 | 119,0 | PUA501250 | RSE 125 115 | |
| 125,0 | 115,0 | 15,0 | 16,0 | 119,0 | PUA601250 | RSE 125 115/1 | |
| 130,0 | 110,0 | 15,0 | 16,0 | 115,0 | PUA001300 | * | – |
| 140,0 | 120,0 | 12,0 | 13,0 | 125,0 | PUA001400 | * | – |
| 150,0 | 130,0 | 15,0 | 16,0 | 135,0 | PUA101500 | * | – |
| 160,0 | 140,0 | 11,5 | 12,5 | 145,0 | PUA001600 | * | – |
| 165,0 | 145,0 | 15,0 | 16,0 | 150,0 | PUA001650 | * | – |
| 180,0 | 160,0 | 11,5 | 12,5 | 165,0 | PUA201800 | * | – |
| 200,0 | 170,0 | 19,0 | 20,0 | 175,0 | PUA002000 | * | – |
| 200,0 | 175,0 | 15,0 | 16,0 | 180,0 | PUA102000 | * | – |
| 250,0 | 220,0 | 19,0 | 20,0 | 225,0 | PUA002500 | * | – |
| 250,0 | 225,0 | 15,0 | 16,0 | 230,0 | PUA102500 | * | – |
Beoordelingen
Er zijn nog geen beoordelingen.
