KDSA PISTON SEAL
DESCRIPTION

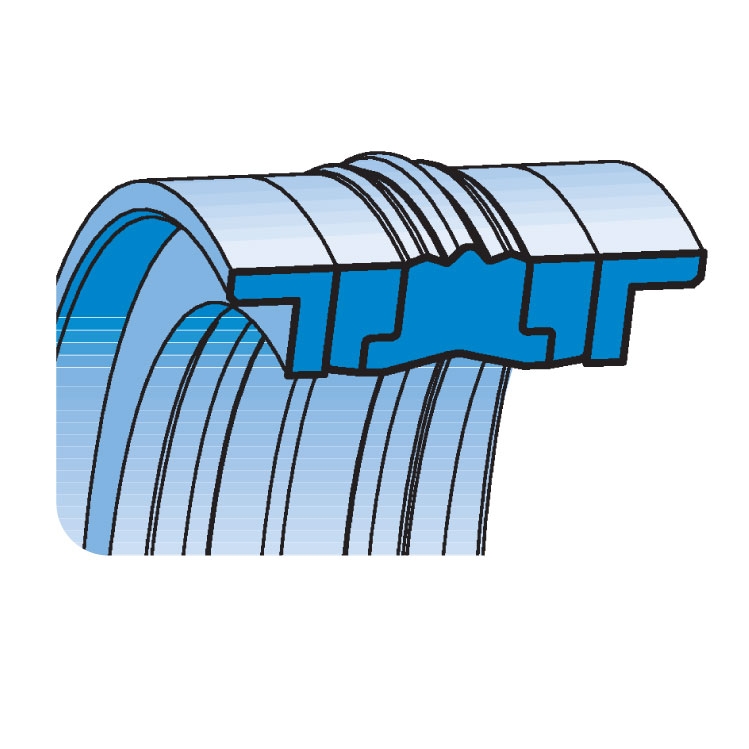

In the compact seals two profiles are available: KDSA and KDSB. KDSA Piston Seal is composed of a central unit made of nitrilic rubber working as a seal, two side supports, working as anti-extrusion rings, and two external guide rings, keeping the piston position in the cylinder aligned.
TECHNICAL DATA
Pressure: from 0 to 300 bar with peak still 400 bar at 60°C
Speed: <0.5 m/s
Temperature: from -30°C to +100°C
Fluids: Mineral oils
MATERIAL
The compounds used to manufacture this seal type are the following:
– the centralun it is made of NBR , the hardness is 70 Sh A ± 3
– the side supports are made of thermo plastic elastomer (TPE)
-the external wearrings are made of polyacetalic resin (POM) Compound reference: CX
ASSEMBLY
The assembly of this seal can be carried out in either closed groove, on a monobloc piston, or in open groove, on a two-part piston. The assembly order is as follows:
- rubber element;
- supports;
- wear rings.
The piston must not have machining scores which might damage the rubber unit during the installation.
DRAWING KDSA PISTON SEAL
ARTICLES KDSA PISTON SEAL
| Dh9 | dh9 | E+0,2 | d1h9 | d2±0,2 | E1 0/+0,1 | C | R | ART / ITEM | ||||
| 32,0 | 24,0 | 15,5 | 28,0 | 31,4 | 3,2 | 0,4 | 3,5 | KDSA | 0320 | 0240 | 155 | CX |
| 40,0 | 32,0 | 15,5 | 36,0 | 39,4 | 3,2 | 0,4 | 4,0 | KDSA | 0400 | 0320 | 155 | CX |
| 50,0 | 38,0 | 20,5 | 46,0 | 49,4 | 4,2 | 0,4 | 4,0 | KDSA | 0500 | 0380 | 205 | CX |
| 60,0 | 48,0 | 20,5 | 56,0 | 59,4 | 4,2 | 0,4 | 4,5 | KDSA | 0600 | 0480 | 205 | CX |
| 63,0 | 51,0 | 20,5 | 59,0 | 62,4 | 4,2 | 0,4 | 4,5 | KDSA | 0630 | 0510 | 205 | CX |
| 70,0 | 58,0 | 20,5 | 66,0 | 69,4 | 4,2 | 0,4 | 4,5 | KDSA | 0700 | 0580 | 205 | CX |
| 80,0 | 66,0 | 22,5 | 76,0 | 79,4 | 5,2 | 0,4 | 4,5 | KDSA | 0800 | 0660 | 225 | CX |
| 90,0 | 76,0 | 22,5 | 86,0 | 89,4 | 5,2 | 0,4 | 4,5 | KDSA | 0900 | 0760 | 225 | CX |
| 100,0 | 86,0 | 22,5 | 96,0 | 99,4 | 5,2 | 0,4 | 5,0 | KDSA | 1000 | 0860 | 225 | CX |
| 110,0 | 96,0 | 22,5 | 106,0 | 109,4 | 5,2 | 0,4 | 5,0 | KDSA | 1100 | 0960 | 225 | CX |
| 120,0 | 106,0 | 22,5 | 116,0 | 119,4 | 5,2 | 0,8 | 5,0 | KDSA | 1200 | 1060 | 225 | CX |
| 125,0 | 108,0 | 26,5 | 121,0 | 124,4 | 7,2 | 0,8 | 5,0 | KDSA | 1250 | 1080 | 265 | CX |
| 130,0 | 113,0 | 26,5 | 126,0 | 129,4 | 7,2 | 0,8 | 5,0 | KDSA | 1300 | 1130 | 265 | CX |
| 140,0 | 123,0 | 26,5 | 136,0 | 139,4 | 7,2 | 0,8 | 5,0 | KDSA | 1400 | 1230 | 265 | CX |
| 150,0 | 133,0 | 26,5 | 146,0 | 149,4 | 7,2 | 0,8 | 5,0 | KDSA | 1500 | 1330 | 265 | CX |
| 160,0 | 143,0 | 26,5 | 156,0 | 159,4 | 7,2 | 0,8 | 5,0 | KDSA | 1600 | 1430 | 265 | CX |
