Claron Polyseal Double Acting Rod seal CS1 CS3

Get a quote

Design:

Claron composite seals styles CS1 and CS 3 are designed for use in light duty hydraulic or pneumatic rod applications. Style CS1 covers the range of imperial sizes, and the CS3 metric sizes.

For advice on installation, refer to Appendix.

Materials:

Claron composite seals style CS1 and CS3 as standard comprise of a Virgin PTFE inner sleeve and are energised by a 75° shore hardness Nitrile rubber O-Ring. A full range of materials are available to suit a variety of applications.

See tables in Appendix.

Operating conditions:

Maximum Working Pressure for “Standard” seal applications using specified tolerances. Temp Range:                                  -40°C to +120°C          (Dependent upon energiser material. See Appendix) Max. Pressure:                         350 Bar

Max. Linear Speed:         15m/s

These range parameters are maximum conditional values

Optimum service conditions are affected by temperature, speed pressure, surface finish and extrusion gaps.. Refer to Appendix 1 for further information.

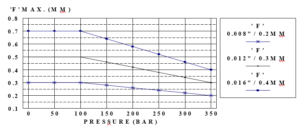

To use this graph, refer to the tables on page for the max. value of ‘F’ at 350 Bar then apply the relevant curve for the various pressures.

The maximum extrusion gap ‘F/2’ should be calculated allowing for all movements due to tolerances,

side-loads and cylinder expansion.

Diametral Clearance ‘F’

‘F’ shown in the size tables is based upon Virgin P.T.F.E., temperatures up to 80oC and 350 Bar pressure in designs where PTFE guide tape is utilised. For other pressures, refer to the graph shown below.



How to order:

When ordering, quote the size reference shown on the dimensions table.

If an energiser material other than the standard nitrile type is required, consult Claron for the part number to be used.

For the seal to function correctly it is important that care is taken during fitting. For details refer to Appendix.\

Claron h9         ±0.075 Tol.
On
Max Max
350 Bar
Claron h9     ±0.003                            Tol.            Max
On
Ød         L         S                   R
Max
350 Bar
F
CS 10025 0.250       0.094      0.080    +0.002    0.010      0.008
CS 10031 0.312                                    -0
CS 10037 0,375
CS 10043 0.437
+0.003
CS 10050 0.500       0.141      0.111     -0           0.020      0.008
CS 10056 0,562
CS 10062 0,625
CS 10068 0,687
CS 10075 0,750
CS 10081 0,812
CS 10087 0,875
CS 10093 0,937
CS 10100 1,000
CS 10106 1.062
+0.004
CS 10112 1.125       0.188      0.152     -0           0.030      0.008
CS 10118 1,187
CS 10125 1,250
CS 10131 1,312
CS 10137 1,375
CS 10143 1,437
CS 10150/1 1,500
CS 10156 1,562
CS 10168 1,687
CS 10150 1,500
CS 10162 1,625
CS 10175 1,750
CS 10187 1,875
CS 10200 2,000
CS 10212 2,125
CS 10225 2,250
CS 10237 2,375
CS 10250 2,500
CS 10262 2,625
CS 10275 2,750
CS 10287 2.875
+0.004
CS 10300 3.000       0.281      0.244     -0           0.040      0.012
CS 10312 3,125
CS 10325 3,250
CS 10337 3,375
CS 10350 3,500
CS 10362 3,625
CS 10375 3,750
CS 10387 3,875
CS 10400 4,000
CS 10412 4,125
CS 10425 4,250
CS 10437 4,375
CS 10450 4,500
CS 10462 4,625
CS 10475 4,750
CS 10487 4,875
CS 10500 5,000
CS 10512 5.125
+0.005
CS 10525 5.250       0.375      0.328     -0           0.040      0.016
CS 10537 5,375
CS 10550 5,500
CS 10562 5,625
CS 10575 5,750
CS 10587 5,875
CS 10600 6,000
CS 10800 8,000
issue 1 – 20/10/98 C19-2
CS 3007 Ød
7
L S         S        R1              F
CS 3008 8
CS 3009 9
CS 3010 10
CS 3011 11
CS 3012 12 3,60 3.00     +0.075     0.50         0.20
-0
CS 3013 13
CS 3014 14
CS 3015 15
CS 3016 16
CS 3017
CS 3018
17
18
CS 3020 20
CS 3022 22
CS 3023 23
CS 3024 24
CS 3025 25
CS 3026 26
CS 3027 27
CS 3028 28
CS 3029 29
CS 3030 30
CS 3031 31
CS 3032 32 4,80 4.00     +0.10       0.75         0.20
-0
CS 3033 33
CS 3034 34
CS 3035 35
CS 3036 36
CS 3037 37
CS 3038 38
CS 3039 39
CS 3040 40
CS 3041 41
CS 3042 42
CS 3043 43
CS 3044 44
CS 3045 45
CS 3050 50
CS 3053 53
CS 3055 55
CS 3056 56
CS 3060 60
CS 3063 63
CS 3065 65
CS 3070 70 7,15 6.20     +0.10       1.00         0.30
-0
CS 3075 75
CS 3080 80
CS 3085 85
CS 3090 90
CS 3095 95
CS 3100 100
CS 3105 105
CS 3110
CS 3120
110
120
CS 3125 125
CS 3130 130
CS 3135 135 9,50 8.40     +0.10       1.00         0.40
-0
CS 3140 140
CS 3145 145
CS 3150 150
CS 3155 155
CS 3160
160
