Design:
The Claron style CPG is an asymmetrical profiled lip seal designed for medium duty rod applications. Features include an outside diameter specifically designed for static face sealing and a robust inner lip with a secondary supporting sealing edge for high performance sealing. Manufactured in a high performance grade of Polyurethane for outstanding abrasion and extrusion resistance combined with flexibility for ease of installation.
| Maximum Pressure | ||
| Max Speed | Temp. Range | Temp. Range |
| m/s | -40°C to 80°C | -40°C to 110°C |
| 0.50 | 280 Bar | 250 Bar |
| 0.15 | 400 Bar | 350 Bar |
These range perameters are Maximum simultaneous conditions. Optimum service conditions are affected by temperature, speed, pressure, surface finish and extrusion gaps.
Refer to Appendix 1 for further information.
| AU Polyurethane | ||
| DIN | Hydraulic Fluid Description | °C |
| H | Mineral oil without additives | 100 |
| H-L | Mineral Fluid with anti corrosion and anti ageing additives | 100 |
| H-LP | Mineral oil as HL plus additives reducing wear, raising load | 100 |
| H-LPD | Mineral oil as H-LP but with detergents and dispersants | 100 |
| H-V | Mineral oil as H-LP plus improved viscosity temp. | 100 |
| HFA E | Emulsions of mineral oil in water. Water content 80-95% | 40 |
| HFA S | Synthetic oil in water. Water content 80-95% | 40 |
| HFB | Emulsions of water in mineral oil. Water content 40% | 40 |
| HFC | Aqueous polymer solutions. Water content 35% | ns |
| HFD R | Phosphoric acid ester based | ns |
| HFD S | Chlorinated hydrocarbon based | ns |
| HFD T | Mixtures of HFD R and HFD S | ns |
| HEPG | Polyglycol based | ns |
| HETG | Vegetable Oil based | 60 |
| HEES | Fully synthetic ester based | 60 |
Note: Clearance gap F is the maximum permissable. i.e. gap completely on one side, in the temperature range of -30°C to 80°C
The use of a suitably selected Claron bearing ring will effectively reduce the clearance gap F max. to a value closer to F/2 thus increasing the pressure capability of the seal.
Housing:

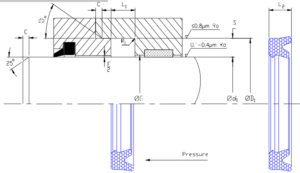

For surface finish and recommended lead in chamfers refer to the illustration below. For housing dimensions and machining tolerances refer to the catalogue page of selected seal. Refer to Appendix 4 for value of tolerance symbols.
Fitting:
For the seal to function correctly, it is important that care be taken in fitting the seal within its housing. For a detailed checklist, refer to Appendix 3.
| Part Number | f8 H9 | Js 11 | +0.25 -0.00 |
Nominal | Nominal | Min | Max. | ||||||||||
| Ød1 ØG | ØD1 | L1 | L2 | S | C | R1 | |||||||||||
| CPG 014024 | 14 | 24 | 8,0 | 7,3 | 5,0 | 2,5 | 0,3 | ||||||||||
| CPG 016022 | 16 | 22 | 5,0 | 4,5 | 3,0 | 2,5 | 0,3 | ||||||||||
| CPG 016022/1 | 16 | 22 | 6,0 | 5,4 | 3,0 | 2,5 | 0,3 | ||||||||||
| CPG 020026 | 20 | 26 | 5,5 | 5,0 | 3,0 | 2,5 | 0,3 | ||||||||||
| CPG 022030 | 22 | 30 | 6,3 | 5,7 | 4,0 | 2,5 | 0,3 | ||||||||||
| CPG 025033 | 25 | 33 | 7,5 | 6,8 | 4,0 | 2,5 | 0,3 | ||||||||||
| CPG 025033/1 | 25 | 33 | 6,3 | 5,7 | 4,0 | 2,5 | 0,3 | ||||||||||
| CPG 028038 | 28 | 38 | 8,0 | 7,3 | 5,0 | 2,5 | 0,3 | ||||||||||
| CPG 028040 | 28 | 40 | 9,0 | 8,0 | 6,0 | 2,5 | 0,3 | ||||||||||
| CPG 030038 | 30 | 38 | 9,0 | 8,2 | 4,0 | 2,5 | 0,3 | ||||||||||
| CPG 030040 | 30 | 40 | 11,0 | 10,0 | 5,0 | 2,5 | 0,3 | ||||||||||
| CPG 030040/1 | 30 | 40 | 7,5 | 7,0 | 5,0 | 2,5 | 0,3 | ||||||||||
| CPG 032040 | 32 | 40 | 7,5 | 6,5 | 4,0 | 2,5 | 0,3 | ||||||||||
| CPG 032042 | 32 | 42 | 11,0 | 10,0 | 5,0 | 2,5 | 0,3 | ||||||||||
| CPG 032042/1 | 32 | 42 | 8,0 | 7,0 | 5,0 | 2,5 | 0,3 | ||||||||||
| CPG 035045 | 35 | 45 | 11,0 | 10,0 | 5,0 | 2,5 | 0,3 | ||||||||||
| CPG 036044/1 | 36 | 44 | 9,0 | 8,0 | 4,0 | 2,5 | 0,3 | ||||||||||
| CPG 040048 | 40 | 48 | 6,3 | 5,7 | 4,0 | 2,5 | 0,3 | ||||||||||
| CPG 040050 | 40 | 50 | 11,0 | 10,0 | 5,0 | 2,5 | 0,3 | ||||||||||
| CPG 040050/2 | 40 | 50 | 8,0 | 7,3 | 5,0 | 2,5 | 0,3 | ||||||||||
| CPG 040055 | 40 | 55 | 11,0 | 10,0 | 7,5 | 4,0 | 0,4 | ||||||||||
| CPG 045055 | 45 | 55 | 8,0 | 7,3 | 5,0 | 2,5 | 0,3 | ||||||||||
| CPG 045055/1 | 45 | 55 | 7,5 | 6,5 | 4,0 | 2,5 | 0,3 | ||||||||||
| CPG 045055/2 | 45 | 55 | 11,0 | 10,0 | 5,0 | 2,5 | 0,3 | ||||||||||
| CPG 050060 | 50 | 60 | 8,0 | 7,3 | 5,0 | 2,5 | 0,3 | ||||||||||
| CPG 050060/1 | 50 | 60 | 11,0 | 10,0 | 5,0 | 2,5 | 0,3 | ||||||||||
| CPG 050065 | 50 | 65 | 12,0 | 10,9 | 7,5 | 4,0 | 0,3 | ||||||||||
| CPG 055065/1 | 55 | 65 | 9,0 | 8,2 | 5,0 | 2,5 | 0,3 | ||||||||||
| CPG 060075 | 60 | 75 | 11,0 | 10,0 | 7,5 | 4,0 | 0,4 | ||||||||||
| CPG 060075/1 | 60 | 75 | 12,5 | 11,4 | 7,5 | 4,0 | 0,4 | ||||||||||
| CPG 065085 | 65 | 85 | 12,5 | 11,4 | 10,0 | 4,0 | 0,4 | ||||||||||
| CPG 070085 | 70 | 85 | 12,5 | 11,4 | 7,5 | 4,0 | 0,4 | ||||||||||
| CPG 080091 | 80 | 91 | 8,0 | 7,1 | 5,5 | 2,5 | 0,3 | ||||||||||
| CPG 10001250 | 1,000 | 1,250 | 0,207 | 0,187 | 0,125 | 0,093 | 0,010 | |
| CPG 11251375 | 1,125 | 1,375 | 0,207 | 0,187 | 0,125 | 0,093 | 0,016 | |
| CPG 12501500 | 1,250 | 1,500 | 0,275 | 0,250 | 0,125 | 0,093 | 0,010 | |
| CPG 12501625/2 | 1,250 | 1,625 | 0,275 | 0,250 | 0,187 | 0,093 | 0,016 | |
| CPG 12501625/1 | 1,250 | 1,625 | 0,207 | 0,187 | 0,187 | 0,093 | 0,016 | |
| CPG 12501625 | 1,250 | 1,625 | 0,300 | 0,280 | 0,187 | 0,093 | 0,016 | |
| CPG 12501750 | 1,250 | 1,750 | 0,413 | 0,380 | 0,250 | 0,125 | 0,020 | |
| CPG 12501750/1 | 1,250 | 1,750 | 0,275 | 0,250 | 0,250 | 0,125 | 0,020 | |
| CPG 13751750 | 1,375 | 1,750 | 0,375 | 0,341 | 0,187 | 0,093 | 0,016 | |
| CPG 15001750 | 1,500 | 1,750 | 0,275 | 0,250 | 0,125 | 0,093 | 0,010 | |
| CPG 15001875 | 1,500 | 1,875 | 0,275 | 0,250 | 0,187 | 0,093 | 0,016 | |
| CPG 15002000/1 | 1,500 | 2,000 | 0,275 | 0,250 | 0,250 | 0,125 | 0,020 | |
| CPG 15002000 | 1,500 | 2,000 | 0,413 | 0,375 | 0,250 | 0,125 | 0,020 | |
| CPG 16252000 | 1,625 | 2,000 | 0,413 | 0,375 | 0,187 | 0,093 | 0,016 | |
| CPG 17502125 | 1,750 | 2,125 | 0,275 | 0,250 | 0,187 | 0,093 | 0,016 | |
| CPG 17502250/1 | 1,750 | 2,250 | 0,275 | 0,250 | 0,250 | 0,125 | 0,020 | |
| CPG 17502250 | 1,750 | 2,250 | 0,413 | 0,375 | 0,250 | 0,125 | 0,020 | |
| CPG 20002500 | 2,000 | 2,500 | 0,413 | 0,375 | 0,250 | 0,125 | 0,020 | |
| CPG 20002500/1 | 2,000 | 2,500 | 0,275 | 0,250 | 0,250 | 0,093 | 0,020 | |
| CPG 22502625 | 2,250 | 2,625 | 0,207 | 0,187 | 0,187 | 0,093 | 0,016 | |
| CPG 25003000 | 2,500 | 3,000 | 0,275 | 0,250 | 0,250 | 0,125 | 0,020 | |
| CPG 25003125 | 2,500 | 3,125 | 0,550 | 0,500 | 0,312 | 0,216 | 0,046 | |
| CPG 30003750 | 3,000 | 3,750 | 0,688 | 0,625 | 0,375 | 0,187 | 0,046 | |
