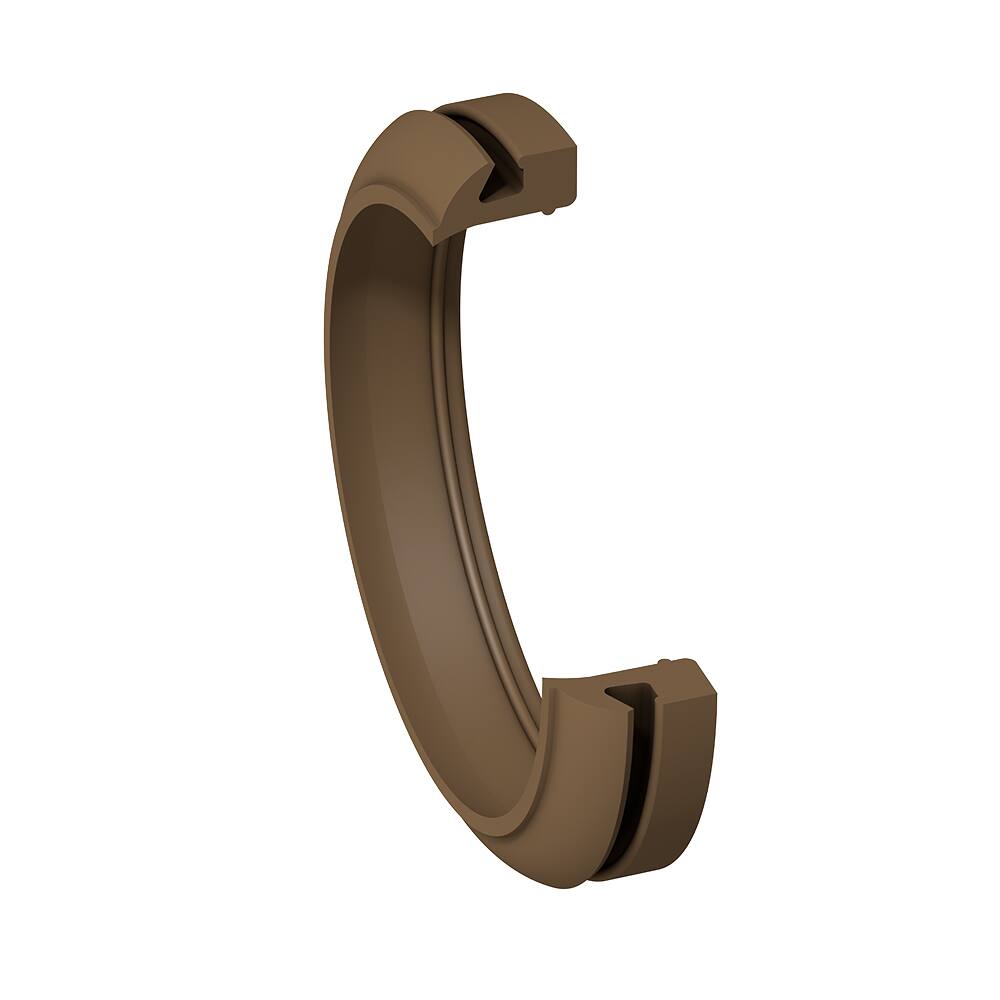

Parker Prädifa Rod Seals A6

Get a quote

The Parker prädifa PDF scraper rings have a AG Profile,  the task with dynamic rod guides with greater radial play the ingress of dust, dirt, grains of sand, and metal shavings to prevent. This is achieved through their special shape. You prevent largely the scoring, protect the guide parts, and extend the service life of the seals.

The scraper gives you a technical clean conclusion. Are for installation no special screw rings or holding plates necessary. It does not require tight fits and allows a perfect stripping on the rod,
even with possible center deviations »X« up to 1.5 mm, depending on the rod diameter.

Scope of application:

Operating temperature: -20 to + 100o C.
Gliding speed: S 4 m / s
For underground mining equipment, such as setting punches and the like, mobile hydraulics, and valve spindles, and telescopes.

Installation instructions:

The Parker Praedifa PDF scraper ring profile A6 can be installed in easy-to-install installation spaces by snap mounting.
No special holding plates or screw rings are necessary.

Compounds:

The standard material is a PDF special elastomer with a hardness of 92 Shore A.

In the case of special operating conditions (temperature, speed, etc.), please contact our Application Technology department, who will match the material and construction to your specific application.

Ø d D H Order code
20 28 7 A62006N3764
25 33 7 A62050N3764
35 45 10 A63050N3764
36 44 7 A63055N3764
40 50 10 A64025N3764
45 55 10 A64033N3764
50 60 10 A65005N3764
55 65 10 A65015N3764
60 70 10 A66015N3764
70 83 12 A67015N3764
75 88 12 A67030N3764
80 93 12 A68015N3764
85 98 12 A68030N3764
90 103 12 A69015N3764
100 111,4 10,2 A6A016N3764
100 113 12 A6A015N3764
105 118 12 A6A030N3764
110 123 12 A6B010N3764
115 128 12 A6B050N3764
120 136 14 A6C005N3764
122 133,4 10,2 A6C012N3764
125 138 12 A6C018N3764
130 146 14 A6D020N3764
140 153 14 A6E012N3764
140 156 14 A6E015N3764
145 156,4 10,2 A6E045N3764
150 163 12 A6F021N3764
150 166 14 A6F024N3764
154 170 14 A6F035N3764
160 176 14 A6G015N3764
165 178 14 A6G050N3764
168 179,4 10,2 A6G068N3764
170 186 14 A6H010N3764
175 191 14 A6H050N3764
180 196 14 A6J096N3764
190 201,4 10,2 A6K001N3764
190 206 14 A6K005N3764
210 230 20 A6L055N3764
220 240 20 A6M010N3764
230 250 20 A6M030N3764
260 280 20 A6O005N3764
