MPS PISTON SEAL



DESCRIPTION

The MPS Piston Seal has been specifically built for pneumatic cylinders both for compact short stroke and single and double action stroke applications. To ensure long cylinder service life, the MPS seal itself performs a sliding action, obtaining proper lubrication through specific notches which collect and store the grease. The groove between two MPS seals is the right housing for the magnet. For specific needs or problems, our technical office is at your complete disposal with tailor-made projects and solutions.



TECHNICAL DATA

Pressure: <20 bar

Speed: <1 m/s

Temperature: from -30°C up to +90°C

Fluids: air with or without lubrication, mineral oils or grease



MATERIAL

Standard polyurethane 90 Sh A. Standard compound reference: B0
Alternative polyurethane 85 Sh A. Alternative compound reference: A0



ASSEMBLY

Eliminate any cutting edges and flash in the housing to prevent damage to seals during mounting.
The installation is made by overlapping the seals and the piston diameter.

Warning: the piston must be shaped according to the drawing of the MPS dimensions table

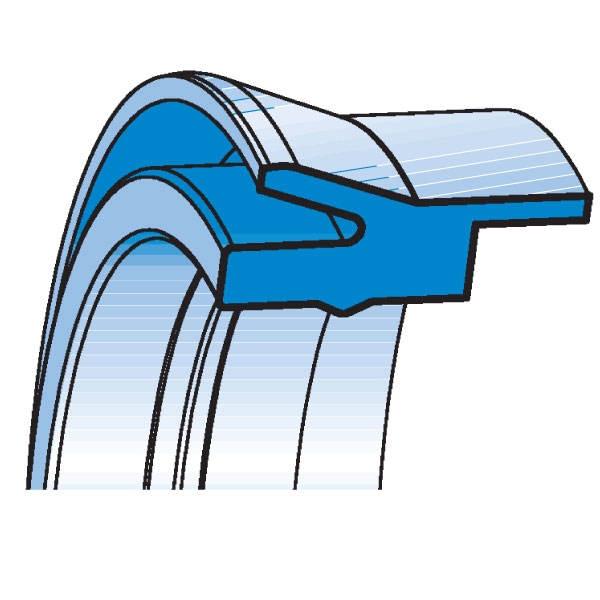

DRAWING MPS PISTON SEAL

mps piston seal artic seals



ARTICLES MPS PISTON SEAL

Dh11 dh9 toll h9 h1 h d1 M P b ART/ITEM
8,0 4,0 0/-0.030 12,0 6,0 6,5 4,0 0,35 4,00 MPS 0080 0040 040 120 B0
10,0 4,0 0/-0.030 12,0 6,0 8,5 3,0 0,35 3,50 MPS 0100 0040 030 120 B0
12,0 6,0 0/-0.030 12,0 6,0 10,5 3,0 0,40 3,50 MPS 0120 0060 030 120 B0
16,0 8,0 0/-0.036 12,0 6,0 14,5 3,0 0,40 3,50 MPS 0160 0080 030 120 B0
20,0 10,0 0/-0.036 12,0 6,0 18,0 3,0 0,50 3,50 MPS 0200 0100 030 120 B0
25,0 10,0 0/-0.036 12,0 6,0 23,0 3,0 0,50 3,50 MPS 0250 0100 030 120 B0
