SPS PISTON SEAL
DESCRIPTION

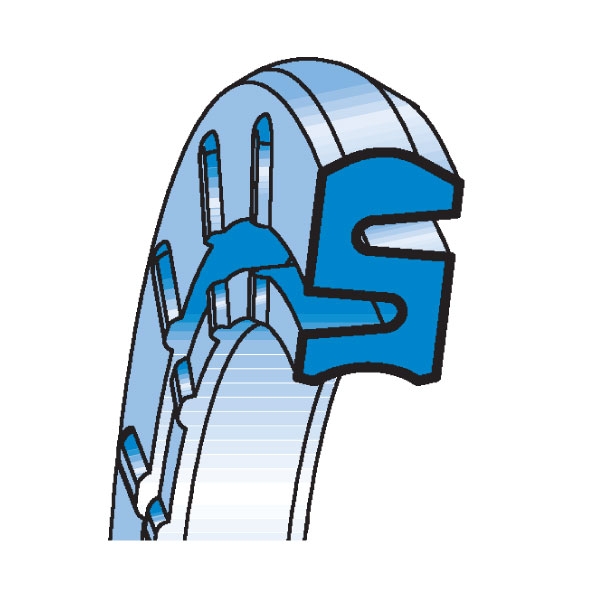

The SPS Piston Seal has been designed for pneumatic cylinders applications. Where the overall dimensions allow, the SPS can also be used for pneumatic valves. The reduced overall dimensions result in the a short machining time of the system. Its profile is rounded in the middle on the dynamic lip and has two projections on the static lip. This symmetrical shape facilitates installation. The special spring shaped profile ensures a high flexibility in the system even at low pressure.
TECHNICAL DATA
SPS Piston Seal
Pressure: <20 bar
Speed: <1 m/s
Temperature: from -30°C up to + 90°C
Fluids: air with or without lubrication, mineral oils or grease
MATERIAL
Standard polyurethane 90 Sh A. Standard compound reference: B0
Alternative polyurethane 85 Sh A. Alternative compound reference: A0
ASSEMBLY
Eliminate any cutting edges and flash in the bore to permit assembly and prevent damage to seals during mounting.

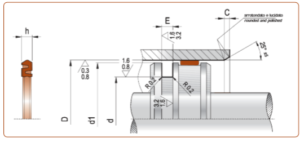

DRAWING SPS PISTON SEAL
ARTICLES SPS PISTON SEAL
| Dh11 | dh10 | toll h10 | d1 | h | E+0,2 | ART/ITEM | ||||
| 12,0 | 7,0 | 0/-0.058 | 11,5 | 2,2 | 2,5 | SPS | 0120 | 0070 | 022 | B0 |
| 16,0 | 9,0 | 0/-0.058 | 15,5 | 2,4 | 2,5 | SPS | 0160 | 0090 | 024 | B0 |
| 20,0 | 13,0 | 0/-0.070 | 19,5 | 2,4 | 2,5 | SPS | 0200 | 0130 | 024 | B0 |
| 25,0 | 18,0 | 0/-0.070 | 24,5 | 2,4 | 2,5 | SPS | 0250 | 0180 | 024 | B0 |
| 28,0 | 21,0 | 0/-0.084 | 27,5 | 2,4 | 2,5 | SPS | 0280 | 0210 | 024 | B0 |
| 30,0 | 21,0 | 0/-0.084 | 29,5 | 2,9 | 3,0 | SPS | 0300 | 0210 | 029 | B0 |
| 32,0 | 23,0 | 0/-0.084 | 31,5 | 2,9 | 3,0 | SPS | 0320 | 0230 | 029 | B0 |
| 35,0 | 26,0 | 0/-0.084 | 34,5 | 2,9 | 3,0 | SPS | 0350 | 0260 | 029 | B0 |
| 40,0 | 31,0 | 0/-0.100 | 39,5 | 2,9 | 3,0 | SPS | 0400 | 0310 | 029 | B0 |
| 45,0 | 36,0 | 0/-0.100 | 44,5 | 2,9 | 3,0 | SPS | 0450 | 0360 | 029 | B0 |
| 50,0 | 41,0 | 0/-0.100 | 49,5 | 2,9 | 3,0 | SPS | 0500 | 0410 | 029 | B0 |
| 60,0 | 48,0 | 0/-0.100 | 59,5 | 3,9 | 4,0 | SPS | 0600 | 0480 | 039 | B0 |
| 63,0 | 51,0 | 0/-0.120 | 62,5 | 3,9 | 4,0 | SPS | 0630 | 0510 | 039 | B0 |
| 70,0 | 58,0 | 0/-0.120 | 69,5 | 3,9 | 4,0 | SPS | 0700 | 0580 | 039 | B0 |
| 80,0 | 68,0 | 0/-0.120 | 79,5 | 3,9 | 4,0 | SPS | 0800 | 0680 | 039 | B0 |
