RSB2 ROD SEAL



DESCRIPTION

RSB2 rod seal CR version  with antiextrusion ring is also available. This seal is recommended when the coupling clearance between the head and the rod cannot be reduced and in the event of pressure peaks (500 bar).

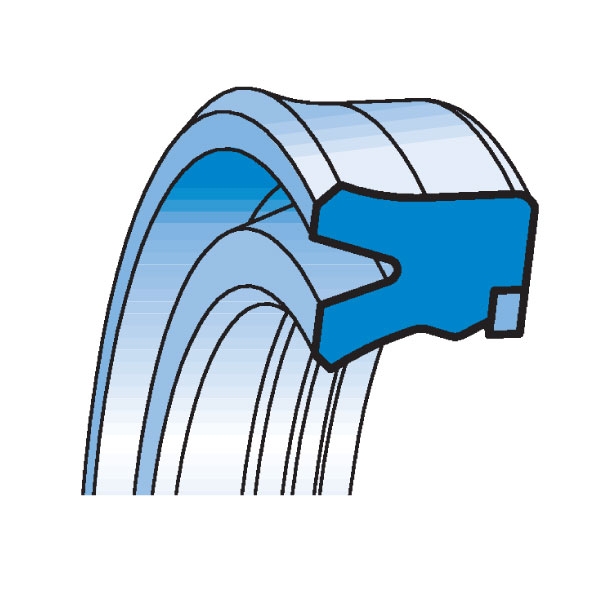

The RSB2 rod seal type is very similar to the RSA type, but on the dynamic side it has a multifunctional double lip which:

– mitigatesanystick

– slip effect thanks to a fluidring between the secondary lip and the main one;

– blocks  any external impurities ;

– counters the shrinking of the material at low temperatures;

– works as a stabilizer.



TECNICAL DATA

RSB2 Rod Seal

Pressure: < 400 bar at a temperature  of  60°C

Speed: < 0.5 m/s

Temperature: from – 35°C to + 100°C with peaks till 110°C

Fluids: mineral hydraulicfluids



MATERIAL

The proposed material for the RSB2 Rod Seal is a C0 -type polyurethane, with high elasticity modulus, low compression-set and high resistance to abrasion. The hardness is of 93 Sh A ± 2.

Compound reference: C0



ASSEMBLY

To prevent any damage to the seal, remove any flash and cutting edges in the housing and on the rod. The seal should always be lubricated before assembly to facilitate the insertion of the rod.

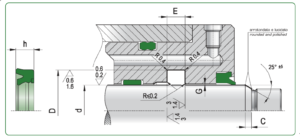

Drawing RSB Rod Seal

rsb2 rod seal artic seal



Articles

dh9 Dh10 h E+0,2 C ART  /  ITEM
40,0 55,0 10,0 11,0 5,5 RSB2 0400 0550 100 CR
42,0 51,0 10,0 11,0 4,5 RSB2 0420 0510 100 CR
45,0 60,0 10,0 11,0 5,5 RSB2 0450 0600 100 CR
50,0 59,0 10,0 11,0 4,5 RSB2 0500 0590 100 CR
50,0 60,0 7,3 8,0 5,0 RSB2 0500 0600 073 CR
50,0 65,0 10,0 11,0 5,5 RSB2 0500 0650 100 CR
50,0 70,0 12,0 13,0 6,0 RSB2 0500 0700 120 CR
56,0 71,0 11,5 12,5 5,5 RSB2 0560 0710 115 CR
60,0 69,0 10,0 11,0 4,5 RSB2 0600 0690 100 CR
60,0 75,0 11,5 12,5 5,5 RSB2 0600 0750 115 CR
60,0 80,0 12,0 13,0 6,0 RSB2 0600 0800 120 CR
63,0 78,0 11,5 12,5 5,5 RSB2 0630 0780 115 CR
63,0 83,0 12,0 13,0 6,0 RSB2 0630 0830 120 CR
65,0 80,0 11,5 12,5 5,5 RSB2 0650 0800 115 CR
70,0 80,0 7,3 8,0 5,0 RSB2 0700 0800 073 CR
70,0 85,0 11,5 12,5 5,5 RSB2 0700 0850 115 CR
75,0 95,0 13,5 14,5 6,0 RSB2 0750 0950 135 CR
80,0 95,0 11,5 12,5 5,5 RSB2 0800 0950 115 CR
80,0 100,0 13,5 14,5 7,0 RSB2 0800 1000 135 CR
85,0 105,0 12,0 13,0 7,0 RSB2 0850 1050 120 CR
85,0 105,0 13,5 14,5 7,0 RSB2 0850 1050 135 CR
90,0 105,0 11,5 12,5 6,0 RSB2 0900 1050 115 CR
95,0 115,0 13,5 14,5 7,0 RSB2 0950 1150 135 CR
100,0 120,0 12,0 13,0 7,0 RSB2 1000 1200 120 CR
100,0 120,0 13,5 14,5 7,0 RSB2 1000 1200 135 CR
105,0 125,0 12,0 13,0 7,0 RSB2 1050 1250 120 CR
110,0 130,0 12,0 13,0 7,0 RSB2 1100 1300 120 CR
120,0 140,0 12,0 13,0 7,0 RSB2 1200 1400 120 CR
125,0 145,0 12,0 13,0 7,0 RSB2 1250 1450 120 CR

* In accordance with norms ISO/DIN 5597 and ISO 5597/1
