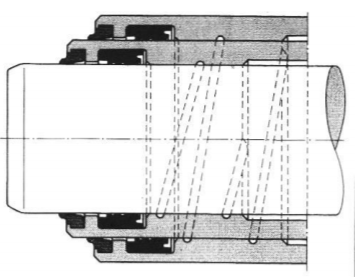

The Parker Prädifa PDF rod seal profile RB has been developed especially for multi-stage telescopic cylinders and stands out due to the narrow profile width. A backup ring on the inside diameter prevents the gap extrusion and extends the service life and helps reduce friction.

scope of application

Operating pressure = ≤ 250 bar
Operating temperature: 20 to + 1000 C
Sliding speed = ≤ 0.5 m / s

Installation instructions:
From an inside diameter of 30 mm
these Parker Praedifa PDF rod seals operate without problems in closed grooves
When installing make sure that the rings are not
be pulled over sharp edges. Because of the narrow profile width
it is necessary to precisely set the groove dimensions.

Compounds:
The standard compound of this seal is the
well-accepted special elastomer SFR © (NBR-based) with a Shore hardness of approx. 85 A. The most significant properties of these compounds are the very good anti-friction properties and the low wear. The back-up ring is made of polyacetal(POM).

For special requirements, please contact our consultancy service. See above the suitable materials and/or designs that are recommended.

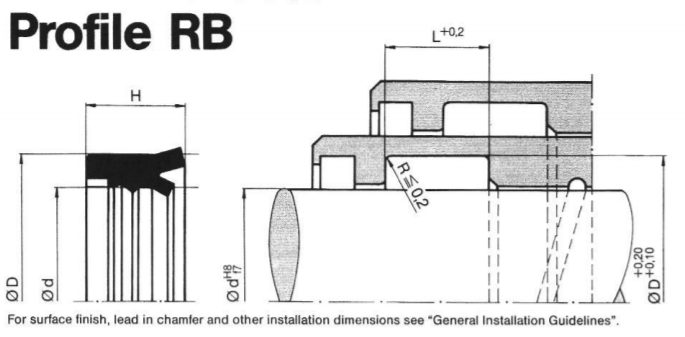

d D H L Item number
24 30 8 9 RB 0024 00653
25 31 8 9 RB 0025 00653
30 37 13 14 BB 0030 00653
32 38 9,5 10,5 RB 0031 00653
32 40 11,5 12,5 RB 0032 00653
42 52 13 14 RB 0042 00653
45 52 13 14 RB 0046 00653
45 53 11,5 12,5 RB 0045 00653
48 55 11,5 12,5 RB 0048 00653
50 58 11,5 12,5 RB 0050 00653
53 60 13 14 RB 0053 00653
55 63 11,5 12,5 RB 0055 00653
57 65 11,5 12,5 RB 0057 00653
60 68 11,5 12,5 RB 0060 00653
60 68 13 14 RB 0061 00653
60 70 13 14 RB 0066 00653
61 69 8,5 9,5 BB 0062 00653
63 71 11,5 12,5 BB 0063 00653
65 73 11,5 12,5 RB 0065 00653
70 78 11,5 12,5 RB 0070 00653
70 78 13 14 RB 0071 00653
75 83 11,5 12,5 RB 0075 00653
75 85 11,5 12,5 RB 0076 00653
76 84 8,5 9,5 RB 0069 00653
78 86 11,5 12,5 RB 0078 00653
78 86 13 14 RB 0079 00653
78 8B 13 14 RB 0074 00653
80 88 11,5 12,5 RB 0080 00653
80 88 13 14 RB 0082 00653
80 92 10 11 RB 0083 00653
85 93 11,5 12,5 RB 0085 00653
87 95 11,5 12,5 RB 0087 00653
90 98 13 14 RB 0090 00653
91 99 8,5 9,5 RB 0100 00653
92 100 11,5 12,5 RB 0092 00653
92 100 13 14 RB 0093 00653
95 ‘103 11,5 12,5 RB 0095 00653
97 105 11,5 12,5 BB 0097 00653
97 105 13 14 RB 0098 00653
97 107 13 14 RB 0094 00653
100 108 11,5 12,5 RB 0101 00653
105 113 11,5 12,5 RB 0105 00653
105 113 13 14 RB 0106 00653
110 118 13 14 RB 0010 00653
112 120 13 14 RB 01 12 00653
113 121 11,5 12,5 RB 01 13 00653
115 123 13 14 RB 0115 00653
115 125 13 14 RB 0116 00653
118 126 11,5 12,5 RB 01 18 00653
118 126 13 14 HB 01 19 006s3
124 132 11,5 12,5 RB 0123 00653
124,5 135 13,5 14,5 RB 0124 00653
125 133 11,5 12,5 RB 0125 00653
125 135 13,5 14,5 RB 0126 00653
128 136 11,5 12,5 RB 0128 00653
130 138 13 14 RB 0130 00653
132 140 13 14 RB 0133 00653
135 145 13,5 14,5 RB 0135 00653
140 148 13 14 RB 0140 00653
140 154 9,5 10,5 RB 0141 00653
143 151 11,5 12,5 RB 0143 00653
143 151 13 14 RB 0144 00653
145 153 11,5 12,5 RB 0146 00653
145 153 13 14 RB 0145 00653
152 160 11,5 12,5 RB 0152 00653
155 163 13 14 RB 0155 00653
160 168 13 14 BB 0160 00653
160 170 13 14 RB 0164 00653
165 173 13 14 RB 0165 00653
171 179 13 14 RB 0’17100653
172 180 11,5 12,5 RB 0172 00653
180 188 11,5 12,5 HB 0179 00653
180 188 13 14 RB 0180 00653
185 195 13 14 RB 0185 00653
200 208 13 14 RB 0200 00653
202 212 13 14 RB 0202 00653
205 213 11,5 12,5 RB 0205 00653
212 220 13 14 RB 0212 00653
240 252 13 14 RB 0240 00653
280 292 13 14 RB 0280 00653
