The Parker Prädifa Park-O-Pak @ Rod Seal, Type T, Profil TA is the further development of the grooved ring and combines the advantages of the highly elastic O-ring and the wear-resistant grooved ring mechanism. The special feature of this seal is the inserted O-Fling, this guarantees even at low
Press and with vacuum the, for the sealing function necessary, preload. This pre-tensioning force remains at a temperature included largely constant, and self with a certain amount of wear and tear. The necessary contact pressure is guaranteed, when the system pressure increases, this contact pressure by the pressure-dependent deformation of the O-ring is reinforced.
Scope of application:
Operating pressure: ≤ 400 bar
Operating temperature: – 35 to + 80 ºC briefly up to + 95 ºC
Sliding speed: = ≤ 1 m/s

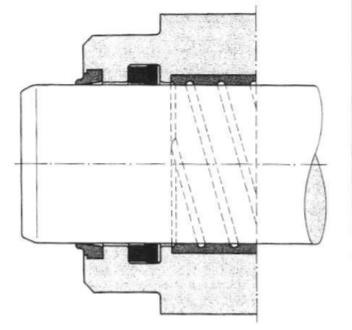

Mainly for the seal plungers, telescopic cylinders, and in the mobile hydraulics. We submit installation suggestions on request.

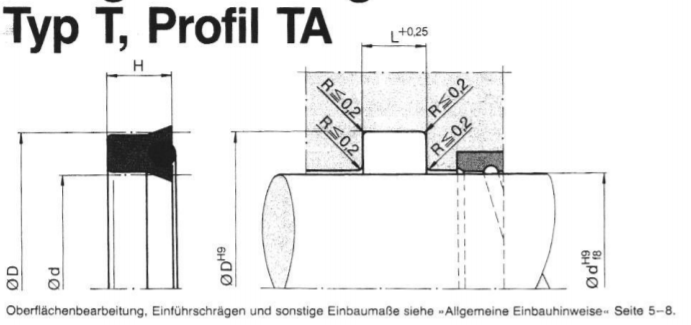

Installation instructions:
The Parker Praedifa seals should be in the axial direction
Have play (see columns H and L).
During installation, they must not be overlaid
edges were drawn so that the sealing edge is not damaged.
Usually, these seals can be snapped and become closed grooves. With extreme diameter ratios and profile widths, use assembly aid.
Materials:
MOLYTHANEo U 15, is a working quality of approx. 93 Shore and based on polyurethane
with a proportion of MoS2, results in excellent dry running properties, exceptionally high abrasion and resistance to wear – compared to other materials – increased service life. Under special operating conditions (pressure, temperature, speed, etc.) please contact our Application Technology Department.
Order example:
Park-O-Pak @ rod seal, type T,
Profile TA, for a bar diameter
of 40 mm.
Order number; TA 030 4024 –
40x50x7.5 TA: profile designation
030 = set key 4024 = dimension key
dxDxH = nominal dimensions
| d | D | H | L | Item number | d | D | H | L | Item number | |
| 6 | 14 | 5,7 | 6,3 | TA 030 0052 | 70 | 85 | 11,4 | 12,5 | TA 030 7028 | |
| 8 | 16 | 5,7 | 6,3 | TA 030 0073 | 75 | 85 | 11,4 | 12,5 | TA 030 7124 | |
| 10 | 20 | 6 | 6,5 | TA 030 1005 | 80 | 90 | 11 ,4 | 12,5 | TA 030 8014 | |
| 15 | 25 | 7,3 | 8 | TA 030 1089 | 80 | 95 | 11,4 | 12,5 | TA 030 8034 | |
| 17 | 25 | 5,7 | 6,3 | TA 030 1 129 | 80 | 100 | 14.5 | 16 | TA 030 8057 | |
| 18 | 28 | 7,5 | 8 | TA 030 1 163 | 85 | 95 | 11,4 | 12,5 | TA 030 8157 | |
| 19,1 | 25,4 | 6,4 | 7 | TA 030 1 186 | 85 | 100 | 11,4 | 12,5 | TA 030 8164 | |
| 20 | 28 | 5,7 | 6,3 | TA 030 2009 | 88,9 | 101,6 | 11,4 | 10,5 | TA 030 8233 | |
| 20 | 30 | 7,5 | 8 | TA 030 2025 | 90 | 110 | 14,6 | 16 | TA 030 9082 | |
| 22 | 30 | 5,7 | 6,3 | TA 030 2076 | 90 | 110 | 15 | 16,5 | TA 030 9088 | |
| 22 | 32 | 7,3 | 8 | TA 030 2087 | 95 | 110 | 11,4 | 12,5 | TA 030 9178 | |
| 22,2 | 28,6 | 6,4 | 7 | TA 030 2096 | 95,3 | 120.7 | 17,5 | 19 | TA 030 9290 | |
| 24 | 34 | 7,3 | 8 | TA 030 2158 | 100 | 115 | 12 | 13 | TA 030 A058 | |
| 25 | 35 | 6 | 6,5 | TA 030 2177 | 100 | 124 | 14,6 | 16 | TA 030 4105 | |
| 25 | 35 | 7,3 | 8 | TA 030 2186 | 100 | 125 | 18,2 | 20 | TA 030 4122 | |
| 25 | 40 | 12 | 13 | TA 030 2201 | 101,6 | 120,7 | 15,9 | 17,5 | TA 030 A216 | |
| 26 | 38 | 8 | 9 | TA 030 2239 | 101,6 | 127 | 19,1 | 21 | TA 030 A239 | |
| 30 | 40 | 7,3 | 8 | TA 030 3014 | 105 | 120 | 15 | 16,5 | TA 030 A296 | |
| 31,8 | 38,1 | 6,4 | 7 | TA 030 3062 | 105 | 125 | 14,5 | 16 | TA 030 A320 | |
| 31,8 | 47,6 | 12,7 | 14 | TA 030 3082 | 111,1 | 120,7 | 9,5 | 10,5 | TA 030 B113 | |
| 32 | 42 | 7,3 | 8 | TA 030 3105 | 111,1 | 127 | 12,7 | 14 | TA 030 8135 | |
| 34,9 | 44,5 | 7,9 | 9 | TA 030 3’153 | 111,1 | 127 | 14,3 | 16 | TA 030 8156 | |
| 35 | 50 | 11 ,4 | 12,5 | TA 030 3183 | 115 | 140 | 15 | 16,5 | TA 030 8360 | |
| 38,1 | 50,8 | 9,5 | 10,5 | TA 030 3280 | 120 | 140 | 14,5 | 16 | TA 030 C034 | |
| 40 | 50 | 7,5 | 8 | TA 030 4024 | 125 | 140 | 11,4 | 12,5 | TA 030 C197 | |
| 45 | 55 | 7,5 | 8 | TA 030 4170 | 130 | 145 | 14,5 | 16 | TA 030 D034 | |
| 48 | 63 | 9 | 10 | TA 030 4266 | 139,7 | 165,1 | 19,1 | 21 | TA 030 D297 | |
| 48 | 63 | 11,4 | 12,5 | TA 030 4273 | 140 | 160 | 14,5 | 16 | TA 030 E053 | |
| 49,2 | 65 | 10 | 11 | TA 030 4287 | 146,1 | 165,1 | 15,9 | 17,5 | TAO30 8222 | |
| 50 | 70 | 16 | 17,5 | TA 030 5064 | 165,1 | 177,8 | 14,3 | 16 | TA 030 G178 | |
| 53 | 63 | 7,3 | 8 | TA 030 5127 | 171,4 | 203,2 | 25,4 | 27 | TA 030 H078 | |
| 54 | 69,9 | 12,7 | 14 | TA 030 5158 | 175 | 200 | 18,2 | 20 | TA 030 H197 | |
| 56 | 71 | 10 | 11 | TA 030 5185 | 190,5 | 222,3 | 19,1 | 21 | TA 030 K091 | |
| 56 | 76 | 14,6 | 16 | TA 030 5204 | 193,7 | 209.6 | 12,7 | 14 | TA 030 K198 | |
| 57,2 | 66,7 | 9,5 | 10,5 | TA 030 5213 | 220 | 240 | 14,5 | 16 | TA 030 M017 | |
| 57,2 | 76,2 | 15,9 | 17,5 | TA 030 5231 | 222,3 | 254 | 25,4 | 27 | TA 030 M110 | |
| 58 | 75 | 13 | 14 | TA 030 5253 | 235 | 254 | 15,9 | 17,5 | TA 030 M290 | |
| 60 | 70 | 12 | 13 | TA 030 6019 | 240 | 260 | 14,5 | 16 | TA 030 N018 | |
| 60 | 75 | 11,4 | 12,5 | TA 030 6055 | 245 | 265 | 15,9 | 17,5 | TA 030 N050 | |
| 60 | 80 | 11,5 | 12,5 | TA 030 6068 | 266,7 | 279,4 | 12,7 | 14 | TA 030 0140 | |
| 60 | 80 | 14,5 | 16 | TA 030 6080 | 290 | 320 | 22,7 | 25 | TA 030 P198 | |
| 63,5 | 73 | 9,5 | 10,5 | TA 030 6159 | 368,3 | 381 | 9,5 | 10,5 | TA 030 0425 | |
| 63,5 | 79,4 | 12,7 | 14 | TA 030 6171 | 406,4 | 431,8 | 19,1 | 21 | TA 030 R034 | |
| 65 | 80 | 11 ,4 | 12,5 | TA 030 6225 | 442,6 | 533,4 | 27 | 30 | TA 030 8392 | |
| 70 | 80 | 11,4 | 12,5 | TA 030 7006 | 558,8 | 596,9 | 31,8 | 35 | TA 030 S170 |
