WSL WIPER
DESCRIPTION

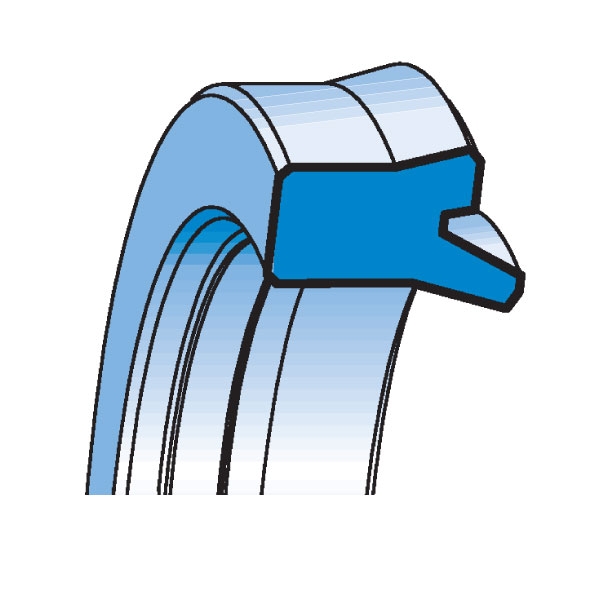

The WSL wiper has a highly flexible wiping lip on the dynamic side and a strong, shorter, protruding lip on the static side. This special profile keeps any impurity, waste or water off the rod and the static side where it is housed. Impurities would damage the seal and corrode the inner part of the cylinder.
TECHNICAL DATA
Speed: <1m/s
Temperature: from -35°C to +100°C with peaks till +110°C
Fluids: water at room temperature, mineral oils
MATERIAL
The material used is a polyurethane with a high modulus of elasticity and with resistance to atmospheric factors and abrasion. The hardness of the standard material is of 93 Sh A ± 2 . In alternative it is possible to use harder polyurethane for highly polluted environments. In this case please contact our technical office. Compound reference: C0
ASSEMBLY
It is not very problematic as it is done in semi-open groove in one extremely of the cylinder. It is recommended to remove any cutting edges and flash not to scratch the wiper during the installation.

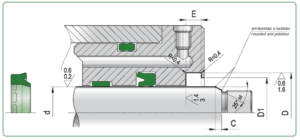

DRAWING WSL WIPER
ARTICLES WSL WIPER
| dh9 | Dh10 | E+0,2 | D1 0/+0,2 | ART / ITEM |
| 5,0 | 12,0 | 2,8 | 8,0 | WSL | 0050 | 0120 | 028 | CO | |
| 6,0 | 12,0 | 3,0 | 9,0 | WSL | 0060 | 0120 | 030 | CO | |
| 8,0 | 14,6 | 3,8 | 11,0 | WSL | 0080 | 0146 | 038 | C0 | |
| 10,0 | 15,0 | 1,0 | 13,0 | WSL | 0100 | 0150 | 010 | CO | |
| 10,0 | 16,6 | 3,8 | 13,0 | WSL | 0100 | 0166 | 038 | C0 | |
| 12,0 | 18,6 | 3,8 | 15,0 | WSL | 0120 | 0186 | 038 | C0 | |
| 13,0 | 19,6 | 3,8 | 16,0 | WSL | 0130 | 0196 | 038 | C0 | |
| 14,0 | 20,6 | 3,8 | 17,0 | WSL | 0140 | 0206 | 038 | C0 | |
| 15,0 | 21,6 | 3,8 | 18,0 | WSL | 0150 | 0216 | 038 | C0 | |
| 16,0 | 22,6 | 3,8 | 19,0 | WSL | 0160 | 0226 | 038 | C0 | |
| 18,0 | 24,6 | 3,8 | 21,0 | WSL | 0180 | 0246 | 038 | C0 | |
| 20,0 | 28,6 | 5,3 | 23,0 | WSL | 0200 | 0286 | 053 | C0 | |
| 22,0 | 30,6 | 5,3 | 25,0 | WSL | 0220 | 0306 | 053 | C0 | |
| 24,0 | 32,6 | 5,3 | 27,0 | WSL | 0240 | 0326 | 053 | C0 | |
| 25,0 | 33,6 | 5,3 | 28,0 | WSL | 0250 | 0336 | 053 | C0 | |
| 28,0 | 36,6 | 5,3 | 31,0 | WSL | 0280 | 0366 | 053 | C0 | |
| 30,0 | 38,0 | 5,3 | 33,0 | WSL | 0300 | 0380 | 053 | C0 | |
| 30,0 | 38,6 | 5,3 | 33,0 | WSL | 0300 | 0386 | 053 | C0 | |
| 32,0 | 40,6 | 5,3 | 35,0 | WSL | 0320 | 0406 | 053 | C0 | |
| 35,0 | 43,6 | 5,3 | 38,0 | WSL | 0350 | 0436 | 053 | C0 | |
| 36,0 | 44,6 | 5,3 | 39,0 | WSL | 0360 | 0446 | 053 | C0 | |
| 38,0 | 46,6 | 5,3 | 41,0 | WSL | 0380 | 0466 | 053 | C0 | |
| 40,0 | 48,6 | 5,3 | 43,0 | WSL | 0400 | 0486 | 053 | C0 | |
| 45,0 | 53,6 | 5,3 | 48,0 | WSL | 0450 | 0536 | 053 | C0 | |
| 46,0 | 54,6 | 5,3 | 49,0 | WSL | 0460 | 0546 | 053 | C0 | |
| 50,0 | 58,0 | 5,3 | 53,0 | WSL | 0500 | 0580 | 053 | C0 | |
| 50,0 | 58,6 | 5,3 | 53,0 | WSL | 0500 | 0586 | 053 | C0 | |
| 55,0 | 63,6 | 5,3 | 58,0 | WSL | 0550 | 0636 | 053 | C0 | |
| 55,0 | 65,6 | 5,3 | 58,0 | WSL | 0550 | 0656 | 053 | CO | |
| 56,0 | 64,6 | 5,3 | 59,0 | WSL | 0560 | 0646 | 053 | C0 | |
| 60,0 | 68,0 | 5,3 | 63,0 | WSL | 0600 | 0680 | 053 | C0 | |
| 60,0 | 68,6 | 5,3 | 63,0 | WSL | 0600 | 0686 | 053 | C0 | |
| 60,0 | 70,0 | 5,0 | 63,0 | WSL | 0600 | 0700 | 050 | C0 | |
| 61,0 | 69,6 | 5,3 | 64,0 | WSL | 0610 | 0696 | 053 | C0 | |
| 63,0 | 71,6 | 5,3 | 66,0 | WSL | 0630 | 0716 | 053 | C0 | |
| 65,0 | 73,6 | 5,3 | 68,0 | WSL | 0650 | 0736 | 053 | C0 | |
| 70,0 | 78,6 | 5,3 | 73,0 | WSL | 0700 | 0786 | 053 | C0 | |
| 70,0 | 80,0 | 5,0 | 73,0 | WSL | 0700 | 0800 | 050 | C0 | |
| 70,0 | 82,2 | 7,1 | 76,0 | WSL | 0700 | 0822 | 071 | CO | |
| 70,0 |
|
7,1 | 76,0 | WSL | 0700 | 0826 | 071 | CO | |
| 75,0 | 83,6 | 5,3 | 78,0 | WSL | 0750 | 0836 | 053 | C0 | |
| 75,0 | 87,2 | 7,1 | 81,0 | WSL | 0750 | 0872 | 071 | C0 | |
| 76,0 | 84,6 | 5,3 | 79,0 | WSL | 0760 | 0846 | 053 | C0 | |
| 80,0 | 88,6 | 5,3 | 83,0 | WSL | 0800 | 0886 | 053 | C0 | |
| 80,0 | 90,2 | 7,1 | 83,0 | WSL | 0800 | 0902 | 071 | CO | |
| 80,0 | 92,6 | 7,1 | 83,0 | WSL | 0800 | 0926 | 071 | CO | |
| 85,0 | 93,6 | 5,3 | 88,0 | WSL | 0850 | 0936 | 053 | C0 | |
| 85,0 | 97,2 | 7,1 | 91,0 | WSL | 0850 | 0972 | 071 | C0 | |
| 90,0 | 102,2 | 7,1 | 96,0 | WSL | 0900 | 1022 | 071 | C0 | |
| 91,0 | 99,6 | 5,3 | 94,0 | WSL | 0910 | 0996 | 053 | C0 | |
| 95,0 | 107,2 | 7,1 | 101,0 | WSL | 0950 | 1072 | 071 | C0 | |
| 100,0 | 108,6 | 5,3 | 103,0 | WSL | 1000 | 1086 | 053 | CO | |
| 100,0 | 112,2 | 7,1 | 106,0 | WSL | 1000 | 1122 | 071 | C0 | |
| 105,0 | 113,6 | 5,3 | 108,0 | WSL | 1050 | 1136 | 053 | CO | |
| 105,0 | 117,2 | 7,1 | 111,0 | WSL | 1050 | 1172 | 071 | C0 | |
| 107,0 | 115,6 | 5,3 | 110,0 | WSL | 1070 | 1156 | 053 | C0 | |
| 110,0 | 118,6 | 5,3 | 113,0 | WSL | 1100 | 1186 | 053 | CO | |
| 110,0 | 122,2 | 7,1 | 116,0 | WSL | 1100 | 1222 | 071 | C0 | |
| 115,0 | 127,2 | 7,1 | 121,0 | WSL | 1150 | 1272 | 071 | C0 | |
| 120,0 | 132,2 | 7,1 | 126,0 | WSL | 1200 | 1322 | 071 | C0 | |
| 125,0 | 137,2 | 7,1 | 131,0 | WSL | 1250 | 1372 | 071 | C0 | |
| 126,0 | 134,6 | 5,3 | 129,0 | WSL | 1260 | 1346 | 053 | C0 | |
| 130,0 | 142,2 | 7,1 | 136,0 | WSL | 1300 | 1422 | 071 | C0 | |
| 135,0 | 147,2 | 7,1 | 141,0 | WSL | 1350 | 1472 | 071 | C0 | |
| 140,0 | 152,2 | 7,1 | 146,0 | WSL | 1400 | 1522 | 071 | C0 | |
| 140,0 | 155,0 | 9,0 | 146,5 | WSL | 1400 | 1550 | 090 | C0 | |
| 145,0 | 157,2 | 7,1 | 151,0 | WSL | 1450 | 1572 | 071 | C0 | |
| 150,0 | 162,2 | 7,1 | 156,0 | WSL | 1500 | 1622 | 071 | C0 | |
| 160,0 | 172,2 | 7,1 | 166,0 | WSL | 1600 | 1722 | 071 | CO | |
| 160,0 | 175,2 | 10,1 | 168,0 | WSL | 1600 | 1752 | 101 | C0 | |
| 170,0 | 185,2 | 10,1 | 178,0 | WSL | 1700 | 1852 | 101 | C0 | |
| 180,0 | 195,2 | 10,1 | 188,0 | WSL | 1800 | 1952 | 101 | C0 | |
| 180,0 | 200,2 | 10,2 | 183,0 | WSL | 1800 | 2002 | 102 | CO | |
| 190,0 | 205,2 | 10,1 | 198,0 | WSL | 1900 | 2052 | 101 | C0 | |
| 200,0 | 215,2 | 10,1 | 208,0 | WSL | 2000 | 2152 | 101 | C0 | |
| 210,0 | 225,2 | 10,1 | 218,0 | WSL | 2100 | 2252 | 101 | C0 | |
| 220,0 | 235,2 | 10,1 | 228,0 | WSL | 2200 | 2352 | 101 | C0 | |
| 230,0 | 245,2 | 10,1 | 238,0 | WSL | 2300 | 2452 | 101 | C0 | |
| 240,0 | 255,2 | 10,1 | 248,0 | WSL | 2400 | 2552 | 101 | C0 | |
| 250,0 | 265,2 | 10,1 | 258,0 | WSL | 2500 | 2652 | 101 | C0 |
