WAT WIPER
DESCRIPTION

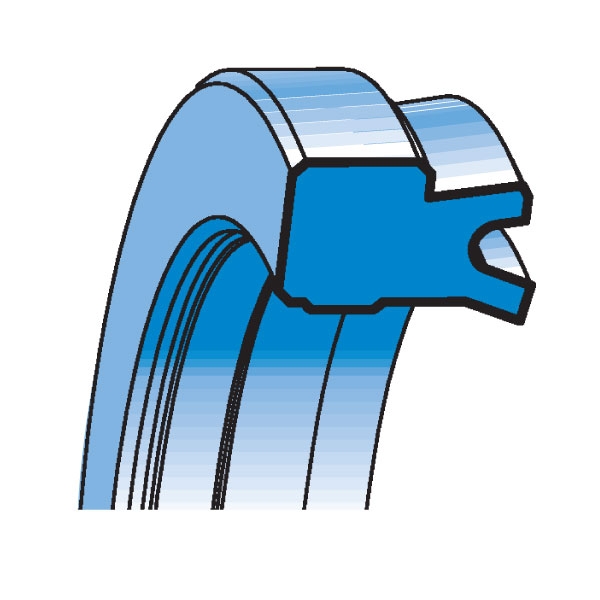

The WAT wiper, thanks to its special profile and design, can self-align in case of rod misalignment during operations. It has two lips which make it look like a seal: the wiping lip is longer, very flexible and dynamic; the static lip is shorter and avoids, by resting on the blocking step, any impurity to come in from the outside.
TECHNICAL DATA
Wat Wiper
Speed: <1 m/s
Temperature: from -35°C to +100°C with peaks till +110°C
Fluids: water at room temperature mineral oils
MATERIAL
The material used is a polyurethane with a high modulus of elasticity and with resistance to atmospheric factors and abrasion. The hardness of the standard material is of 93 Sh A ± 2 . In alternative it is possible to use harder polyurethane for highly polluted environments. In this case please contact our technical office. Compound reference: C0
ASSEMBLY
The assembly is extremely easy thanks to the semi-open groove. Eliminate any cutting edges and flash in the housing.

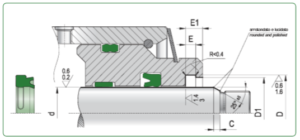

DRAWING WAT WIPER
ARTICLES WAT WIPER
| dh9 | Dh10 | D1 H11 | E1+0.2 | E +0.2 | ARTÂ /Â ITEM | ||||
| 16,0 | 24,0 | 21,5 | 5,0 | 7,0 | WAT | 0160 | 0240 | 050 | C0 |
| 18,0 | 26,0 | 23,5 | 5,0 | 7,0 | WAT | 0180 | 0260 | 050 | C0 |
| 20,0 | 28,0 | 25,5 | 5,0 | 7,0 | WAT | 0200 | 0280 | 050 | C0 |
| 22,0 | 30,0 | 27,5 | 5,0 | 7,0 | WAT | 0220 | 0300 | 050 | C0 |
| 25,0 | 33,0 | 30,5 | 5,0 | 7,0 | WAT | 0250 | 0330 | 050 | C0 |
| 28,0 | 36,0 | 33,5 | 5,0 | 7,0 | WAT | 0280 | 0360 | 050 | C0 |
| 32,0 | 40,0 | 37,5 | 5,0 | 7,0 | WAT | 0320 | 0400 | 050 | C0 |
| 36,0 | 44,0 | 41,5 | 5,0 | 7,0 | WAT | 0360 | 0440 | 050 | C0 |
| 40,0 | 48,0 | 45,5 | 5,0 | 7,0 | WAT | 0400 | 0480 | 050 | C0 |
| 45,0 | 53,0 | 50,5 | 5,0 | 7,0 | WAT | 0450 | 0530 | 050 | C0 |
| 50,0 | 58,0 | 55,5 | 5,0 | 7,0 | WAT | 0500 | 0580 | 050 | C0 |
| 56,0 | 66,0 | 63,0 | 6,3 | 8,3 | WAT | 0560 | 0660 | 063 | C0 |
| 60,0 | 68,0 | 65,5 | 5,0 | 7,0 | WAT | 0600 | 0680 | 050 | CO |
| 63,0 | 73,0 | 70,0 | 6,3 | 8,3 | WAT | 0630 | 0730 | 063 | C0 |
| 70,0 | 80,0 | 77,0 | 6,3 | 8,3 | WAT | 0700 | 0800 | 063 | C0 |
| 80,0 | 90,0 | 87,0 | 6,3 | 8,3 | WAT | 0800 | 0900 | 063 | C0 |
| 90,0 | 100,0 | 97,0 | 6,3 | 8,3 | WAT | 0900 | 1000 | 063 | C0 |
| 100,0 | 115,0 | 110,0 | 9,5 | 12,0 | WAT | 1000 | 1150 | 095 | C0 |
| 110,0 | 122,0 | 119,0 | 5,5 | 7,0 | WAT | 1100 | 1220 | 055 | CO |
| 110,0 | 125,0 | 120,0 | 9,5 | 12,0 | WAT | 1100 | 1250 | 095 | CO |
| 115,0 | 127,0 | 124,0 | 5,5 | 7,0 | WAT | 1150 | 1270 | 055 | CO |
| 120,0 | 132,0 | 129,0 | 5,5 | 7,0 | WAT | 1200 | 1320 | 055 | CO |
| 125,0 | 137,0 | 134,0 | 5,5 | 7,0 | WAT | 1250 | 1370 | 055 | CO |
| 125,0 | 140,0 | 135,0 | 9,5 | 12,0 | WAT | 1250 | 1400 | 095 | CO |
