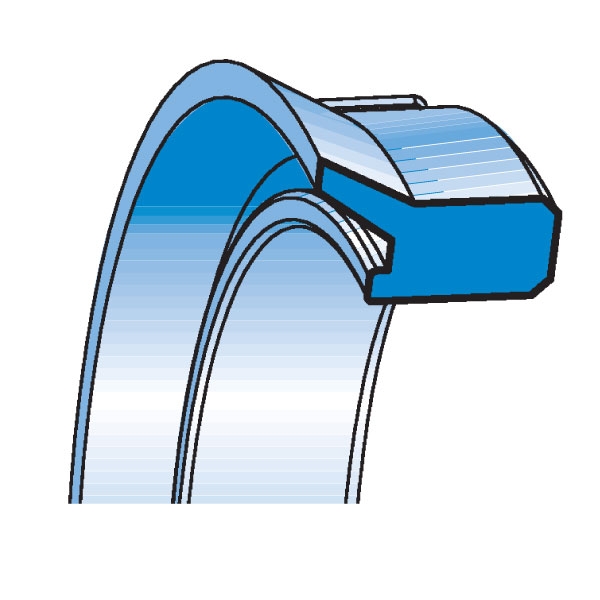

WEL WIPER
DESCRIPTION
The WEL Wiper type is commonly used in simple effect cylinders which are open on one side. To prevent wear to the bore from atmospheric factors, condensation or any other environmental conditions, a reversed profile wiper is used because of its cleansing properties.
TECHNICAL DATA
WEL Wiper
Pressure: no pressure, but a slight cavitation might occur.
Speed: <1 m/s
Temperature: from -35°C to +100°C, with peaks till +110°C
Fluids: water, dust or other atmospheric factors
MATERIAL
The used material is a C0- type polyurethane with high elasticity modulus, low compression-set, high wear resistance at 93 Sh A. Compound reference: C0
ASSEMBLY
The assembly is done by overlap in semi-open groove with a chamfer preventing the wiper extrusion during the cycle inversion. It is important to remove any flash or cutting edges to avoid any damage.

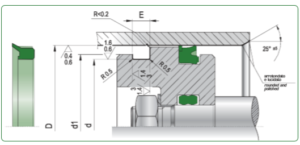

DRAWING WEL WIPER
ARTICLES WEL WIPER
| Dh9 | dh9 | E+0,2 | d1 | ART / ITEM | ||||
| 40,0 | 31,4 | 5,3 | 37,0 | WEL | 0400 | 0314 | 053 | C0 |
| 45,0 | 36,4 | 5,3 | 42,0 | WEL | 0450 | 0364 | 053 | C0 |
| 50,0 | 41,4 | 5,3 | 47,0 | WEL | 0500 | 0414 | 053 | C0 |
| 60,0 | 51,4 | 5,3 | 57,0 | WEL | 0600 | 0514 | 053 | C0 |
| 63,0 | 54,4 | 5,3 | 60,0 | WEL | 0630 | 0544 | 053 | C0 |
| 70,0 | 61,4 | 5,3 | 67,0 | WEL | 0700 | 0614 | 053 | C0 |
| 75,0 | 66,4 | 5,3 | 72,0 | WEL | 0750 | 0664 | 053 | C0 |
| 80,0 | 71,4 | 5,3 | 77,0 | WEL | 0800 | 0714 | 053 | C0 |
| 90,0 | 81,4 | 5,3 | 87,0 | WEL | 0900 | 0814 | 053 | C0 |
| 95,0 | 86,4 | 5,3 | 92,0 | WEL | 0950 | 0864 | 053 | C0 |
| 100,0 | 91,4 | 5,3 | 97,0 | WEL | 1000 | 0914 | 053 | C0 |
| 110,0 | 101,4 | 5,3 | 107,0 | WEL | 1100 | 1014 | 053 | C0 |
| 120,0 | 111,4 | 5,3 | 117,0 | WEL | 1200 | 1114 | 053 | C0 |
| 140,0 | 131,4 | 5,3 | 137,0 | WEL | 1400 | 1314 | 053 | C0 |
