WED WIPER



DESCRIPTION

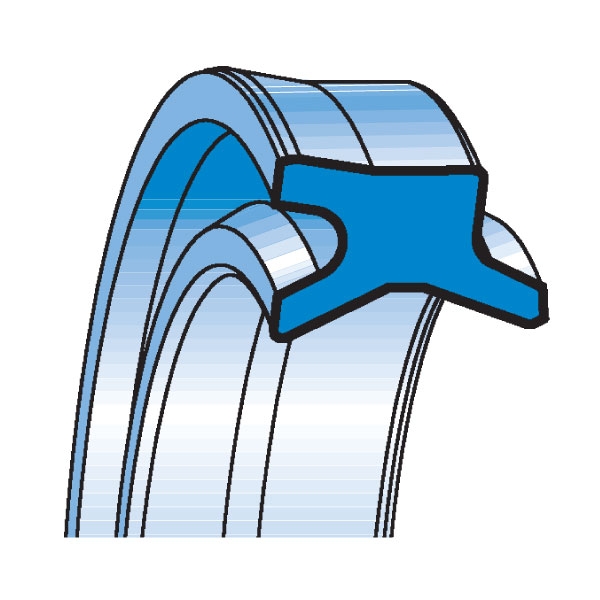

The WED Wiper (bidirectional scraper) has a combined scraper profile where the seal is provided with a scraping lip on the outer side and a sealing lip on the inner side. Dimensions op the WED Wiper are interchangeable with normal scraper housings. The scraping lip is very flexible and it adapts to misalignments of the rod. The sealing side has a stronger and longer lip to ensure the sealing capacity and to help the oil film which forms on the rod to go back into the cylinder.



TECHNICAL DATA

WED Wiper

Pressure: <20 bar

Speed: 1 m/s

Temperature: from -35°C to +100°C with peaks till +110°C

Fluids: water at room temperature and mineral oils

MATERIAL

The material for the WED Wiper used is a polyurethane with a high modulus of elasticity and with resistance to atmospheric factors and abrasion. The hardness of the standard material is of 93 Sh A. In alternative it is possible to use harder polyurethane for highly polluted environments. In this case please contact our technical office. Compound reference: C0



ASSEMBLY

The assembly is done in semi-open groove and is extremely easy. Remove any flash or cutting edges in the housing not to damage the seal.





DRAWING WED WIPER

wed wiper artic seals



ARTICLES WED WIPER

dh9 Dh10 E+0,2 D1 0/+0,2 C ART  /  ITEM
6,0 14,0 5,8 6,3 4,5 RSC 0060 0140 058 C0
8,0 14,0 5,8 6,3 4,0 RSC 0080 0140 058 C0
8,0 16,0 5,8 6,3 4,5 RSC 0080 0160 058 C0
10,0 18,0 5,8 6,3 4,5 RSC 0100 0180 058 C0
12,0 18,0 4,5 5,0 4,0 RSC 0120 0180 045 C0
12,0 20,0 5,8 6,3 4,5 RSC 0120 0200 058 CO
14,0 21,0 5,0 5,5 4,0 RSC 0140 0210 050 CO
14,0 22,0 5,8 6,3 4,5 RSC 0140 0220 058 CO
16,0 22,0 4,0 4,5 3,5 RSC 0160 0220 040 CO
16,0 24,0 5,8 6,3 4,5 RSC 0160 0240 058 C0
16,0 24,0 6,0 7,0 4,5 RSC 0160 0240 060 C0
18,0 22,0 4,0 4,5 3,0 RSC 0180 0220 040 CO
18,0 26,0 5,8 6,3 4,5 RSC 0180 0260 040 CO
20,0 25,0 4,0 4,5 4,0 RSC 0200 0250 040 CO
20,0 26,0 5,0 5,5 4,0 RSC 0200 0260 050 C0
* 20,0 28,0 5,8 6,3 4,5 RSC 0200 0280 058 C0
* 20,0 30,0 7,0 8,0 5,0 RSC 0200 0300 070 C0
22,0 28,0 4,5 5,0 4,0 RSC 0220 0280 045 C0
22,0 28,0 5,8 6,3 3,5 RSC 0220 0280 058 CO
22,0 29,0 5,0 5,5 4,0 RSC 0220 0290 050 CO
* 22,0 30,0 5,8 6,3 4,5 RSC 0220 0300 058 C0
22,0 30,0 7,0 8,0 4,5 RSC 0220 0300 070 C0
22,0 32,0 7,0 8,0 5,0 RSC 0220 0320 070 C0
24,0 32,0 5,7 6,3 4,5 RSC 0240 0320 057 CO
24,0 34,0 5,7 6,3 4,5 RSC 0240 0340 057 CO
25,0 31,0 5,0 5,5 3,5 RSC 0250 0310 050 CO
* 25,0 33,0 5,8 6,3 4,5 RSC 0250 0330 058 C0
25,0 33,0 8,0 9,0 4,5 RSC 0250 0330 080 CO
25,0 35,0 5,0 5,5 5,0 RSC 0250 0350 050 CO
25,0 35,0 7,0 8,0 5,0 RSC 0250 0350 070 C0
* 28,0 36,0 5,8 6,3 4,5 RSC 0280 0360 058 C0
28,0 38,0 5,8 6,3 5,0 RSC 0280 0380 058 C0
28,0 38,0 7,0 8,0 5,0 RSC 0280 0380 070 C0
30,0 38,0 5,8 6,3 4,5 RSC 0300 0380 058 C0
30,0 38,0 6,0 7,0 4,5 RSC 0300 0380 060 C0
30,0 38,0 7,0 8,0 4,5 RSC 0300 0380 070 CO
30,0 38,0 8,0 9,0 4,5 RSC 0300 0380 080 C0
30,0 40,0 7,0 8,0 5,0 RSC 0300 0400 070 C0
30,0 40,0 10,0 11,0 5,0 RSC 0300 0400 100 C0
32,0 40,0 6,0 7,0 4,5 RSC 0320 0400 060 C0
32,0 40,0 8,0 9,0 4,5 RSC 0320 0400 080 C0
* 32,0 42,0 7,0 8,0 5,0 RSC 0320 0420 070 C0
32,0 42,0 8,0 9,0 5,0 RSC 0320 0420 080 C0
32,0 42,0 9,0 10,0 5,0 RSC 0320 0420 090 CO
35,0 43,0 5,8 6,3 4,5 RSC 0350 0430 058 C0
35,0 43,0 6,0 7,0 4,5 RSC 0350 0430 060 C0
35,0 43,0 6,3 7,0 4,5 RSC 0350 0430 063 CO
35,0 43,0 7,0 8,0 4,5 RSC 0350 0430 070 CO
35,0 43,0 8,0 9,0 4,5 RSC 0350 0430 080 C0
35,0 45,0 7,0 8,0 5,0 RSC 0350 0450 070 C0
35,0 45,0 10,0 11,0 5,0 RSC 0350 0430 070 CO
35,0 45,0 10,0 11,0 5,0 RSC 0350 0450 100 C0
35,0 45,0 11,0 12,0 5,0 RSC 0350 0450 120 CO
* 36,0 44,0 5,8 6,3 4,5 RSC 0360 0440 058 C0
36,0 44,0 6,0 7,0 4,5 RSC 0360 0440 060 C0
36,0 44,0 6,3 7,0 4,5 RSC 0360 0440 063 CO
36,0 44,0 7,0 8,0 4,5 RSC 0360 0440 070 CO
36,0 44,0 8,0 9,0 4,5 RSC 0360 0440 080 C0
36,0 44,0 9,0 10,0 4,5 RSC 0360 0440 090 CO
36,0 46,0 7,0 8,0 5,0 RSC 0360 0460 070 C0
36,0 46,0 7,2 8,0 4,5 RSC 0360 0440 072 CO
36,0 46,0 10,0 11,0 5,0 RSC 0360 0460 100 C0
36,0 46,0 11,0 12,0 5,0 RSC 0360 0460 110 CO
38,0 45,0 6,0 7,0 4,5 RSC 0380 0450 060 C0
40,0 48,0 5,8 6,3 4,5 RSC 0400 0480 058 C0
40,0 48,0 6,0 7,0 4,5 RSC 0400 0480 060 C0
40,0 48,0 7,0 8,0 4,5 RSC 0400 0480 070 CO
40,0 48,0 8,0 9,0 4,5 RSC 0400 0480 080 C0
40,0 50,0 6,0 7,0 5,0 RSC 0400 0500 060 CO
* 40,0 50,0 7,0 8,0 5,0 RSC 0400 0500 070 C0
40,0 50,0 10,0 11,0 5,0 RSC 0400 0500 100 C0
42,0 50,0 6,0 7,0 4,5 RSC 0420 0500 060 C0
42,0 50,0 7,0 8,0 4,5 RSC 0420 0500 070 CO
* 45,0 53,0 5,8 6,3 4,5 RSC 0450 0530 058 C0
45,0 53,0 6,0 7,0 4,5 RSC 0450 0530 060 C0
45,0 53,0 6,3 7,0 4,5 RSC 0450 0530 063 CO
45,0 53,0 7,0 8,0 4,5 RSC 0450 0530 070 CO
45,0 53,0 8,0 9,0 4,5 RSC 0450 0530 080 C0
* 45,0 55,0 5,8 6,3 5,0 RSC 0450 0550 058 C0
45,0 55,0 6,3 7,0 5,0 RSC 0450 0550 063 CO
* 45,0 55,0 7,0 8,0 5,0 RSC 0450 0550 070 C0
46,0 54,0 7,0 8,0 4,5 RSC 0460 0540 070 C0
46,0 54,0 7,5 8,5 4,5 RSC 0460 0540 075 C0
46,0 54,0 8,0 9,0 4,5 RSC 0460 0540 080 CO
50,0 58,0 8,0 9,0 4,5 RSC 0500 0580 080 C0
50,0 58,0 9,0 10,0 4,5 RSC 0500 0580 090 CO
* 50,0 60,0 7,0 8,0 5,0 RSC 0500 0600 070 C0
50,0 60,0 8,0 9,0 5,0 RSC 0500 0600 080 CO
50,0 60,0 10,0 11,0 5,0 RSC 0500 0600 100 C0
50,0 60,0 11,0 12,0 5,0 RSC 0500 0600 110 CO
50,0 62,0 8,0 9,0 5,5 RSC 0500 0620 080 CO
55,0 63,0 8,0 9,0 4,5 RSC 0550 0630 080 C0
55,0 65,0 7,0 8,0 5,0 RSC 0550 0650 070 C0
55,0 65,0 11,0 12,0 5,0 RSC 0550 0650 110 CO
56,0 66,0 10,0 11,0 5,0 RSC 0560 0660 100 C0
56,0 66,0 11,0 12,0 5,0 RSC 0560 0660 110 CO
* 56,0 71,0 11,5 12,5 6,0 RSC 0560 0710 115 C0
56,0 71,0 12,5 13,5 6,0 RSC 0560 0710 125 C0
60,0 68,0 8,0 9,0 5,0 RSC 0600 0680 080 C0
60,0 68,0 9,0 10,0 4,5 RSC 0600 0680 090 CO
60,0 70,0 7,0 8,0 5,5 RSC 0600 0700 070 C0
60,0 70,0 7,5 8,5 5,5 RSC 0600 0700 075 C0
60,0 70,0 8,0 9,0 5,0 RSC 0600 0700 080 CO
60,0 70,0 8,5 9,5 5,0 RSC 0600 0700 085 CO
60,0 70,0 10,0 11,0 5,5 RSC 0600 0700 100 C0
60,0 70,0 11,0 12,0 5,0 RSC 0600 0700 110 CO
60,0 70,0 12,0 13,0 5,5 RSC 0600 0700 120 C0
60,0 70,0 13,0 14,0 5,0 RSC 0600 0700 130 CO
60,0 72,0 8,0 9,0 5,5 RSC 0600 0720 080 C0
60,0 72,0 9,0 10,0 5,5 RSC 0600 0720 090 C0
63,0 71,0 8,0 9,0 5,0 RSC 0630 0710 080 C0
65,0 73,0 8,0 9,0 5,0 RSC 0650 0730 080 C0
65,0 73,0 9,0 10,0 4,5 RSC 0650 0730 090 CO
65,0 75,0 12,0 13,0 5,0 RSC 0650 0750 120 CO
70,0 78,0 8,0 9,0 5,0 RSC 0700 0780 080 C0
70,0 78,0 9,0 10,0 4,5 RSC 0700 0780 090 CO
* 70,0 80,0 6,5 7,5 5,5 RSC 0700 0800 065 C0
70,0 80,0 7,0 8,0 5,5 RSC 0700 0800 070 C0
70,0 80,0 7,5 8,5 5,0 RSC 0700 0800 075 CO
70,0 80,0 8,0 9,0 5,0 RSC 0700 0800 080 CO
70,0 80,0 12,0 13,0 5,5 RSC 0700 0800 120 C0
70,0 80,0 13,0 14,0 5,0 RSC 0700 0800 130 CO
70,0 82,0 9,5 10,5 6,0 RSC 0700 0820 095 C0
70,0 82,0 10,5 11,5 6,0 RSC 0700 0820 105 CO
* 70,0 85,0 11,5 12,5 6,0 RSC 0700 0850 115 C0
70,0 85,0 12,5 13,5 6,5 RSC 0700 0850 125 CO
75,0 83,0 8,0 9,0 5,0 RSC 0750 0830 080 C0
75,0 83,0 9,0 10,0 4,5 RSC 0750 0830 090 CO
75,0 85,0 7,0 8,0 5,5 RSC 0750 0850 070 C0
75,0 85,0 8,0 9,0 5,0 RSC 0750 0850 080 CO
76,0 84,0 8,0 9,0 5,0 RSC 0760 0840 080 C0
76,0 84,0 9,0 10,0 4,5 RSC 0760 0840 090 CO
80,0 88,0 8,0 9,0 5,0 RSC 0800 0880 080 C0
80,0 88,0 9,0 10,0 4,5 RSC 0800 0880 090 CO
80,0 90,0 7,0 8,0 5,5 RSC 0800 0900 070 C0
80,0 90,0 8,0 9,0 5,0 RSC 0800 0900 080 CO
80,0 90,0 12,0 13,0 5,0 RSC 0800 0900 120 CO
* 80,0 95,0 11,5 12,5 6,5 RSC 0800 0950 115 C0
80,0 95,0 12,5 13,5 6,5 RSC 0800 0950 125 CO
85,0 93,0 8,0 9,0 5,5 RSC 0850 0930 080 C0
85,0 93,0 9,0 10,0 4,5 RSC 0850 0930 090 CO
90,0 98,0 8,0 9,0 5,5 RSC 0900 0980 080 C0
90,0 98,0 9,0 10,0 4,5 RSC 0900 0980 090 CO

* in accordance with norms ISO 6195
