RSD ROD SEAL
DESCRIPTION

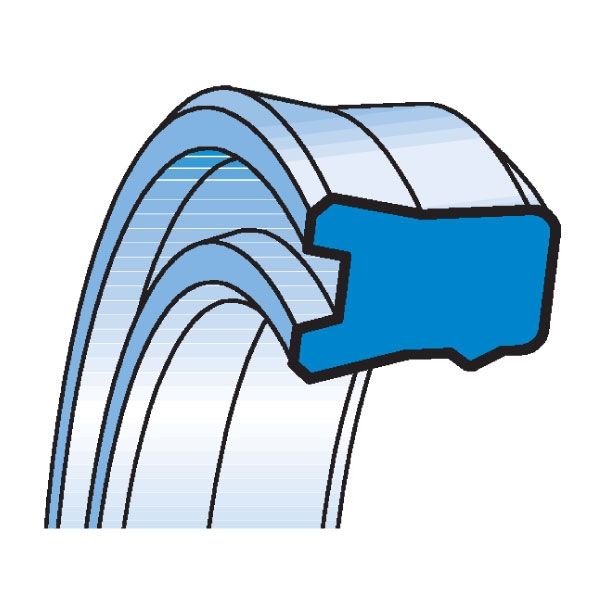

The RSD rod seal type is very similar to the RSC type, but on the dynamic side it has a multifunctional double lip which:
– mitigates any stick-slip effect thanks to a fluid ring between the secondary lip and the main one;
– blocks any external impurities;
– counters the shrinking of the material at low temperatures;
– works as a stabilizer;
TECHNICAL DATA
RSD Rod Seal
Pressure: <400 bar at a temperature of 60°C
Speed: <0.5 m/s
Temperature: from -35°C to +100°C with peaks till 110°C
Fluids: mineral fluids and oils
MATERIAL
The proposed material is a C0 -type polyurethane with high modulus of elasticity, low compression set, high resistance to abrasion. The hardness is 93 Sh A ± 2. Compound reference: C0
ASSEMBLY
To avoid any damage to the seals during the installation, remove any flash or cutting edges in the housing and on the rod. The seal should be lubricated during assembly to ease the insertion of the rod.

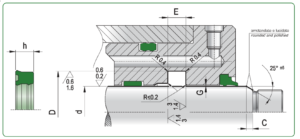

Drawing RSD Rod Seal
Atricles RSD Rod Seal
| dh9 | Dh10 | h | E+0,2 | C | ART / ITEM |
| * | 6,0 | 14,0 | 5,8 | 6,3 | 3,5 | RSD | 0060 | 0140 | 058 | C0 |
| * | 8,0 | 14,0 | 5,7 | 6,3 | 3,5 | RSD | 0080 | 0140 | 057 | C0 |
| * | 8,0 | 16,0 | 5,8 | 6,3 | 3,5 | RSD | 0080 | 0160 | 058 | C0 |
| * | 10,0 | 18,0 | 5,8 | 6,3 | 3,5 | RSD | 0100 | 0180 | 058 | C0 |
| 12,0 | 19,0 | 5,0 | 5,6 | 3,5 | RSD | 0120 | 0190 | 050 | C0 | |
| * | 12,0 | 20,0 | 5,8 | 6,3 | 4,5 | RSD | 0120 | 0200 | 058 | C0 |
| 14,0 | 21,0 | 5,0 | 5,6 | 4,0 | RSD | 0140 | 0210 | 050 | C0 | |
| 14,0 | 22,0 | 5,8 | 6,3 | 4,5 | RSD | 0140 | 0220 | 058 | C0 | |
| 15,0 | 23,0 | 6,0 | 7,0 | 4,5 | RSD | 0150 | 0230 | 060 | C0 | |
| 16,0 | 22,0 | 5,0 | 5,6 | 3,5 | RSD | 0160 | 0220 | 050 | C0 | |
| * | 16,0 | 24,0 | 5,8 | 6,3 | 4,5 | RSD | 0160 | 0240 | 058 | C0 |
| 18,0 | 22,0 | 4,0 | 4,5 | 3,0 | RSD | 0180 | 0220 | 040 | C0 | |
| 18,0 | 25,0 | 5,0 | 5,7 | 4,0 | RSD | 0180 | 0250 | 050 | C0 | |
| * | 18,0 | 26,0 | 5,8 | 6,3 | 4,5 | RSD | 0180 | 0260 | 058 | C0 |
| 18,0 | 26,0 | 8,0 | 9,0 | 4,5 | RSD | 0180 | 0260 | 080 | C0 | |
| 20,0 | 26,0 | 5,2 | 6,0 | 3,5 | RSD | 0200 | 0260 | 052 | C0 | |
| * | 20,0 | 28,0 | 5,8 | 6,3 | 4,5 | RSD | 0200 | 0280 | 058 | C0 |
| * | 20,0 | 30,0 | 7,0 | 8,0 | 5,0 | RSD | 0200 | 0300 | 070 | C0 |
| 22,0 | 28,0 | 4,5 | 5,5 | 3,5 | RSD | 0220 | 0280 | 045 | C0 | |
| 22,0 | 28,0 | 5,8 | 6,3 | 3,5 | RSD | 0220 | 0280 | 058 | C0 | |
| 22,0 | 29,0 | 5,0 | 5,6 | 4,0 | RSD | 0220 | 0290 | 050 | C0 | |
| * | 22,0 | 30,0 | 5,8 | 6,3 | 4,5 | RSD | 0220 | 0300 | 058 | C0 |
| 24,0 | 32,0 | 5,8 | 6,3 | 4,5 | RSD | 0240 | 0320 | 058 | C0 | |
| 25,0 | 31,0 | 5,0 | 5,6 | 3,5 | RSD | 0250 | 0310 | 050 | C0 | |
| * | 25,0 | 33,0 | 5,8 | 6,3 | 4,5 | RSD | 0250 | 0330 | 058 | C0 |
| 25,0 | 33,0 | 6,5 | 7,5 | 4,5 | RSD | 0250 | 0330 | 065 | C0 | |
| 25,0 | 33,0 | 7,0 | 8,0 | 4,5 | RSD | 0250 | 0330 | 070 | C0 | |
| * | 25,0 | 35,0 | 7,0 | 8,0 | 5,0 | RSD | 0250 | 0350 | 070 | C0 |
| 25,0 | 35,0 | 8,0 | 9,0 | 5,0 | RSD | 0250 | 0350 | 080 | C0 | |
| * | 28,0 | 36,0 | 5,8 | 6,3 | 4,5 | RSD | 0280 | 0360 | 058 | C0 |
| * | 28,0 | 38,0 | 5,8 | 6,3 | 5,0 | RSD | 0280 | 0380 | 058 | C0 |
| * | 28,0 | 38,0 | 7,0 | 8,0 | 5,0 | RSD | 0280 | 0380 | 070 | C0 |
| 30,0 | 38,0 | 5,8 | 6,3 | 4,5 | RSD | 0300 | 0380 | 058 | C0 | |
| 30,0 | 38,0 | 7,0 | 8,0 | 4,5 | RSD | 0300 | 0380 | 070 | C0 | |
| 30,0 | 38,0 | 8,0 | 9,0 | 4,5 | RSD | 0300 | 0380 | 080 | C0 | |
| 30,0 | 40,0 | 6,5 | 7,5 | 5,0 | RSD | 0300 | 0400 | 065 | C0 | |
| 30,0 | 40,0 | 10,0 | 11,0 | 5,0 | RSD | 0300 | 0400 | 100 | C0 | |
| 32,0 | 40,0 | 5,8 | 6,3 | 4,5 | RSD | 0320 | 0400 | 058 | C0 | |
| 32,0 | 40,0 | 6,0 | 7,0 | 4,5 | RSD | 0320 | 0400 | 060 | C0 | |
| 32,0 | 40,0 | 8,0 | 9,0 | 4,5 | RSD | 0320 | 0400 | 080 | C0 | |
| * | 32,0 | 42,0 | 7,0 | 8,0 | 4,5 | RSD | 0320 | 0420 | 070 | C0 |
| 32,0 | 42,0 | 8,0 | 9,0 | 5,0 | RSD | 0320 | 0420 | 080 | C0 | |
| 32,0 | 42,0 | 10,0 | 11,0 | 5,0 | RSD | 0320 | 0420 | 100 | C0 | |
| 32,0 | 45,0 | 8,0 | 9,0 | 7,0 | RSD | 0320 | 0450 | 080 | CO | |
| 35,0 | 43,0 | 5,8 | 6,3 | 4,5 | RSD | 0350 | 0430 | 058 | C0 | |
| 35,0 | 43,0 | 6,0 | 7,0 | 4,5 | RSD | 0350 | 0430 | 060 | C0 | |
| 35,0 | 43,0 | 8,0 | 9,0 | 4,5 | RSD | 0350 | 0430 | 080 | C0 | |
| 35,0 | 45,0 | 7,0 | 8,0 | 5,0 | RSD | 0350 | 0450 | 070 | C0 | |
| 35,0 | 45,0 | 10,0 | 11,0 | 5,0 | RSD | 0350 | 0450 | 100 | C0 | |
| * | 36,0 | 44,0 | 5,8 | 6,3 | 4,5 | RSD | 0360 | 0440 | 058 | C0 |
| 36,0 | 44,0 | 8,0 | 9,0 | 4,5 | RSD | 0360 | 0440 | 080 | C0 | |
| 40,0 | 48,0 | 5,8 | 6,3 | 4,5 | RSD | 0400 | 0480 | 058 | C0 | |
| 40,0 | 48,0 | 8,0 | 9,0 | 4,5 | RSD | 0400 | 0480 | 080 | C0 | |
| * | 40,0 | 50,0 | 7,0 | 8,0 | 5,0 | RSD | 0400 | 0500 | 070 | C0 |
| 40,0 | 50,0 | 10,0 | 11,0 | 5,0 | RSD | 0400 | 0500 | 100 | C0 | |
| 40,0 | 55,0 | 10,0 | 11,0 | 6,5 | RSD | 0400 | 0550 | 100 | C0 | |
| 42,0 | 50,0 | 6,0 | 7,0 | 4,5 | RSD | 0420 | 0500 | 060 | C0 | |
| 42,0 | 52,0 | 8,0 | 9,0 | 5,0 | RSD | 0420 | 0520 | 080 | C0 | |
| * | 45,0 | 53,0 | 5,8 | 6,3 | 4,5 | RSD | 0450 | 0530 | 058 | C0 |
| 45,0 | 53,0 | 8,0 | 9,0 | 4,5 | RSD | 0450 | 0530 | 080 | C0 | |
| 45,0 | 53,0 | 10,0 | 11,0 | 4,5 | RSD | 0450 | 0530 | 100 | CO | |
| * | 45,0 | 55,0 | 5,7 | 6,3 | 5,0 | RSD | 0450 | 0550 | 057 | C0 |
| * | 45,0 | 55,0 | 7,0 | 8,0 | 5,0 | RSD | 0450 | 0550 | 070 | C0 |
| 45,0 | 55,0 | 10,0 | 11,0 | 5,0 | RSD | 0450 | 0550 | 100 | C0 | |
| 46,0 | 54,0 | 8,0 | 9,0 | 4,5 | RSD | 0460 | 0540 | 080 | C0 | |
| 50,0 | 58,0 | 8,0 | 9,0 | 4,5 | RSD | 0500 | 0580 | 080 | C0 | |
| * | 50,0 | 60,0 | 7,0 | 8,0 | 5,0 | RSD | 0500 | 0600 | 070 | C0 |
| 50,0 | 60,0 | 9,0 | 10,0 | 5,0 | RSD | 0500 | 0600 | 090 | C0 | |
| 50,0 | 60,0 | 10,0 | 11,0 | 5,0 | RSD | 0500 | 0600 | 100 | C0 | |
| 50,0 | 65,0 | 8,0 | 9,0 | 6,5 | RSD | 0500 | 0650 | 080 | CO | |
| 50,0 | 65,0 | 10,0 | 11,0 | 6,5 | RSD | 0500 | 0650 | 100 | C0 | |
| 55,0 | 63,0 | 8,0 | 9,0 | 4,5 | RSD | 0550 | 0630 | 080 | C0 | |
| 55,0 | 65,0 | 7,0 | 8,0 | 5,0 | RSD | 0550 | 0650 | 070 | C0 | |
| 55,0 | 65,0 | 10,0 | 11,0 | 5,0 | RSD | 0550 | 0650 | 100 | C0 | |
| 56,0 | 64,0 | 8,0 | 9,0 | 4,5 | RSD | 0560 | 0640 | 080 | C0 | |
| 56,0 | 66,0 | 6,5 | 7,5 | 5,0 | RSD | 0560 | 0660 | 065 | C0 | |
| * | 56,0 | 71,0 | 11,5 | 12,5 | 6,5 | RSD | 0560 | 0710 | 115 | C0 |
| 60,0 | 68,0 | 8,0 | 9,0 | 4,5 | RSD | 0600 | 0680 | 080 | C0 | |
| 60,0 | 70,0 | 7,0 | 8,0 | 5,5 | RSD | 0600 | 0700 | 070 | C0 | |
| 60,0 | 70,0 | 7,5 | 8,5 | 5,5 | RSD | 0600 | 0700 | 075 | C0 | |
| 60,0 | 70,0 | 10,0 | 11,0 | 5,5 | RSD | 0600 | 0700 | 100 | C0 | |
| 60,0 | 70,0 | 12,0 | 13,0 | 5,5 | RSD | 0600 | 0700 | 120 | C0 | |
| 60,0 | 72,0 | 9,0 | 10,0 | 6,0 | RSD | 0600 | 0720 | 090 | C0 | |
| 61,0 | 69,0 | 8,0 | 9,0 | 4,5 | RSD | 0610 | 0690 | 080 | C0 | |
| 63,0 | 71,0 | 8,0 | 9,0 | 4,5 | RSD | 0630 | 0710 | 080 | C0 | |
| 65,0 | 73,0 | 8,0 | 9,0 | 4,5 | RSD | 0650 | 0730 | 080 | C0 | |
| 65,0 | 75,0 | 12,0 | 13,0 | 5,0 | RSD | 0650 | 0750 | 120 | CO | |
| 65,0 | 77,0 | 9,0 | 10,0 | 6,0 | RSD | 0650 | 0770 | 090 | C0 | |
| 68,0 | 76,0 | 8,0 | 9,0 | 4,5 | RSD | 0680 | 0760 | 080 | C0 | |
| 70,0 | 78,0 | 8,0 | 9,0 | 4,5 | RSD | 0700 | 0780 | 080 | C0 | |
| * | 70,0 | 80,0 | 6,5 | 7,5 | 5,5 | RSD | 0700 | 0800 | 065 | C0 |
| 70,0 | 80,0 | 7,0 | 8,0 | 5,0 | RSD | 0700 | 0800 | 070 | CO | |
| 70,0 | 80,0 | 12,0 | 13,0 | 5,5 | RSD | 0700 | 0800 | 120 | C0 | |
| 70,0 | 82,0 | 9,5 | 10,5 | 6,0 | RSD | 0700 | 0820 | 095 | C0 | |
| * | 70,0 | 85,0 | 11,5 | 12,5 | 6,5 | RSD | 0700 | 0850 | 115 | C0 |
| 75,0 | 83,0 | 8,0 | 9,0 | 4,5 | RSD | 0750 | 0830 | 080 | C0 | |
| 75,0 | 85,0 | 7,0 | 8,0 | 5,5 | RSD | 0750 | 0850 | 070 | C0 | |
| 75,0 | 85,0 | 12,0 | 13,0 | 5,5 | RSD | 0750 | 0850 | 120 | C0 | |
| 76,0 | 84,0 | 8,0 | 9,0 | 4,5 | RSD | 0760 | 0840 | 080 | C0 | |
| 76,0 | 86,0 | 8,0 | 9,0 | 5,0 | RSD | 0760 | 0860 | 080 | CO | |
| 78,0 | 86,0 | 8,0 | 9,0 | 4,5 | RSD | 0780 | 0860 | 080 | C0 | |
| 80,0 | 88,0 | 8,0 | 9,0 | 4,5 | RSD | 0800 | 0880 | 080 | C0 | |
| 80,0 | 90,0 | 12,0 | 13,0 | 5,0 | RSD | 0800 | 0900 | 120 | CO | |
| 80,0 | 92,0 | 9,0 | 10,0 | 6,0 | RSD | 0800 | 0920 | 090 | C0 | |
| * | 80,0 | 95,0 | 11,5 | 12,5 | 6,5 | RSD | 0800 | 0950 | 115 | C0 |
| 85,0 | 93,0 | 8,0 | 9,0 | 4,5 | RSD | 0850 | 0930 | 080 | C0 | |
| 85,0 | 95,0 | 12,0 | 13,0 | 5,5 | RSD | 0850 | 0950 | 120 | C0 | |
| 90,0 | 98,0 | 8,0 | 9,0 | 4,5 | RSD | 0900 | 0980 | 080 | C0 | |
| * | 90,0 | 100,0 | 6,5 | 7,5 | 5,5 | RSD | 0900 | 1000 | 065 | C0 |
| * | 90,0 | 105,0 | 11,5 | 12,5 | 6,5 | RSD | 0900 | 1050 | 115 | C0 |
| 91,0 | 99,0 | 8,0 | 9,0 | 4,5 | RSD | 0910 | 0990 | 080 | C0 | |
| 95,0 | 103,0 | 8,0 | 9,0 | 4,5 | RSD | 0950 | 1030 | 080 | C0 | |
| 100,0 | 108,0 | 6,5 | 7,5 | 4,5 | RSD | 1000 | 1080 | 065 | C0 | |
| 100,0 | 108,0 | 8,0 | 9,0 | 4,5 | RSD | 1000 | 1080 | 080 | C0 | |
| 105,0 | 113,0 | 8,0 | 9,0 | 4,5 | RSD | 1050 | 1130 | 080 | C0 | |
| 107,0 | 115,0 | 8,0 | 9,0 | 4,5 | RSD | 1070 | 1150 | 080 | C0 | |
| 108,0 | 116,0 | 8,0 | 9,0 | 4,5 | RSD | 1080 | 1160 | 080 | C0 | |
| * | 110,0 | 125,0 | 9,5 | 10,5 | 6,5 | RSD | 1100 | 1250 | 095 | C0 |
| 110,0 | 125,0 | 11,0 | 12,0 | 6,5 | RSD | 1100 | 1250 | 110 | CO | |
| 115,0 | 123,0 | 8,0 | 9,0 | 4,5 | RSD | 1150 | 1230 | 080 | C0 | |
| 115,0 | 130,0 | 11,3 | 12,0 | 6,5 | RSD | 1150 | 1300 | 113 | C0 | |
| 120,0 | 128,0 | 11,5 | 12,5 | 4,5 | RSD | 1200 | 1280 | 115 | CO | |
| 120,0 | 135,0 | 15,0 | 16,0 | 6,5 | RSD | 1200 | 1350 | 150 | C0 | |
| 125,0 | 133,0 | 8,0 | 9,0 | 4,5 | RSD | 1250 | 1330 | 080 | C0 | |
| 126,0 | 134,0 | 8,0 | 9,0 | 4,5 | RSD | 1260 | 1340 | 080 | C0 | |
| 130,0 | 145,0 | 15,0 | 16,0 | 6,5 | RSD | 1300 | 1450 | 150 | C0 | |
| 135,0 | 143,0 | 8,0 | 9,0 | 4,5 | RSD | 1350 | 1430 | 080 | C0 | |
| 135,0 | 150,0 | 11,5 | 12,5 | 6,5 | RSD | 1350 | 1500 | 115 | CO | |
| 140,0 | 150,0 | 11,5 | 12,5 | 5,0 | RSD | 1400 | 1500 | 115 | CO | |
| 145,0 | 153,0 | 8,0 | 9,0 | 4,5 | RSD | 1450 | 1530 | 080 | C0 |
* In accordance with norms ISO/DIN 5597 and ISO 5597/1
