Turcon AQ-Seals 5

Description

The Turcon AQ-Seal 5 is a patented development of the proven standard Turcon AQ-Seal. The seal profile of the Turcon ring has been redesigned on both the dynamic and static sealing surface. Two ORings are used to energize the seal instead of one.

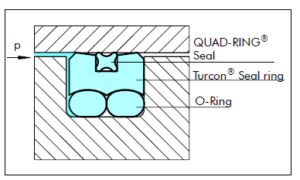

Busak Shamban Piston Seals Turcon AQ-seal 5 figuur 17

The AQ-Seal 5 combines the benefits of a low-friction Turcon slipper seal with the high sealing characteristics of an elastomeric seal by incorporating a limited foot print QUAD-RINGR Seal in the dynamic sealing face. This optimizes leakage control while minimizing friction.

The particular characteristics of the AQ-Seal 5 are the special seal profile with a defined seal edge and the use of two O-Rings as energizing elements to optimize the pressure profile and to reduce the force of attack at gas permeability

Advantages

  • High sealing effect in applications requiring media
    separation, e.g. fluid/fluid or fluid/gas
  • Double security through the combination of low-friction
    special materials with elastomer seals
  • Low gas permeation rate
  • Higher pressure application, higher sliding speed
    compared to the AQ-Seal
  • Outstanding sliding properties, no stick-slip effect

Application Examples

The Turcon AQ-Seal 5 is the recommended sealing element for double acting pistons of accumulators and positioning and holding cylinders for:

  • Machine tools
  • Presses
  • Rolling mills
  • Off shore
  • Accumulators
  • Heavy duty suspension cylinders

It is particularly recommended for heavy duty and large diameter applications.

Technical Data

Operating conditions

pressure:                  60 MPa
Speed:                       Up to 3 m/s

Temperature:           -30qC to +200qC *)
(depending on O-Ring and
QUAD-RINGR Seal material)
(For applications at low temperatures
below -30qC, please contact us).

Media:                        For all common hydraulic fluids,
including bio-oils and gases

Clearance:                  The maximum permissible radial
clearance Smax is shown in Table
as a function of the operating
pressure and functional diameter.

Important Note:

The above data are maximum values and cannot be used at the same time. e.g. the maximum operating speed depends on material type, pressure, temperature and gap value. Temperature range also dependent on medium.

In the case of unpressurized applications in temperatures below 0°C please contact our application engineers for assistance !

Materials

Standard Application:

For hydraulic components in mineral oils or medium with good lubricating performance.

Mineral oils and gases

TurconR Seal: TurconR T46

Energiser: O-Ring and QUAD-RING Seal in NBR
70 Shore A

Special Application:

For special applications requiring other material combinations, please contact your local Busak+Shamban Company

Busak Shamban Piston Seals Turcon AQ-Seal 5 Table XIV

Installation Recommendation

Busak Shamban Piston Seals Turcon AQ-Seal figuur 18

Busak Shamban Piston Seal AQ-Seal 5 Table XV

Ordering example

TurconRAQ-SealR5, complete with O-Ring and
QUAD-RINGR Seal, recommended range, Series PQ02

Bore diameter: DN = 80.0 mm
Part No. PQ0200800

Select the material from Table XIV. The corresponding code
numbers are appended to the Part No. Together they form the Order No. The Order No. can be determined from the example opposite

Busak Shamban Piston Seal AQ-Seal 5 Order



TURCON AQ-SEAL 5

Bore Diameter Groove Diameter Groove Width Part No. O-Ring Dimensions QUAD-RING®
Dimensions
DN  H9 d1   h9 L1   +0.2
40,0 30,0 6,3 PQ0100400 29.82 x 2.62 34.65 x 1.78
42,0 32,0 6,3 PQ0100420 31.42 x 2.62 37.82 x 1.78
45,0 35,0 6,3 PQ0100450 34.59 x 2.62 37.82 x 1.78
48,0 38,0 6,3 PQ0100480 37.77 x 2.62 41.00 x 1.78
50,0 40,0 6,3 PQ0100500 39.34 x 2.62 44.17 x 1.78
52,0 42,0 6,3 PQ0100520 40.94 x 2.62 47.35 x 1.78
55,0 45,0 6,3 PQ0100550 44.12 x 2.62 50.52 x 1.78
60,0 50,0 6,3 PQ0100600 48.90 x 2.62 53.70 x 1.78
63,0 53,0 6,3 PQ0100630 52.07 x 2.62 56.87 x 1.78
65,0 55,0 6,3 PQ0100650 53.64 x 2.62 60.05 x 1.78
70,0 60,0 6,3 PQ0100700 58.42 x 2.62 63.22 x 1.78
75,0 65,0 6,3 PQ0100750 63.17 x 2.62 69.57 x 1.78
80,0 67,0 8,3 PQ0200800 66.27 x 3.53 71.12 x 2.62
85,0 72,0 8,3 PQ0200850 69.44 x 3.53 75.87 x 2.62
90,0 77,0 8,3 PQ0200900 75.79 x 3.53 82.22 x 2.62
95,0 82,0 8,3 PQ0200950 78.97 x 3.53 82.22 x 2.62
100,0 87,0 8,3 PQ0201000 85.32 x 3.53 88.57 x 2.62
105,0 92,0 8,3 PQ0201050 91.67 x 3.53 94.92 x 2.62
110,0 97,0 8,3 PQ0201100 94.84 x 3.53 101.27 x 2.62
115,0 102,0 8,3 PQ0201150 101.19 x 3.53 107.62 x 2.62
120,0 107,0 8,3 PQ0201200 104.37 x 3.53 107.62 x 2.62
125,0 112,0 8,3 PQ0201250 110.72 x 3.53 113.97 x 2.62
130,0 117,0 8,3 PQ0201300 113.89 x 3.53 120.32 x 2.62
135,0 117,0 12,3 PQ0301350 113.67 x 5.33 123.42 x 3.53
140,0 122,0 12,3 PQ0301400 120.02 x 5.33 126.60 x 3.53
150,0 132,0 12,3 PQ0301500 129.54 x 5.33 136.12 x 3.53
160,0 142,0 12,3 PQ0301600 139.07 x 5.33 145.65 x 3.53
170,0 152,0 12,3 PQ0301700 148.49 x 5.33 158.35 x 3.53
180,0 162,0 12,3 PQ0301800 158.12 x 5.33 164.70 x 3.53
190,0 172,0 12,3 PQ0301900 170.82 x 5.33 177.40 x 3.53
200,0 182,0 12,3 PQ0302000 177.17 x 5.33 183.75 x 3.53
210,0 192,0 12,3 PQ0302100 189.87 x 5.33 196.45 x 3.53
220,0 202,0 12,3 PQ0302200 196.22 x 5.33 202.80 x 3.53
230,0 212,0 12,3 PQ0302300 208.92 x 5.33 215.50 x 3.53
240,0 222,0 12,3 PQ0302400 221.62 x 5.33 221.85 x 3.53
250,0 232,0 12,3 PQ0302500 227.97 x 5.33 234.55 x 3.53
280,0 262,0 12,3 PQ0302800 253.37 x 5.33 266.29 x 3.53
300,0 282,0 12,3 PQ0303000 278.77 x 5.33 278.99 x 3.53
320,0 302,0 12,3 PQ0303200 291.47 x 5.33 304.39 x 3.53
350,0 332,0 12,3 PQ0303500 329.57 x 5.33 329.79 x 3.53
400,0 382,0 12,3 PQ0304000 380.37 x 5.33 380.59 x 3.53
420,0 402,0 12,3 PQ0304200 405.26 x 5.33 380.59 x 3.53
450,0 432,0 12,3 PQ0304500 430.66 x 5.33 430.66 x 3.53
480,0 449,0 16,3 PQ0404800 443.36 x 7.0 456.06 x 5.33
500,0 469,0 16,3 PQ0405000 468.76 x 7.0 456.06 x 5.33
600,0 569,0 16,3 PQ0406000 557.66 x 7.0 557.58 x 5.33
700,0 669,0 16,3 PQ0407000 658.88 x 7.0 658.88 x 5.33
