Turcon Glyd Ring

Description

Successfully used for decades, the Turcon Glyd Ring is a very effective and reliable low frictional seal. It is particularly suitable as a piston seal in both high and low pressure systems.

The double acting Turcon Glyd Ring is a combination of a Turcon based slipper seal and an energising O-Ring. It is produced with an interference fit which together with the squeeze of the O-Ring ensures a good sealing effect even at low pressure. At higher system pressures, the O-Ring is energised by the fluid, pushing the Turcon Glyd Ring against the sealing face with increased force.

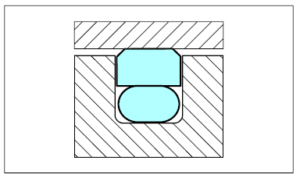

Busak Shamban Piston Seals Turcon glyd ring Figure 11

The geometry of the Turcon Glyd Ring ensures a good static sealing and allows the lubricating hydrodynamic oil film to be build under the seal in reciprocating applications.

Notches

To assure that a rapid energising of the seal takes place at sudden changes of pressure and direction of motion, radial ”notches” are machined on both sides of the seal.

Busak Shamban Piston Seals Turcon glyd ring Figure 12



Advantages

  • No stick-slip effect when starting for smooth operation
  • Minimum static and dynamic friction coefficient for a
    minimum energy loss and operating temperature
  • Suitable for non lubricating fluids depending on seal
    material for optimum design flexibility
  • High wear resistance ensures long service life
  • Installation grooves acc. to ISO 7425/1
  • No adhesive effect to the mating surface during long
    period of inactivity or storage
  • Suitable for most hydraulic fluids in relation with most
    modern hardware materials and surface finish
  • depending on material selected.
    Suitable for new environmentally safe hydraulic fluids
  • Available for all cylinder diameters up to 2.700 mm.



Application Examples

Over several decades the Turcon Glyd Ring has been successfully implemented in a lot of applications as double acting Piston seals of hydraulic components such as:

  • Injection moulding machines
  • Machine tools
  • Presses
  • Excavators
  • Forklifts & handling machinery
  • Agriculture equipment
  • Valves for hydraulic & pneumatic circuits.



Technical Data

Operating conditions: The TurconR Glyd RingR is recommended for reciprocating (with a length of stroke at least twice the groove width) and helical movements.

  • Pressure:               up to 80MPa
  • Speed:                    up to 15m/s
  • Frequency:            up to 5 Hz.
  • Temperature:        -45°C to +200°C * (depending on O-Ring Material



Media:

Mineral oil based hydraulic fluids, barely flammable hydraulic fluids, environmentally safe hydraulic fluids (biological degradable oils), water, air and others. Depending on the O-Ring material compatibility.

Clearance:

the maximum permissible radial clearance Smax is shown in the table IX, as a function of the operating pressure and functional diameter.

Important Note:
The above data are maximum values and cannot be used at the same time. e.g. the maximum operating speed depends on material type, pressure, temperature and gap value.
Temperature range also dependent on medium.

*) In the case of unpressurized applications in temperatures below 0°C please contact our application engineers for assistance !



Materials

Standard Application:

For hydraulic components in mineral oils containing zinc or medium with good lubricating performance.

Turcon seal:                 Turcon T 46

Energiser:                    O-Ring NBR 70 shore A or FKM 70
Shore A depending on the
temperature

Set reference.              T46N or T46V

Special Application:

Short stroke movements, non-lubricating fluids or pneumatic applications require self-lubricating sealing materials. Therefore we recommend:

Turcon Seal:                    Turcon T29

Energiser:                        O-Ring NBR 70 Shore A or FKM 70
Shore A depending on the
temperature

Set reference:                 T29N or T29V

If low friction coefficient is required, we recommend:

Turcon Seal:                      Turcon T 05

Energiser:                          O-Ring NBR 70 Shore A or FKM 70
Shore A depending on the
temperature.
For special requirements other
elastomers are available on request

Set reference:                    T05N or T05V

If rougher surface finish must be sealed, we recommend:

Zurcon Seal:                      ZurconR Z51
Energiser:                          O-Ring NBR 70 Shore A
Set reference:                    Z51N



Installation Recommendations

Busak Shamban Piston Seals Turcon glyd ring Figure 13



Installation Dimension

Busak Shamban Piston Seals Turcon glyd ring tabel



Ordering Example

TurconR Glyd RingR, complete with O-Ring, standard
application, Series PG44 (from Table IX ).
Bore diameter:                        DN = 80.0 mm
Part No.:                                   PG4400800 (from Table X)

Select the material from Table VIII. The corresponding code numbers are appended to the Part No. Preferred
Series (Table X). Together they formthe order number. The order number for all intermediate sizes not shown in Preferred Series (Table X) can be determined following the example opposite.       ** For diameters DN 􀁴 1000.0 mm multiply only by factor 1. Example: PG44 for diameter DN 1200.0 mm. Order no.: PG44X1200 – T4

Busak Shamban Piston Seals Turcon glyd ring Order



Articals Turcon glyd ring piston seals hydraulic

Bore Dia. Groove Dia. Groove Width Part No. O-Ring Dimensions
DN H9 d1 h9 L1 +0.2
8,0 3,1 2,2 PG4400080 2.90 x 1.78
10,0 5,1 2,2 PG4400100 4.80 x 1.8
12,0 7,1 2,2 PG4400120 6.70 x 1.8
14,0 9,1 2,2 PG4400140 8.75 x 1.8
15,0 7,5 3,2 PG4400150 7.59 x 2.62
16,0 11,1 2,2 PG4600160 10.82 x 1.78
16,0 8,5 3,2 PG4400160 7.59 x 2.62
18,0 13,1 2,2 PG4600180 12.42 x 1.78
18,0 10,5 3,2 PG4400180 9.19 x 2.62
19,05 11,55 3,2 PG4400190 10.77 x 2.62
20,0 15,1 2,2 PG4600200 14.00 x 1.78
20,0 12,5 3,2 PG4400200 12.37 x 2.62
21,0 13,5 3,2 PG4400210 12.37 x 2.62
22,0 17,1 2,2 PG4600220 17.17 x 1.78
22,0 14,5 3,2 PG4400220 13.94 x 2.62
24,0 16,5 3,2 PG4400240 15.54 x 2.62
25,0 20,1 2,2 PG4600250 18.77 x 1.78
25,0 17,5 3,2 PG4400250 17.12 x 2.62
25,0 14,0 4,2 PG4200250 13.87 x 3.53
25,4 20,5 2,2 PG4600254 17.12 x 2.62
28,0 20,5 3,2 PG4400280 20.29 x 2.62
30,0 22,5 3,2 PG4400300 21.89 x 2.62
32,0 27,1 2,2 PG4600320 26.70 x 1.78
32,0 24,5 3,2 PG4400320 23.47 x 2.62
32,0 21,0 4,2 PG4200320 20.22 x 3.53
35,0 27,5 3,2 PG4400350 26.64 x 2.62
35,0 24,0 4,2 PG4200350 23.40 x 3.53
36,0 28,5 3,2 PG4400360 28.24 x 2.62
38,0 30,5 3,2 PG4400380 29.82 x 2.62
40,0 32,5 3,2 PG4600400 31.42 x 2.62
40,0 29,0 4,2 PG4400400 28.17 x 3.53
42,0 31,0 4,2 PG4400420 29.75 x 3.53
44,45 36,95 3,2 PG4600444 36.17 x 2.62
45,0 34,0 4,2 PG4400450 32.92 x 3.53
48,0 37,0 4,2 PG4400480 36.09 x 3.53
50,0 42,5 3,2 PG4600500 40.94 x 2.62
50,0 39,0 4,2 PG4400500 37.70 x 3.53
50,0 34,5 6,3 PG4200500 32.69 x 5.33
50,8 43,3 3,2 PG4600508 42.52 x 2.62
50,8 39,8 4,2 PG4400508 37.70 x 3.53
52,0 41,0 4,2 PG4400520 40.87 x 3.53
53,0 42,0 4,2 PG4400530 40.87 x 3.53
55,0 44,0 4,2 PG4400550 44.04 x 3.53
57,0 46,0 4,2 PG4400570 44.04 x 3.53
58,0 47,0 4,2 PG4400580 47.22 x 3.53
60,0 49,0 4,2 PG4400600 47.22 x 3.53
62,0 51,0 4,2 PG4400620 50.39 x 3.53
63,0 52,0 4,2 PG4400630 50.39 x 3.53
63,0 47,5 6,3 PG4200630 46.99 x 5.33
65,0 54,0 4,2 PG4400650 53.57 x 3.53
68,0 57,0 4,2 PG4400680 56.74 x 3.53
70,0 59,0 4,2 PG4400700 56.74 x 3.53
70,0 54,5 6,3 PG4200700 53.34 x 5.33
75,0 64,0 4,2 PG4400750 63.09 x 3.53
75,0 59,5 6,3 PG4200750 56.52 x 5.33
80,0 69,0 4,2 PG4600800 66.27 x 3.53
80,0 64,5 6,3 PG4400800 62.87 x 5.33
80,0 59,0 8,1 PG4200800 58 x 7.0
82,5 67,0 6,3 PG4400825 66.04 x 5.33
85,0 69,5 6,3 PG4400850 69.22 x 5.33
85,0 64,0 8,1 PG4200850 63 x 7.0
90,0 79,0 4,2 PG4600900 78.97 x 3.53
90,0 74,5 6,3 PG4400900 72.39 x 5.33
90,0 69,0 8,1 PG4200900 68 x 7.0
95,0 84,0 4,2 PG4600950 82.14 x 3.53
95,0 79,5 6,3 PG4400950 78.74 x 5.33
95,0 74,0 8,1 PG4200950 73 x 7.0
100,0 89,0 4,2 PG4601000 88.49 x 3.53
100,0 84,5 6,3 PG4401000 81.92 x 5.33
100,0 79,0 8,1 PG4201000 78 x 7.0
101,6 86,1 6,3 PG4401016 85.09 x 5.33
105,0 94,0 4,2 PG4601050 91.67 x 3.53
105,0 89,5 6,3 PG4401050 88.27 x 5.33
108,0 92,5 6,3 PG4401080 91.44 x 5.33
110,0 99,0 4,2 PG4601100 98.02 x 3.53
110,0 94,5 6,3 PG4401100 91.44 x 5.33
110,0 89,0 8,1 PG4201100 88 x 7.0
115,0 99,5 6,3 PG4401150 97.79 x 5.33
120,0 109,0 4,2 PG4601200 107.54 x 3.53
120,0 104,5 6,3 PG4401200 100.97 x 5.33
120,0 99,0 8,1 PG4201200 98 x 7.0
125,0 114,0 4,2 PG4601250 113.89 x 3.53
125,0 109,5 6,3 PG4401250 107.32 x 5.33
125,0 104,0 8,1 PG4201250 103 x 7.0
127,0 111,5 6,3 PG4401270 110.49 x 5.33
130,0 114,5 6,3 PG4401300 113.67 x 5.33
130,0 109,0 8,1 PG4201300 108 x 7.0
132,0 121,0 4,2 PG4601320 120.24 x 3.53
135,0 114,0 8,1 PG4401350 113.67 x 7.0
140,0 124,5 6,3 PG4601400 123.19 x 5.33
140,0 119,0 8,1 PG4401400 116.84 x 7.0
145,0 129,5 6,3 PG4601450 126.37 x 5.33
145,0 124,0 8,1 PG4401450 123.19 x 7.0
150,0 134,5 6,3 PG4601500 132.72 x 5.33
150,0 129,0 8,1 PG4401500 126.37 x 7.0
155,0 134,0 8,1 PG4401550 132.72 x 7.0
160,0 144,5 6,3 PG4601600 142.24 x 5.33
160,0 139,0 8,1 PG4401600 135.89 x 7.0
165,0 144,0 8,1 PG4401650 142.24 x 7.0
170,0 149,0 8,1 PG4401700 145.42 x 7.0
175,0 154,0 8,1 PG4401750 151.77 x 7.0
180,0 164,5 6,3 PG4601800 164.47 x 5.33
180,0 159,0 8,1 PG4401800 158.12 x 7.0
190,0 169,0 8,1 PG4401900 164.47 x 7.0
194,0 178,5 6,3 PG4601940 177.17 x 5.33
200,0 184,5 6,3 PG4602000 183.52 x 5.33
200,0 179,0 8,1 PG4402000 177.17 x 7.0
205,0 184,0 8,1 PG4402050 183.52 x 7.0
210,0 189,0 8,1 PG4402100 183.52 x 7.0
215,0 194,0 8,1 PG4402150 189.87 x 7.0
220,0 199,0 8,1 PG4402200 196.22 x 7.0
230,0 214,5 6,3 PG4602300 208.92 x 5.33
230,0 209,0 8,1 PG4402300 208.92 x 7.0
240,0 219,0 8,1 PG4402400 215.27 x 7.0
250,0 134,5 6,3 PG4602500 234.32 x 5.33
250,0 229,0 8,1 PG4402500 227.97 x 7.0
250,0 225,5 8,1 PG4202500 215.27 x 7.0
254,0 233,0 8,1 PG4402540 227.97 x 7.0
260,0 239,0 8,1 PG4402600 240.67 x 7.0
265,0 244,0 8,1 PG4402650 240.67 x 7.0
268,0 247,0 8,1 PG4402680 240.67 x 7.0
270,0 249,0 8,1 PG4402700 240.67 x 7.0
280,0 259,0 8,1 PG4402800 253.37 x 7.0
290,0 269,0 8,1 PG4402900 266.07 x 7.0
300,0 279,0 8,1 PG4403000 278.77 x 7.0
300,0 275,5 8,1 PG4203000 266.07 x 7.0
304,8 283,8 8,1 PG4403048 278.77 x 7.0
310,0 289,0 8,1 PG4403100 278.77 x 7.0
320,0 299,0 8,1 PG4403200 291.47 x 7.0
320,0 295,5 8,1 PG4203200 291.47 x 7.0
330,0 305,5 8,1 PG4403300 304.17 x 7.0
340,0 315,5 8,1 PG4403400 316.87 x 7.0
350,0 325,5 8,1 PG4403500 316.87 x 7.0
360,0 335,5 8,1 PG4403600 329.57 x 7.0
370,0 345,5 8,1 PG4403700 342.27 x 7.0
380,0 355,5 8,1 PG4403800 354.97 x 7.0
400,0 375,5 8,1 PG4404000 367.67 x 7.0
420,0 395,5 8,1 PG4404200 393.07 x 7.0
430,0 405,5 8,1 PG4404300 405.26 x 7.0
440,0 415,5 8,1 PG4404400 405.26 x 7.0
450,0 425,5 8,1 PG4404500 417.96 x 7.0
460,0 435,5 8,1 PG4404600 430.66 x 7.0
480,0 455,5 8,1 PG4404800 456.06 x 7.0
500,0 475,5 8,1 PG4405000 468.76 x 7.0
555,0 530,5 8,1 PG4405550 506.86 x 7.0
600,0 575,5 8,1 PG4406000 557.66 x 7.0
640,0 615,5 8,1 PG4406400 608.08 x 7.0
660,0 635,5 8,1 PG4406600 633.48 x 7.0
700,0 672,0 9,5 PG4407000 670 x 8.4
710,0 682,0 9,5 PG4407100 680 x 8.4
740,0 712,0 9,5 PG4407400 710 x 8.4
780,0 752,0 9,5 PG4407800 750 x 8.4
800,0 772,0 9,5 PG4408000 770 x 8.4
900,0 872,0 9,5 PG4409000 870 x 8.4
1000,0 972,0 9,5 PG46X1000 970 x 8.4
1000,0 962,0 13,8 PG44X1000 960 x 12.0
1050,0 1022,0 9,5 PG46X1050 1020 x 8.4
1065,0 1027,0 13,8 PG44X1065 1025 x 12.0
1070,0 1032,0 13,8 PG44X1070 1030 x 12.0
1200,0 1172,0 9,5 PG46X1200 1170 x 8.4
1200,0 1162,0 13,8 PG44X1200 1160 x 12.0
1225,0 1187,0 13,8 PG44X1225 1185 x 12.0
1500,0 1462,0 13,8 PG44X1500 1460 x 12.0
2000,0 1962,0 13,8 PG44X2000 1960 x 12.0
2700,0 2662,0 13,8 PG44X2700 2660 x 12.0
